Product Description
Art. no. 4103076

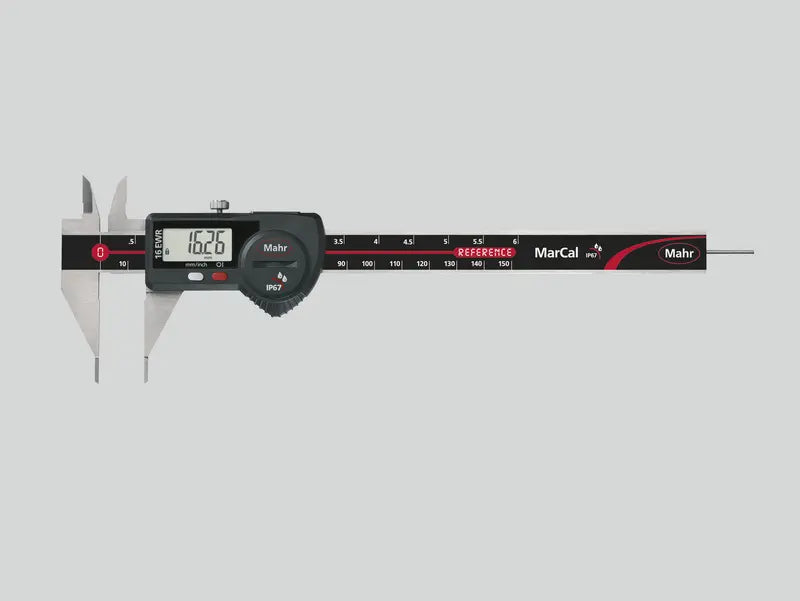

Digital special calipers MarCal 16 EWR-SM
Measuring range: 0 - 150 mm
Resolution mm/inch: 0.01 / .0005"
Data interface: USB, Opto RS-232C, Digimatic
IP protection category: IP 67
Package contains: battery, test certificate, instruction manual, case
- High contrast digit display
- Locking screw above
- Lapped guideway
- Measuring blade for inside measurements
- Slide and beam made of hardened stainless steel
- Step measuring function
- Immediate measurements due to the Reference System
- Raised guideway for the protection of the scale
- Excellent resistance against dust, coolants and lubricants
- Dirt wipers are integrated in the slide
Technical Specifications
| MarCal 16 EWR-SM | Art. no. 4103076 | |
|---|---|
| Measuring range | 0 - 150 |
| Measuring range | 0 - 6" |
| Resolution mm/inch | 0.01 / .0005" |
| Error limit (mm) | 0.03 mm |
| Error limit inches | .001" |
| Standard | Factory standard |
| Battery type | CR 2032 (3V Lithium) |
| Depth rod | round |
| Dimensions | a 10 mm | b 40 mm | c 16.5 mm | d 235 mm | e 16 mm | |
Variety of applications for our products
With pointed jaws e.g. for measuring distances between grooves
