Mahr Digital Calipers, MarCal 16 EWR-SA, Art. no. 4103077
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4103077

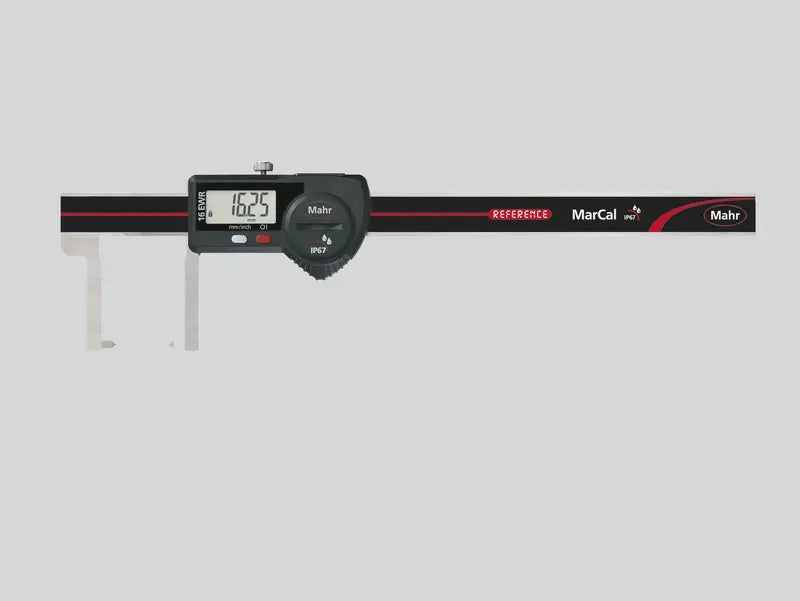

Digital special calipers MarCal 16 EWR-SA
Measuring range: 0 - 140 mm
Resolution mm/inch: 0.01 / .0005"
Data interface: USB, Opto RS-232C, Digimatic
IP protection category: IP 67
Package contains: battery, test certificate, instruction manual, case
- High contrast digit display
- Locking screw above
- Lapped guideway
- Slide and beam made of hardened stainless steel
- Immediate measurements due to the Reference System
- Raised guideway for the protection of the scale
- Excellent resistance against dust, coolants and lubricants
- Dirt wipers are integrated in the slide
Technical Specifications
|
MarCal 16 EWR-SA | Art. no. 4103077 |
|
|---|---|
|
Measuring range |
0 - 140 |
|
Measuring range |
0 - 6" |
|
Resolution mm/inch |
0.01 / .0005" |
|
Error limit (mm) |
0.03 mm |
|
Error limit inches |
.001" |
|
Standard |
Factory standard |
|
Battery type |
CR 2032 (3V Lithium) |
|
Depth rod |
none |
|
Dimensions |
b 40 mm | d 235 mm | e 16 mm | |
Variety of applications for our products
Inward-angled measuring tips for measuring wall thicknesses and recesses on shafts
