Mahr Digital Calipers, MarCal 16 EWR-LI, Art. no. 4103085
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4103085

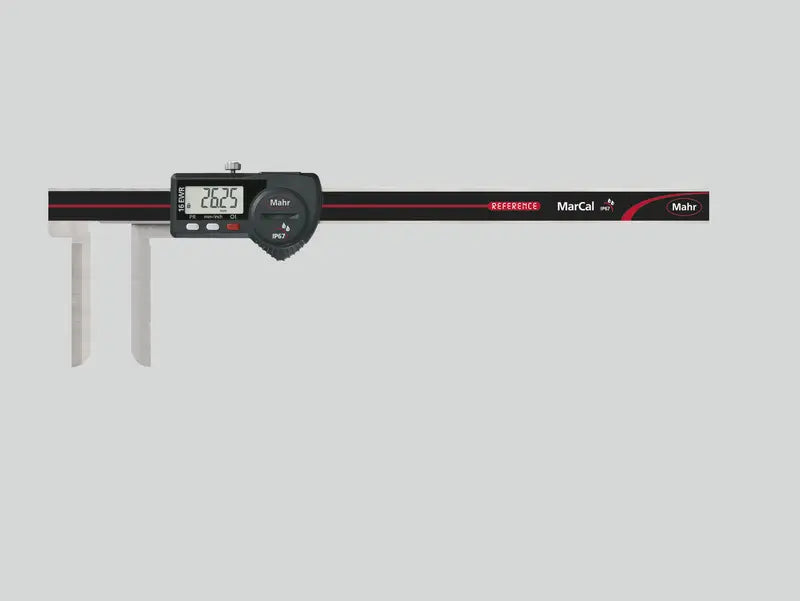

Digital special calipers MarCal 16 EWR-LI
Measuring range: 10 - 200 mm
Resolution mm/inch: 0.01 / .0005"
Data interface: USB, Opto RS-232C, Digimatic
IP protection category: IP 67
Package contains: battery, test certificate, instruction manual, case
- High contrast digit display
- Locking screw above
- Lapped guideway
- Measuring blade for inside measurements
- Slide and beam made of hardened stainless steel
- Immediate measurements due to the Reference System
- Raised guideway for the protection of the scale
- Excellent resistance against dust, coolants and lubricants
- Dirt wipers are integrated in the slide
Technical Specifications
| MarCal 16 EWR-LI | Art. no. 4103085 | |
|---|---|
| Measuring range | 10 - 200 |
| Measuring range | 0.4 - 8" |
| Resolution mm/inch | 0.01 / .0005" |
| Error limit (mm) | 0.05 mm |
| Error limit inches | .002" |
| Standard | Factory standard |
| Battery type | CR 2032 (3V Lithium) |
| Depth rod | none |
| Dimensions | b 60 mm | d 285 mm | e 16 mm | |
