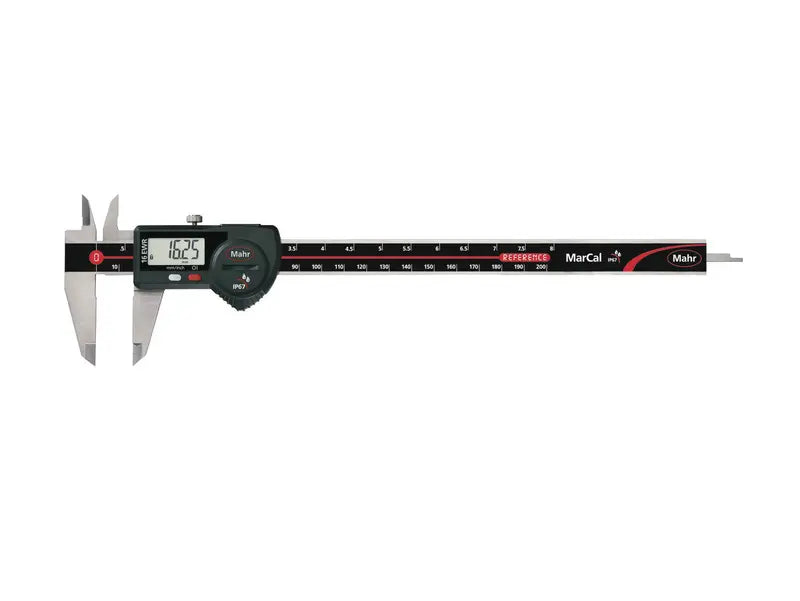

Mahr Digital Calipers, MarCal 16 EWR, Art. no. 4103068
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4103068
Digital caliper MarCal 16 EWR
Measuring range: 0 - 200 mm
Resolution mm/inch: 0.01 / .0005"
Depth rod: rectangular
Data interface: USB, Opto RS-232C, Digimatic
Friction wheel: false
IP protection category: IP 67
- High contrast digit display
- Locking screw above
- Lapped guideway
- Measuring blade for inside measurements
- Slide and beam made of hardened stainless steel
- Step measuring function
- Immediate measurements due to the Reference System
- Raised guideway for the protection of the scale
- Excellent resistance against dust, coolants and lubricants
- Dirt wipers are integrated in the slide
Technical Specifications
| MarCal 16 EWR | Art. no. 4103068 | |
|---|---|
| Measuring range | 0 - 200 |
| Measuring range | 0 - 8" |
| Resolution mm/inch | 0.01 / .0005" |
| Error limit (mm) | 0.03 mm |
| Error limit inches | .001" |
| Standard | ISO 13385-1 |
| Battery type | CR 2032 (3V Lithium) |
| Depth rod | rectangular |
| Dimensions | a 10 mm | b 50 mm | c 19 mm | d 285 mm | e 16 mm | |
