Mahr Analog Calipers, MarCal 18 NA, Art. no. 4112301
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4112301

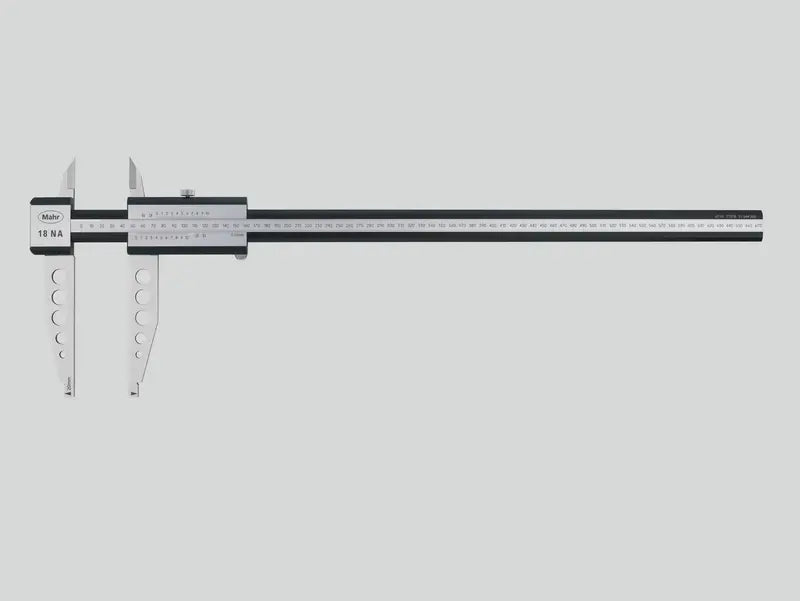

Workshop calipers MarCal 18 NA
Locking screw above
To reduce the overall weight the slide and beam are made from aluminum and are coated with a hard anodized surface coating (1100 HV) Measuring range: 0 - 500 mm
Readings mm: 0.02 mm
Package contains: up to 1000 mm delivered with a case, over 1000 mm individually packed
Product information
- To reduce the overall weight the slide and beam are made from aluminum and are coated with a hard anodized surface coating (1100 HV)
- Vernier and scale have a satin chrome finish for glare free reading
- Parallax free reading
- Locking screw above
- Prisma guideway for a more smooth and even movement
- Measuring surfaces made of steel
- Measuring blades for outside measurements
![]()
Technical Specifications
|
MarCal 18 NA | Art. no. 4112301 |
|
|---|---|
|
Measuring range |
0 - 500 mm |
|
Readings mm |
0.02 mm |
|
Error limit (mm) |
0.05 mm |
|
Standard |
Factory standard |
|
Dimensions |
a 726 mm | b 42 mm | c 150 mm | d 20.7 mm | e 15 mm | f 20 mm | g 31.9 mm | h 6 mm | i 29 mm |
