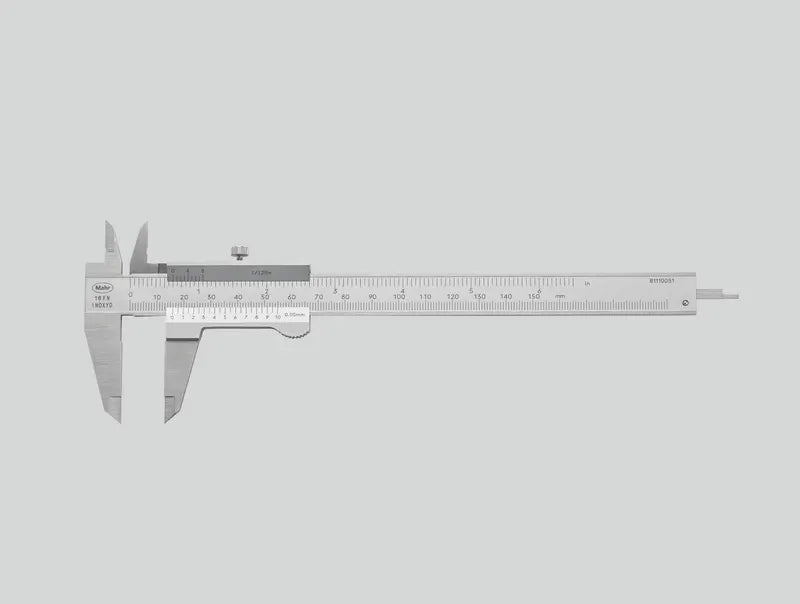

Mahr Analog Calipers, MarCal 16 FN, Art. no. 4100402
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4100402
Caliper with analog display
Locking screw above
Measuring range: 0 - 300 mm
Readings mm: 0.05 mm / 1/128"
Package contains: thread table, case
- Vernier and scale have a satin chrome finish for glare free reading
- Locking screw above
- Measuring surfaces made of steel
- Measuring blade for inside measurements
- Slide and beam made of hardened stainless steel
- Step measuring function
- Raised guideway for the protection of the scale
Technical Specifications
|
MarCal 16 FN | Art. no. 4100402 |
|
|---|---|
|
Measuring range |
0 - 300 mm |
|
Measuring range |
0 - 12" |
|
Readings mm |
0.05 mm |
|
Vernier value inch |
1/128" |
|
Error limit (mm) |
0.05 mm |
|
Error limit inches |
.002" |
|
Standard |
Factory standard |
|
Depth rod |
rectangular |
|
Dimensions |
a 16 mm | b 64 mm | c 23 mm | d 404 mm | e 20 mm | f 4.8 mm | |
Variety of applications for our products
With locking screw: Maintenance-free clamping of the slider thanks to knurled locking screw
