Mahr Analog Calipers, MarCal 16 DN, Art. no. 4100600
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4100600

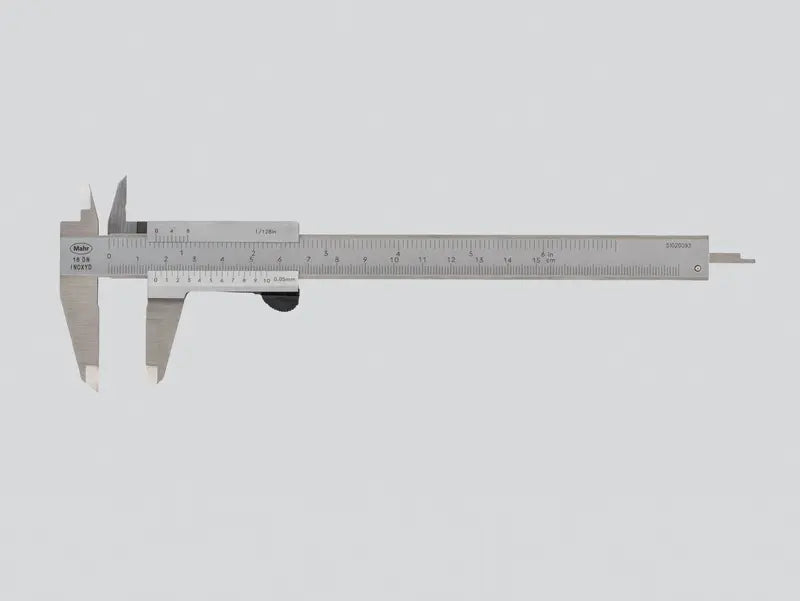

Caliper with analog display MarCal 16 DN
Thumb clamp
Measuring range: 0 - 150 mm
Readings mm: 0.05 mm / 1/128"
Package contains: thread table, case
- Vernier and scale have a satin chrome finish for glare free reading
- Thumb clamp
- Measuring surfaces made of steel
- Measuring blade for inside measurements
- Slide and beam made of hardened stainless steel
- Step measuring function
- Raised guideway for the protection of the scale
Technical Specifications
|
MarCal 16 DN | Art. no. 4100600 |
|
|---|---|
|
Measuring range |
0 - 150 mm |
|
Measuring range |
0 - 6" |
|
Readings mm |
0.05 mm |
|
Vernier value inch |
1/128" |
|
Error limit (mm) |
0.05 mm |
|
Error limit inches |
.002" |
|
Standard |
Factory standard |
|
Depth rod |
rectangular |
|
Dimensions |
a 10 mm | b 40 mm | c 16 mm | d 228 mm | e 16 mm | f 3.8 mm | |
Variety of applications for our products
With thumb clamp: Spring-loaded clamping lever causes self-locking of the slide when the thumb contact is released
