Graco LDX™ Series, Grease, 10 mm (3/8 in) Inlet, 10 mm X 15 m (3/8 in X 50 ft) Hose, NPT, HEH006

Only 2 left
SKU: HEH006
Rs. 49,100.00
+ 18% GST

BEST OFFERS FOR YOU!

Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.

Technical Specifications

Specification Details
Recommended Fluid Type Grease
Reel Thread Type NPT
Maximum Working Pressure (psi) 4060
Maximum Temperature 100°C / 212°F
Inlet Thread Gender Male
Inlet Size 3/8 in (9.525 mm)
Includes Hose Yes
Hose Reel Type Reel with Hose
Hose Inside Diameter 9.525 mm
Frame Type Dual Pedestal
Dry Weight 50.6 lb
Minimum Temperature -40°C / -40°F
Model LDX
Outlet Size 3/8 in (9.525 mm)
Outlet Thread Gender Male
Overall Dimensions (L × W × H) 17.5 in (445 mm) × 9.4 in (239 mm) × 19 in (483 mm)

Product Description

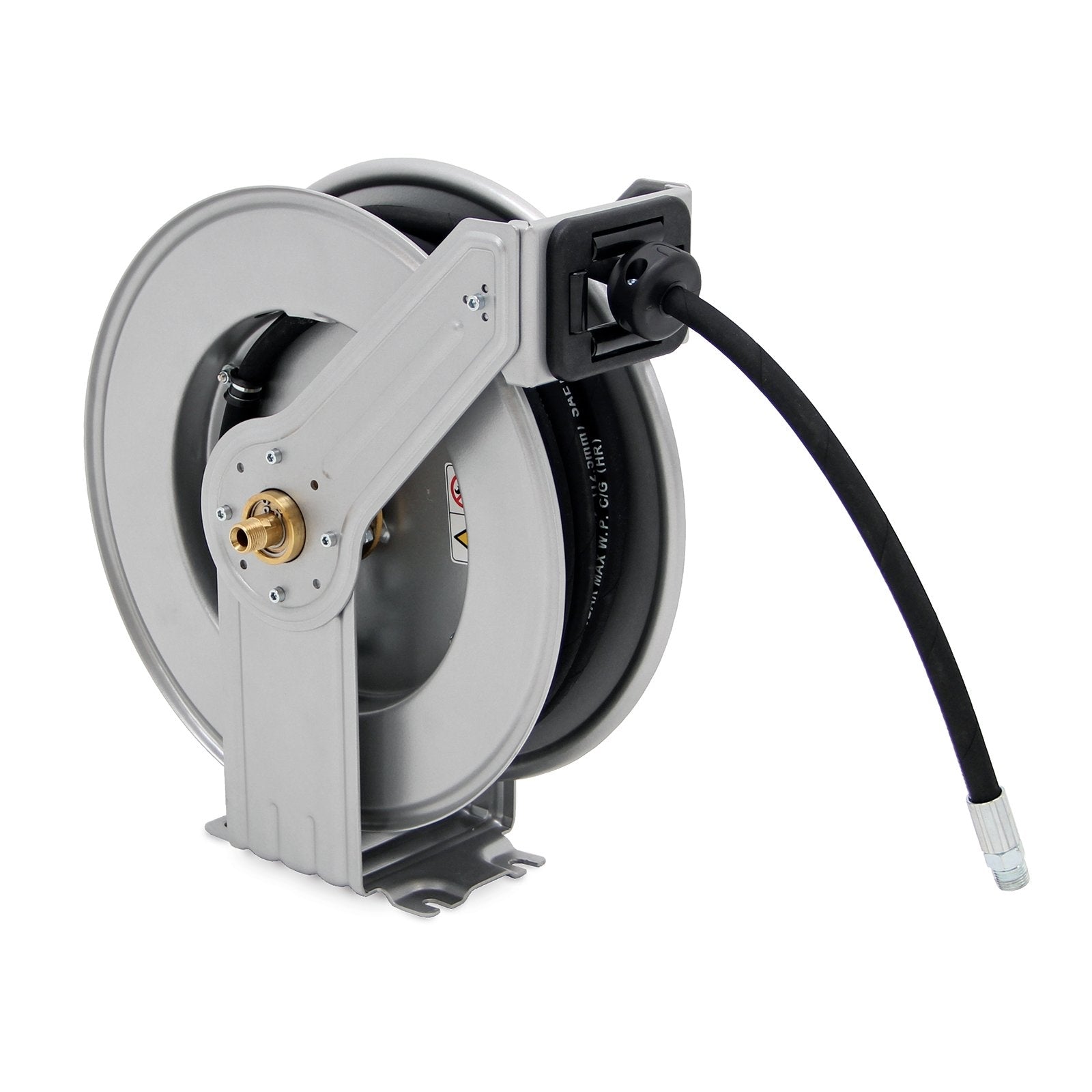

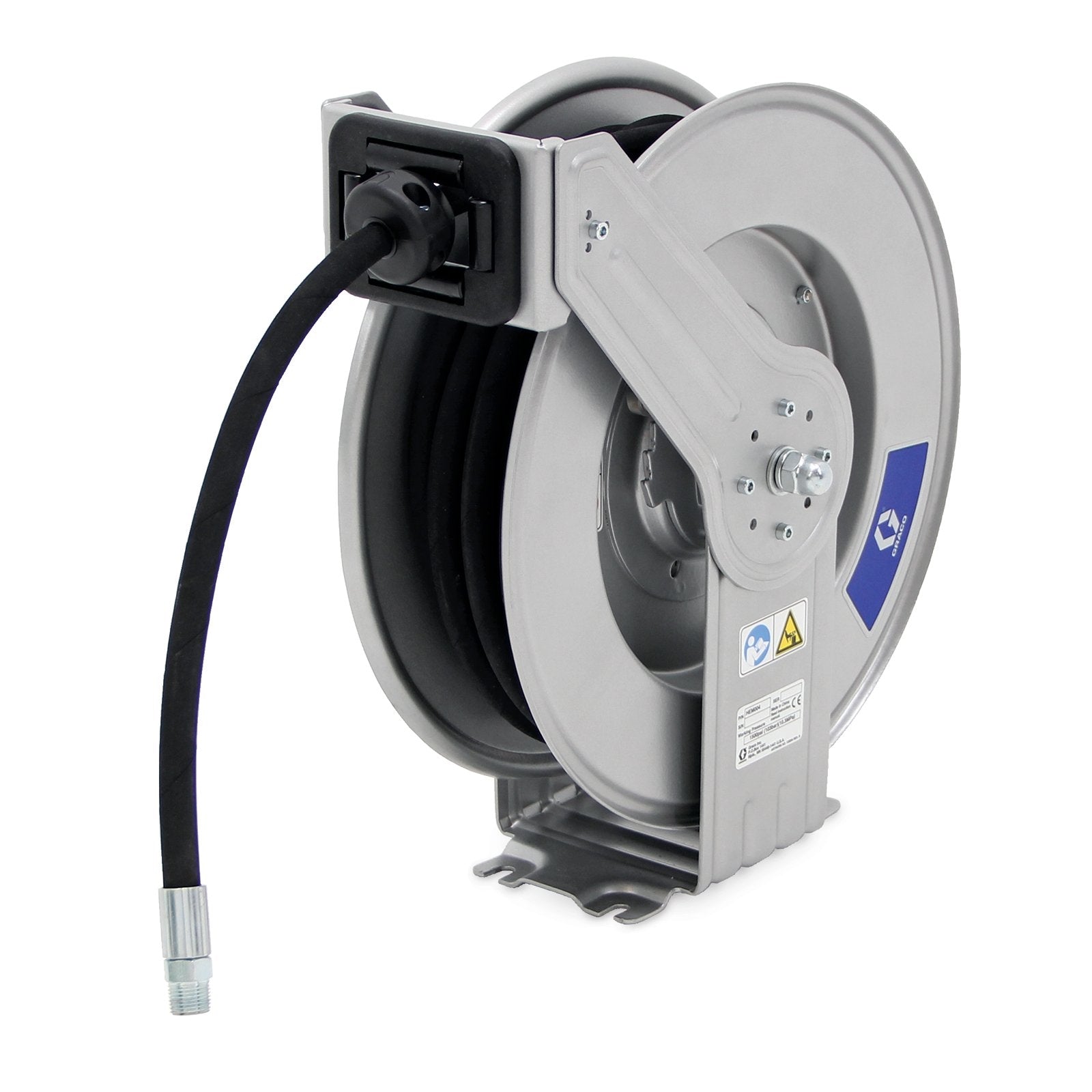

Graco’s entry-level, industrial-grade LDX hose reel offers incredible value for cost-conscious workshops. Its all-metal frame and specially crafted, long-lasting components provide consistent release and retraction.

Designed for smaller garages, independent repair facilities and industrial manufacturing environments.

  • Dual Pedestal Frame – Ribbed metal for increased stability and robustness.
  • External Swivel Housing – Quickly access swivel seal for faster repairs.
  • Ball Bearing Swivel – Swivel designed with internal ball bearings reduces friction and ensures smooth operation.
  • Adjustable Arm – Easily change to one of six arm positions to fit your application.
  • Large Hose Capacity with Small Profile - Compact design accommodates up to a 15 metre (50 foot) hose to meet a wide variety of application requirements.
