| Specification | Details |
|---|---|
| Dispense Type | Pre-set |
| Display Type | Electronic |
| Extension Type | Rigid |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| Includes | Nozzle, Extension, Trigger Guard, Swivel Cover |
| Inlet Size | 1/2 in (12.7 mm / 1.27 cm) |
| Maximum Flow Rate | 19 L/min |
| Maximum Operating Temperature | 49°C / 120°F |
| Meter Accuracy | ±0.5% |
| Maximum Working Pressure | 1000 psi / 7 MPa / 6900 kPa / #69 bar |
| Outlet Size | 3/8 in (9.525 mm / 0.9525 cm) |
| Minimum Operating Temperature | 0°C / 32°F |
| Trigger Protection Type | Guard |
| Valve Type | Metered |
| Model | LDP5 |
| Metering Gun Weight | 1.36 kg / 3 lb |
| Overall Dimensions | 28 cm (11 in) L × 8.3 cm (3.25 in) W × 8.3 cm (3.25 in) H |
| Minimum Flow Rate | 0.4 L/min / 0.1 GPM |
| Trigger Lock | Locking |
| Warranty | 5 years Structural Components, 2 years Electronics, 1 year Wear Parts |
| Approvals | CE |

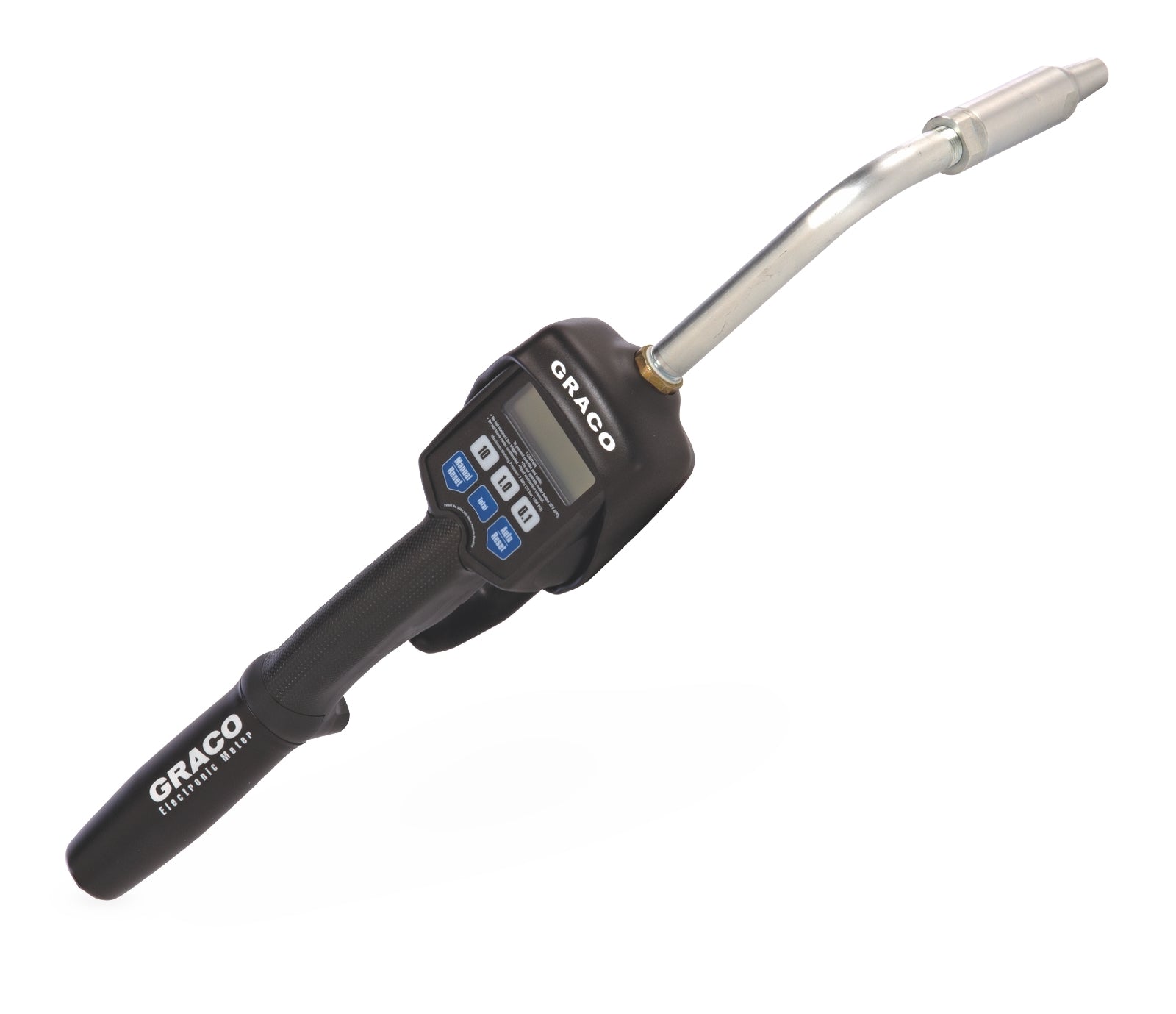

Graco's LDP5 meters are perfect for lower-volume service application in small service shops, fast lube centres and automotive dealerships. These meters are capable of metering petroleum, synthetic based oil and anti-freeze up to 19 lpm (5 gpm).
Typical applications include automotive dealerships, heavy-duty dealerships, fast lube centres, fleet service facilities, service shops and In-plant.
