Home » All Products » Graco Hydraulic Dyna-Star® 10:1 Pump Module – Injector, 27 kg (60 lb). Reservoir, Hydraulic Control, Vent Valve, 247574
GRACO

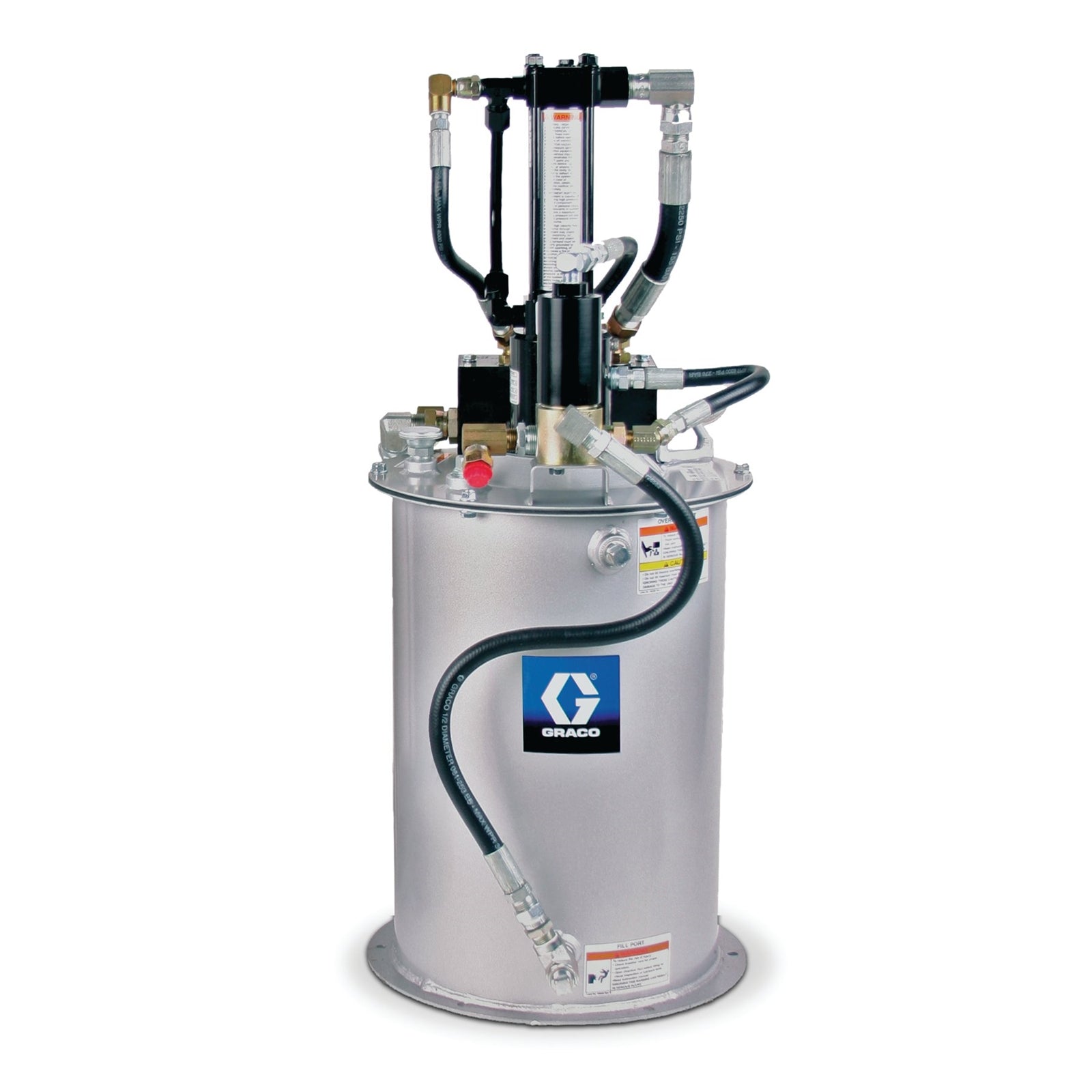

Graco Hydraulic Dyna-Star® 10:1 Pump Module – Injector, 27 kg (60 lb). Reservoir, Hydraulic Control, Vent Valve, 247574

Sold Out
SKU: 247574
Rs. 584,030.00
+ 18% GST

BEST OFFERS FOR YOU!

Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.

Technical Specifications

Specification Details
Model Dyna-Star
Overall Height 35.15 in (893 mm)
Overall Width 15 in (381 mm)
Maximum Working Pressure 350 psi / 24 bar
Voltage 24 V DC
Air Inlet Size 1/4 in (6.35 mm)
Fluid Outlet Size 12.7 mm

Product Description

Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, preventing expensive component failures.

For use with Dyna-Star® 10:1 Off-Road Mobile Lubrication Systems.

  • A wide variety of 27 kg (60 lb), 54 kg (120 lb) and 181 kg (400 lb) pump lengths and 27 kg (60 lb) and 41 kg (90 lb) reservoir options to fit all your off-road equipment
  • Pre-configured pump kits for injector or divider valve based systems give you maximum flexibility
  • Optional Graco controller, level indicator, pressure switch, follower plates and drum covers put you in control of your system-no more second guessing
  • Convenient pressure and flow control built-in
  • Hydraulic control module – all your controls in one package for easy system set-up and maintenance
  • Dyna-Star 10:1 27 kg (60 lb) pump module – injector – overall height 842 mm (35.15 in)
