Graco Husky 716 Series Air-Operated Double Diaphragm Transfer Pump for Oil Evacuation/Transfer, Water, Antifreeze, Windshield Wash Fluid, 241906
Regular price
Rs. 59,000.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Technical Specifications
| Specification | Details |
|---|---|
| Air Exhaust Port Size (in) | 3/8 |
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size (in) | 1/4 |
|
For Use With |
Oil, Water, Anti-freeze, Washer Fluid, Used Oil |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Size (mm) | 19.05 |
| Maximum Air Consumption (SCFM) | 28 |
| Maximum Air Pressure (bar) | 7 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Size (mm) | 19.05 |
| Maximum Flow Rate (L/min) | 60.6 |
| Maximum Fluid Pressure (bar) | 7 |
| Fluid Inlet Size (in) | 3/4 |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Solid Size (cm) | 0.2383 |
| Maximum Solid Size (in) | 0.09375 |
| Maximum Solid Size (mm) | 2.4 |
| Model | Husky |
| Air Inlet Thread Gender | Female |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 400 |
| Maximum Fluid Pressure (psi) | 100 |
Product Description

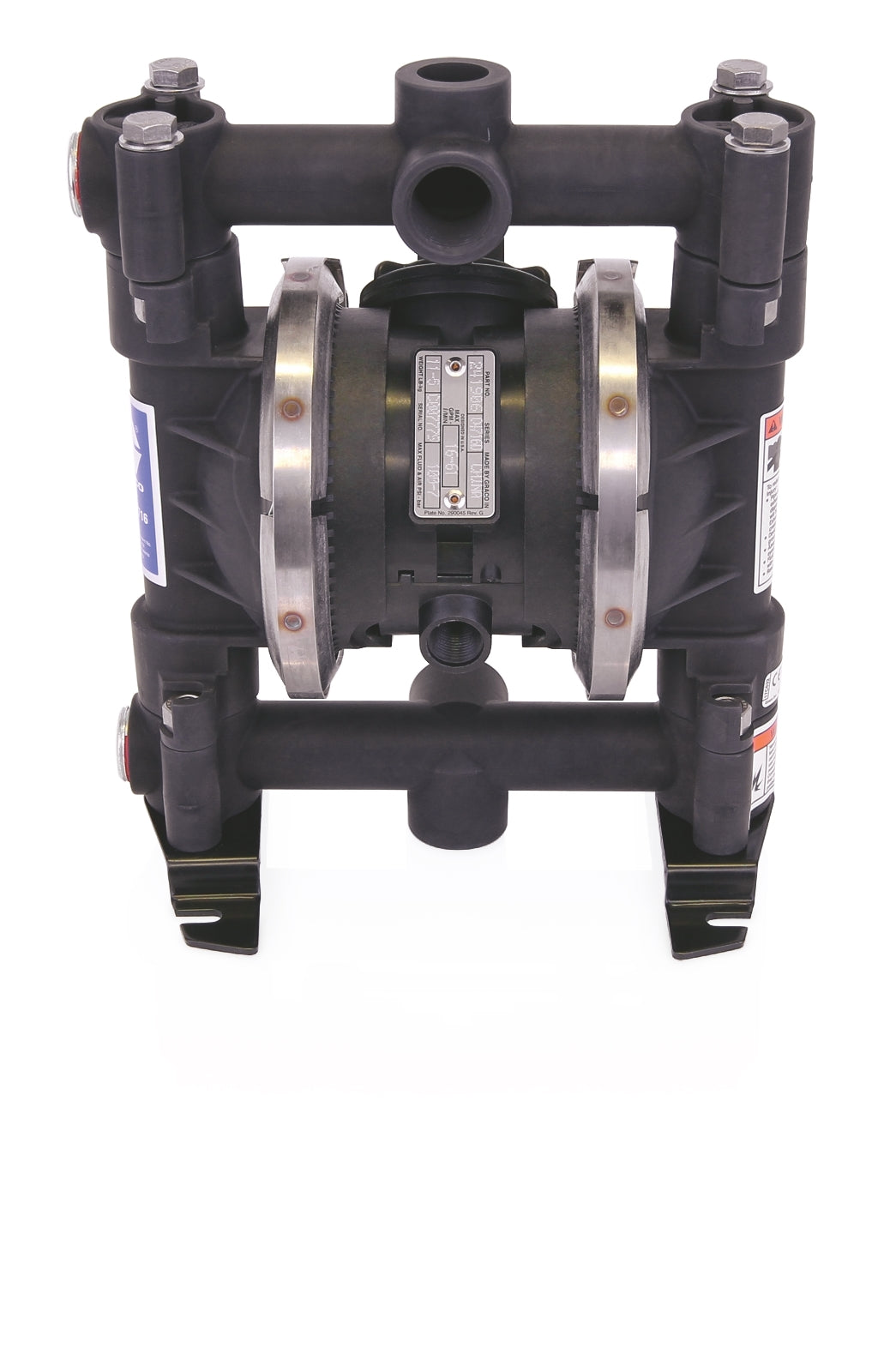

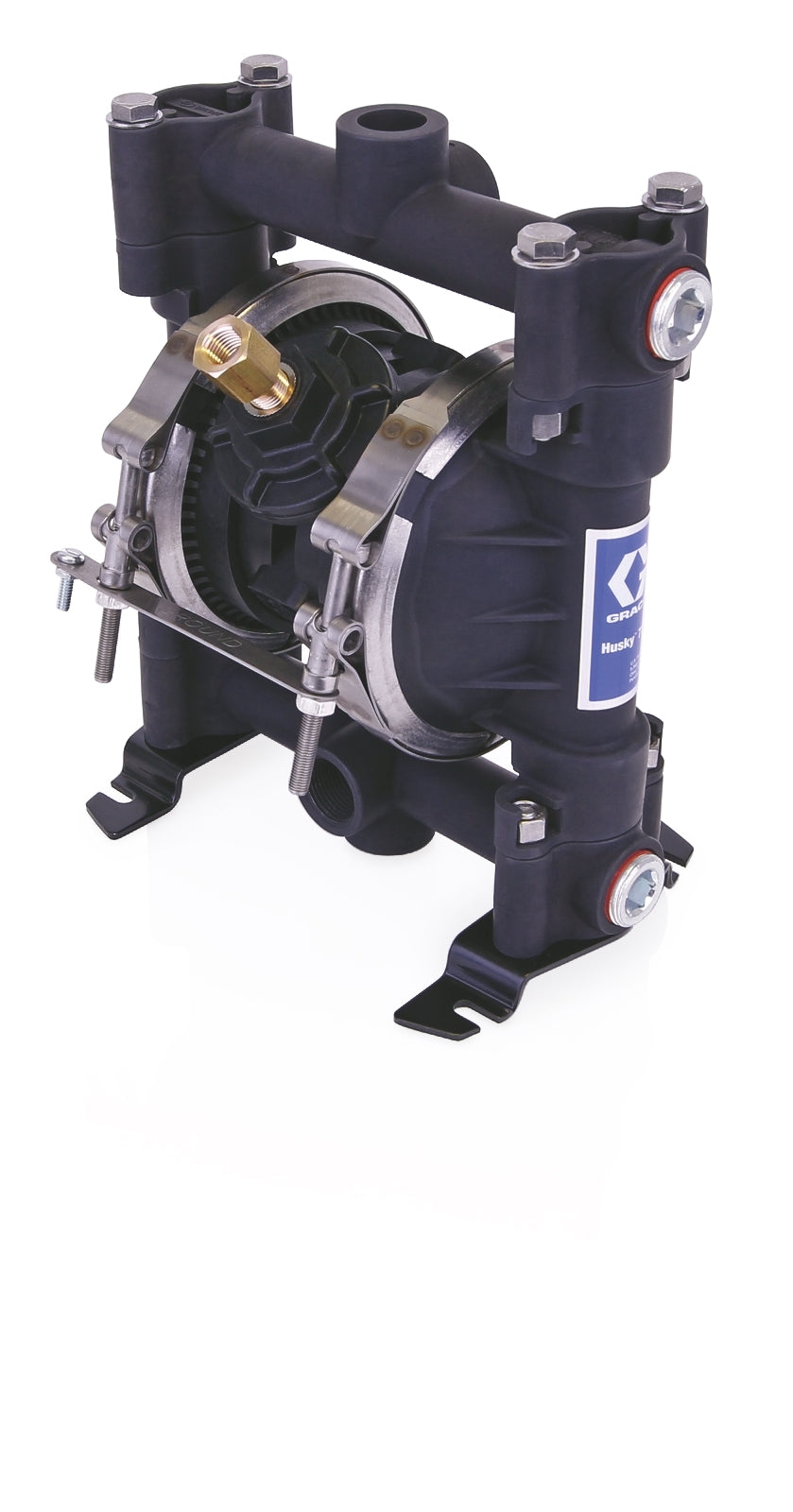

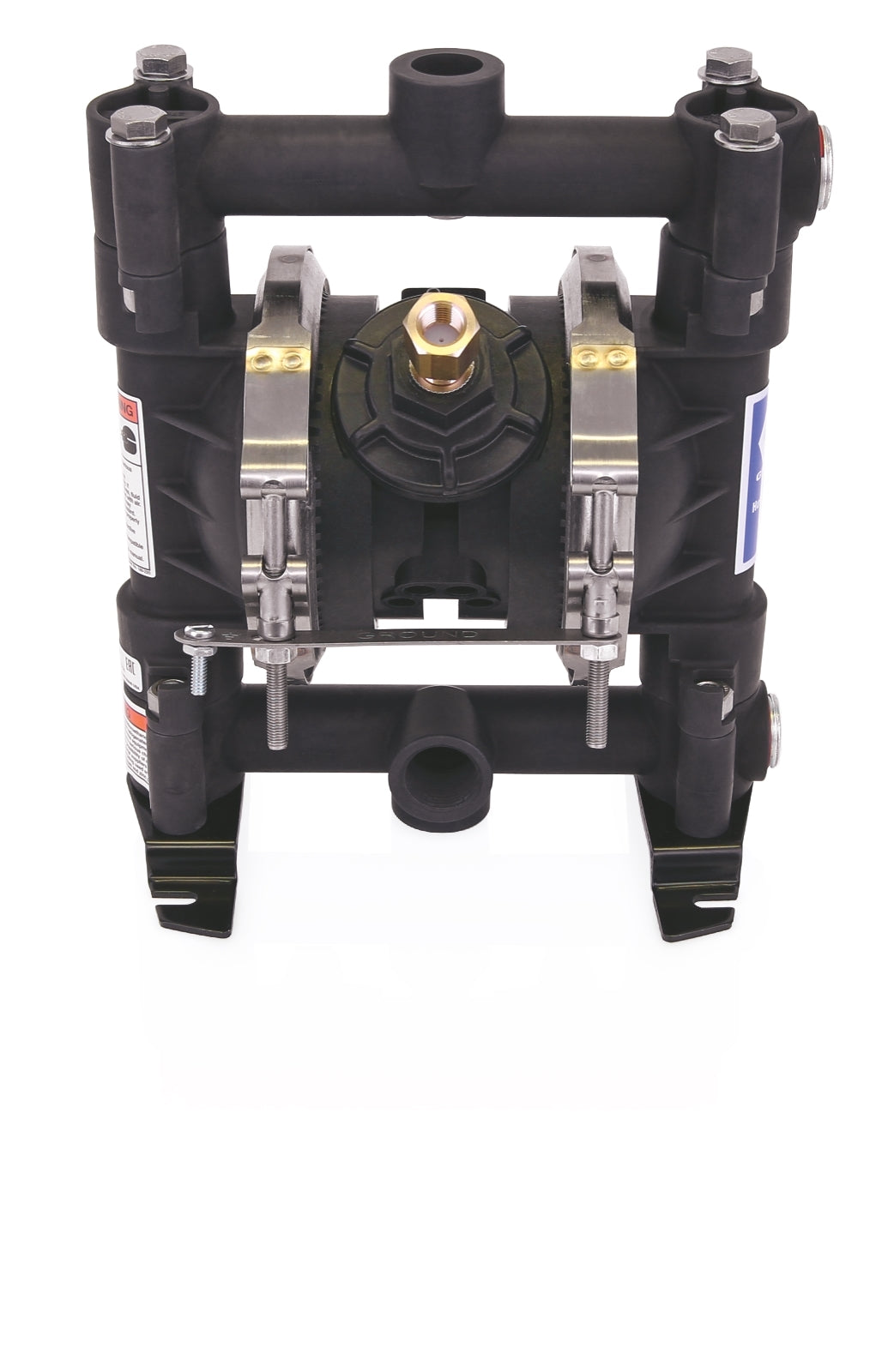

The Husky 716 air-operated diaphragm pump delivers up to 60.6 lpm (16 gpm) of fluid and features center and end porting options.
Ideal for bulk antifreeze and windshield solvent transfer.
- Centre and end-porting
- No mechanical seals, which causes fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Easy-to-service air valve and ball checks
- 19.05 mm (3/4 in) centre and end-porting
- No seals to leak or fail
- Quiet running, less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Easy-to-service air valve and ball checks
