Product Description
The powerful, new, easy-to-use Graco GLC X auto lubrication controller captures more information more ways, so operators, technicians and managers can make faster, smarter decisions that drive more productivity.

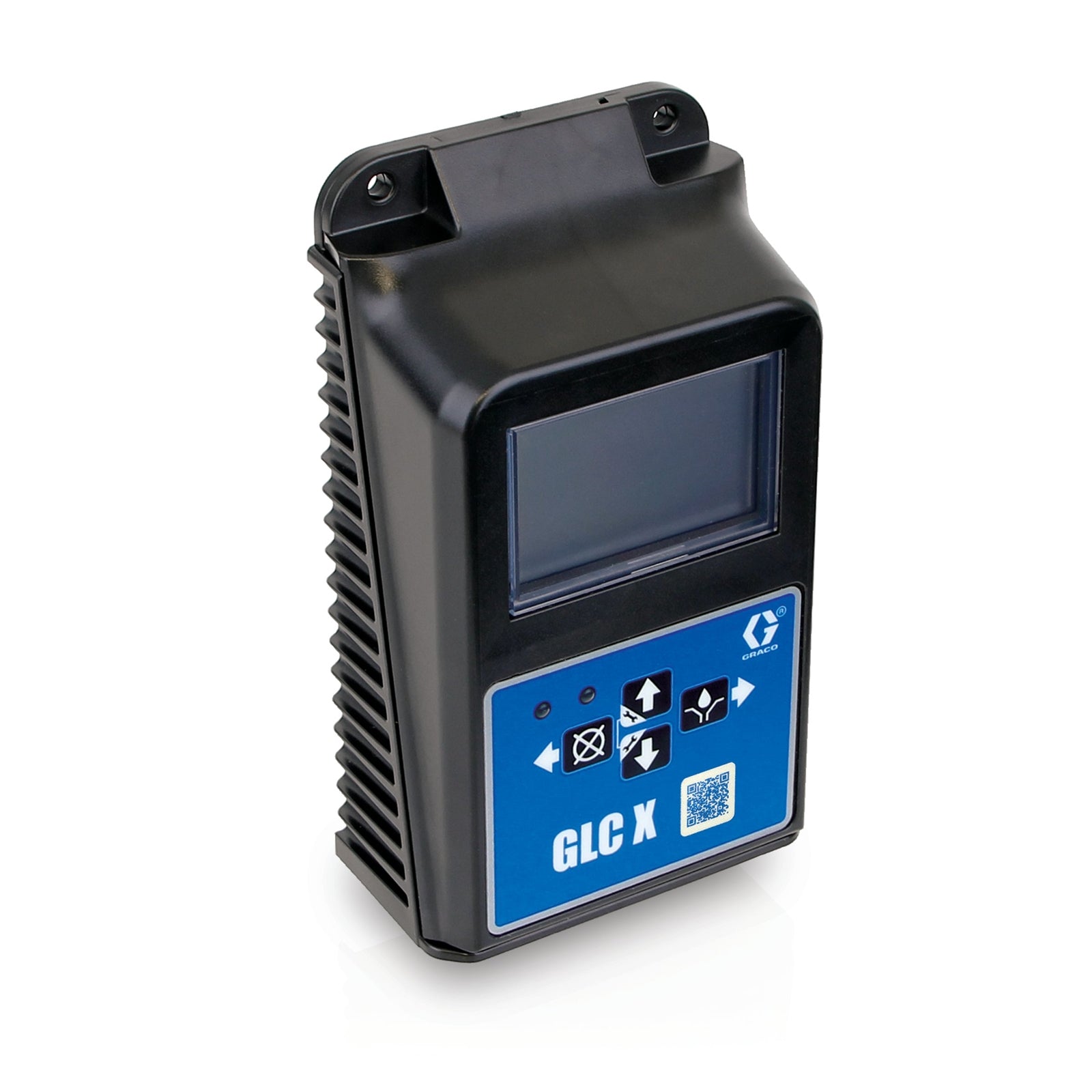

Graco GLC X Controller, 26A814
Regular price
Rs. 69,510.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Technical Specifications
| Specification | Details |
|---|---|
| Model | GLC |
| Series | X |
| Intrusion Rating | IP69K |
| Control Mode | Timer, Pressure, Cycle |
| Maximum Operating Temperature | 70°C / 158°F |
| Minimum Operating Temperature | -30°C / -22°F |
| Maximum Storage Temperature | 70°C / 158°F |
| Minimum Storage Temperature | -30°C / -22°F |
| Voltage Range | 9–30 V DC |
| Maximum Voltage | 30 V DC |
| Minimum Voltage | 9 V DC |
| Power Consumption | 450 W |
| Current Consumption | 15 A |
| Amperage | 15 A |
| Low Level Alarm Switching Voltage | 30 VDC |
| Low Level Alarm Switching Current | 10 A |
| Pump Control Voltage | 9–30 VDC |
| Auxiliary Alarm Voltage | 9–30 VDC |
| Auxiliary Alarm Switching Current | 10 A |
| Machine Count Control Input | Input 4 |
| Lubrication Level Input | Input 1: 10V |
| Count Rate | 5 counts/sec @ 50% duty cycle |
| Minimum System Cycle Count | 1 |
| Maximum System Cycle Count | 100 |
| Minimum Program Time | 10 sec |
| Maximum Program Time | 99 min / 5999 sec |
| Overall Dimensions (H × W × D) | 169 mm × 92 mm × 50 mm |
| Number of Pieces | 1 |
- Indoor/Outdoor Mountable (IP69K) – Designed to withstand all the elements, including high-pressure washes and inclement weather encountered at the harshest and dirtiest sites.
- Easy-to-Read LED Screen – Soft amber LED lighting capable of displaying text codes, faults and other data clearly in any ambient light without distracting operators.
- Real-Time System Reporting – Program and display a wide range of customizable functions – including lubrication intervals, pressure limits, lubricant levels and more.
- Smart Device and Mobile App – With the Auto Lube™ pap, monitor lubrication levels, configure settings, track history and share important diagnostics.
- Universal Compatibility – One controller for all your lubrication systems simplifies training and inventory.
- Active Current Protection – 9-30 VDC, 10 Amp continuous power supply protects grease pumps from over current and entire system from misfires, electrical shorts and surges.
