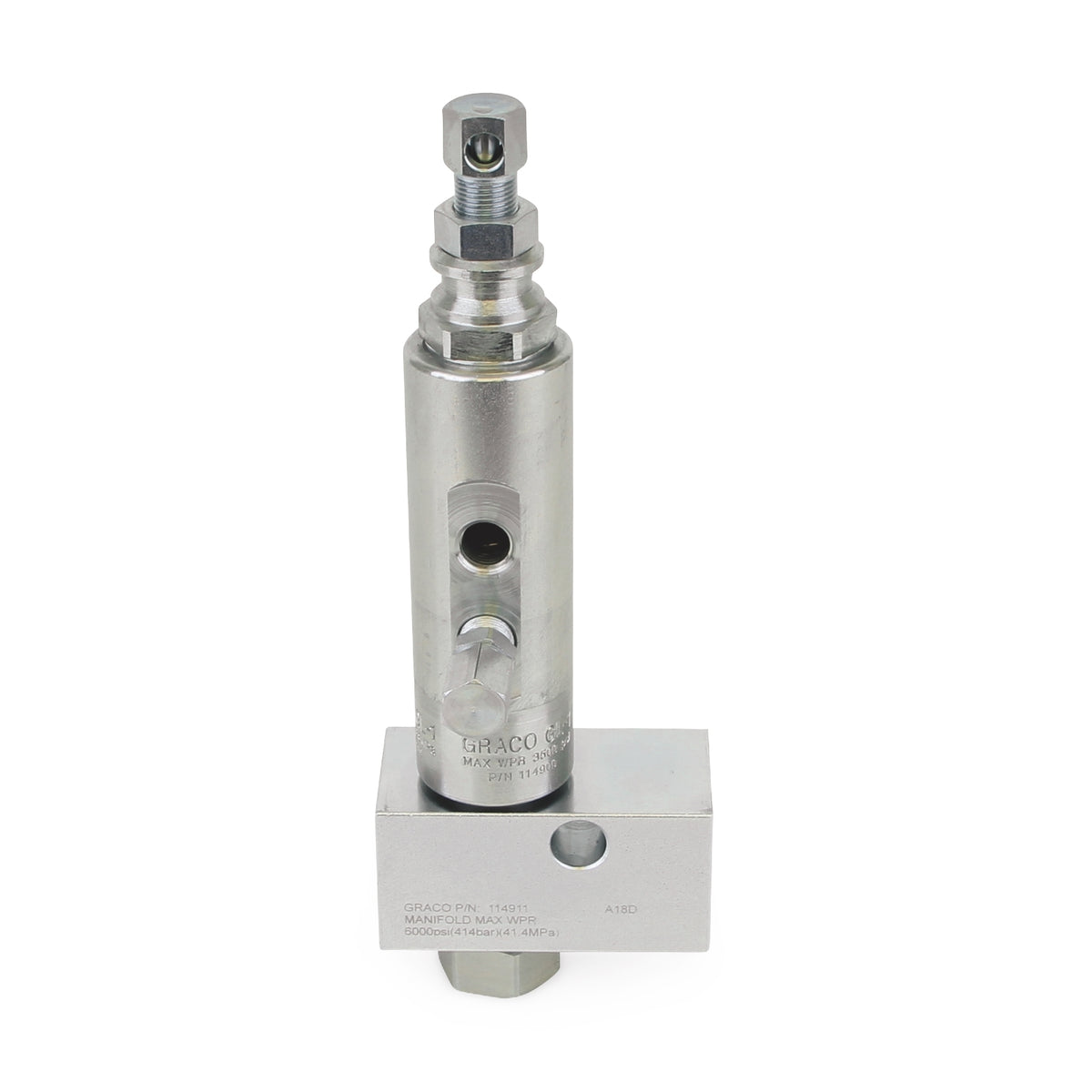

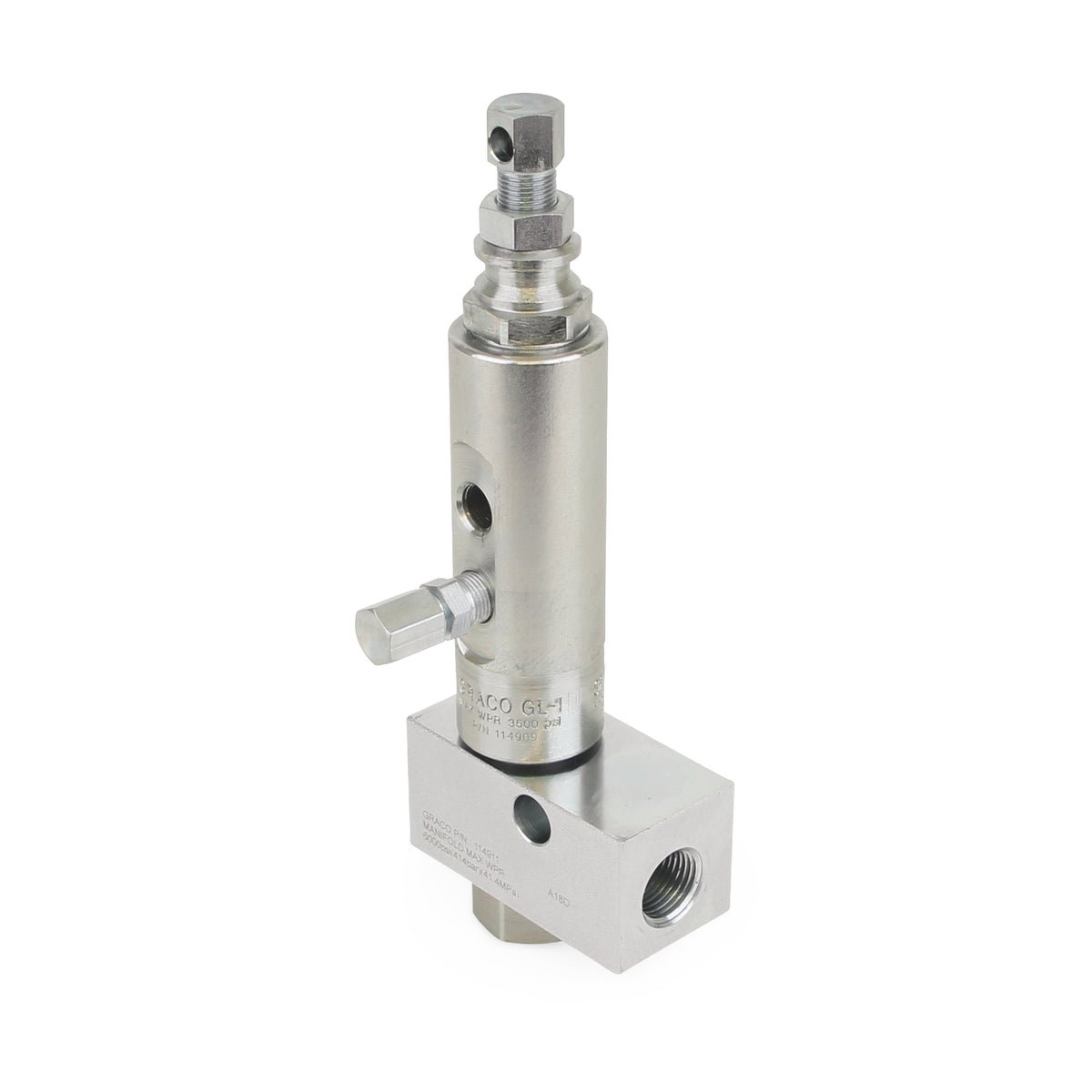

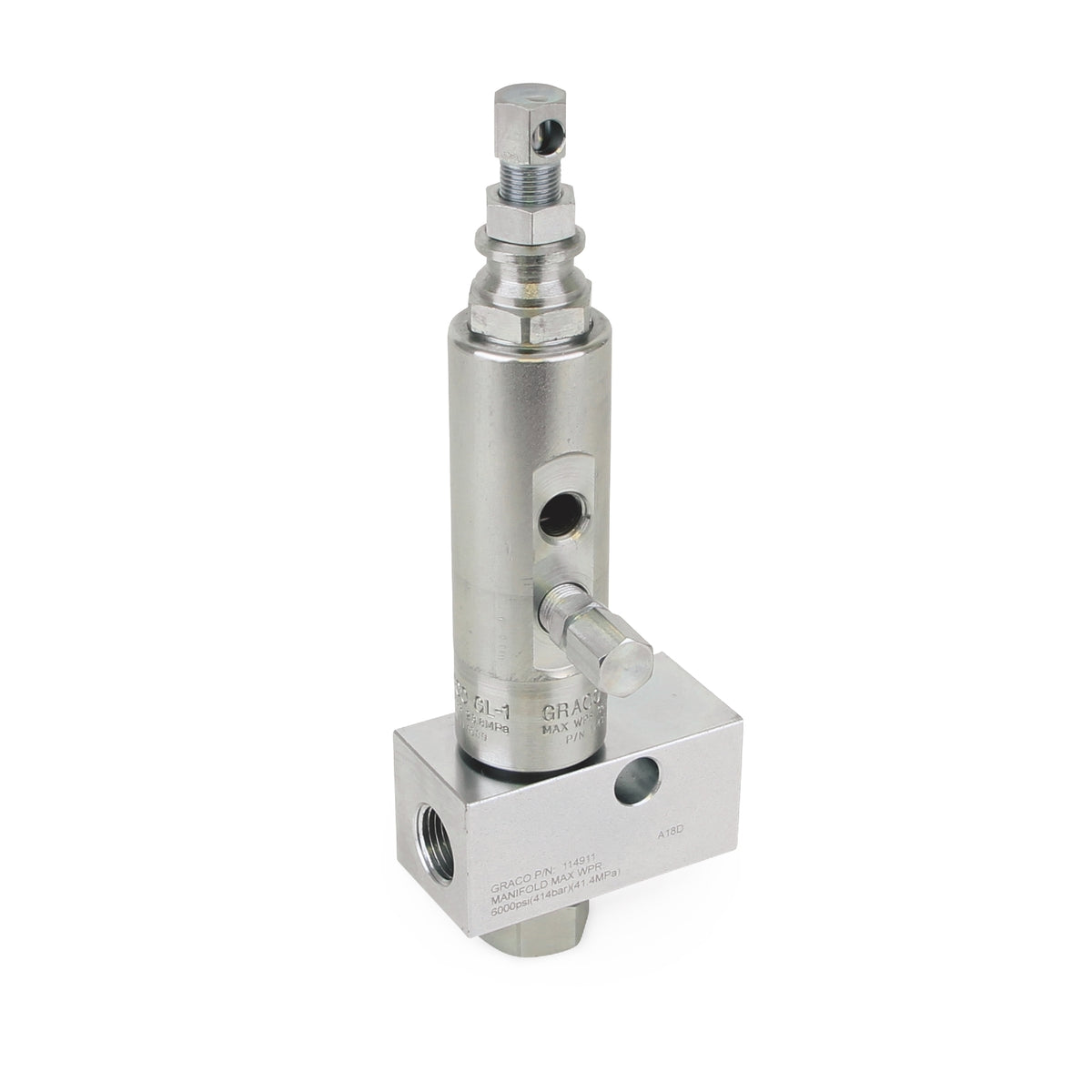

Graco GL-1™ Grease Injector – 1 Injector and Manifold, 114901

Sold Out
SKU: 114901
Regular price Rs. 17,120.00
+ 18% GST

BEST OFFERS FOR YOU!

Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.

Technical Specifications

Specification Value
Adjustable Adjustable
Dispense Outlet Size 0.13 in / 0.33 cm / 3.3 mm
Dispense Outlet Thread Type NPT
For Use With Single Line Parallel Automatic Lubrication Systems
Inlet Size 3/8 in / 0.9525 cm / 9.525 mm
Maximum NLGI Grade #2
Maximum Operating Pressure 3500 psi
Maximum Output Volume 0.08 in³
Maximum Reset Pressure 600 psi
Maximum Working Pressure 3500 psi / 241 bar / 24,100 kPa / 24.1 MPa
Minimum Operating Pressure 1850 psi
Minimum Output Volume 0.008 in³
Outlet Size 3/8 in / 0.9525 cm / 9.525 mm

Product Description

Custom fit your system with Graco's adjustable GL-1 series grease injectors. Designed to meet the needs of each lube point, these systems provide years of reliable operation in the harshest operating environments.

High volume output at high pressures for the most demanding applications

  • The GL-1 injectors are offered both as a stand-alone and a replacement injector for manifold systems for easy customisation to a variety of applications
  • Includes an adjustable hex head nut to make adjusting the output simple
  • No vent holes and fully enclosed press fittings to prevent leaking lubricant
  • Convenient top-mounted cycle pin indicator for quick confirmation that the injector is functioning properly
  • Rugged, single piece uni-body design built for the harshest environments
