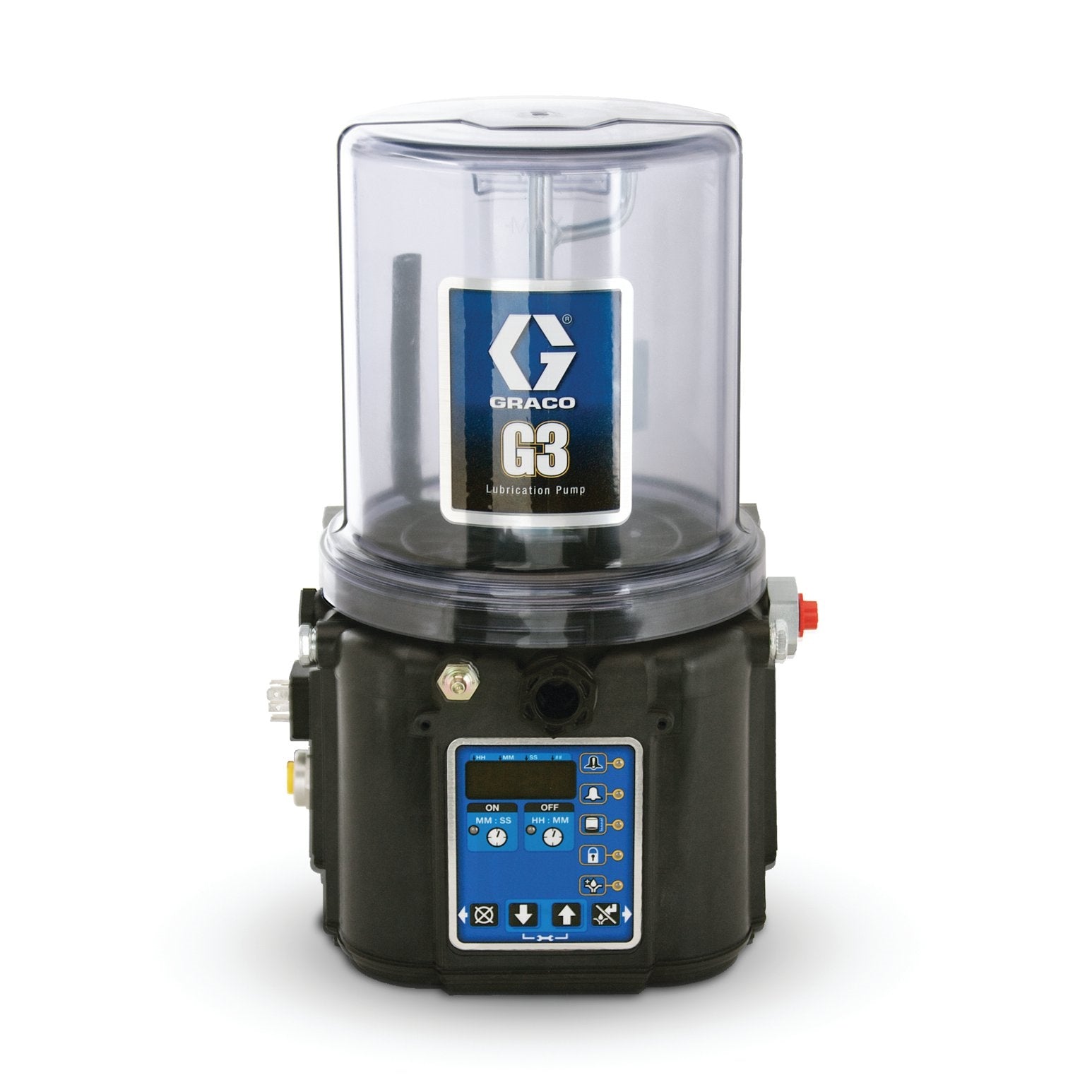

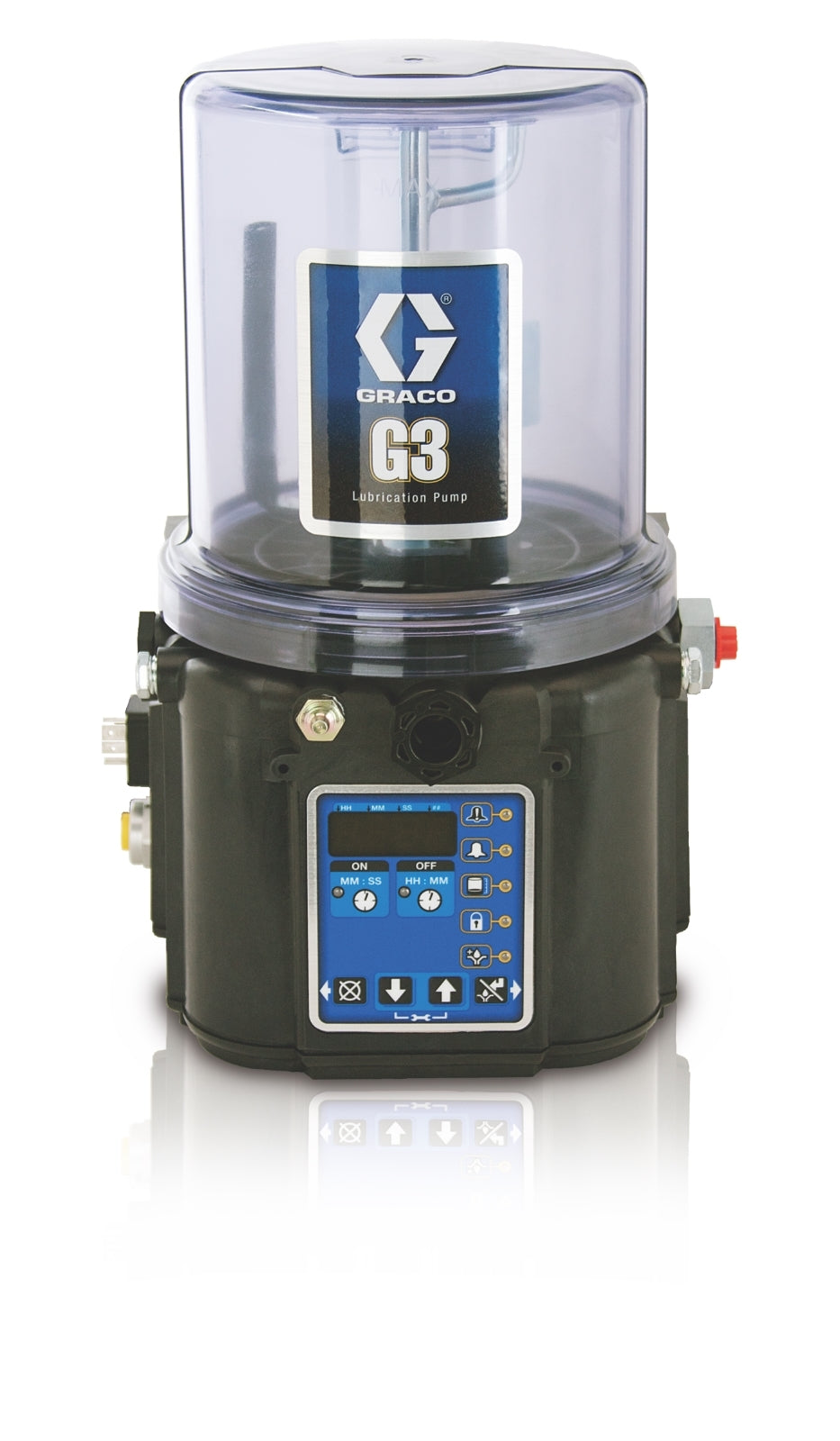

Graco G3™ Pro Grease Lubrication Pump, 24 VDC, 2 Litre, CPC, 96G028
Regular price
Rs. 92,950.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Technical Specifications
| Specification | Details |
|---|---|
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Gender | Female |
| Input Load Current (mA @ 24 VDC) | 22 |
| Alarm Relay Resistive Rated Load (A) | 2 |
| Alarm Relay Resistive Maximum Switching Capacity | 50 VA / 60 W |
| Alarm Relay Inductive Rated Load (A) | 1 |
| Low Level Switch Rating (VDC) | 200 |
| Includes | Wiper Arm |
| Input Required Switch Type | Normally Open |
| Input Response Time (ms) | 60 |
| Input Sensor Voltage (VDC) | 24 |
| Maximum Fill Inlet Pressure | 344.7 bar / 5000 psi |
| Maximum NLGI Grade | #2 |
| Maximum Working Pressure | 351.6 bar / 5100 psi |
| Model | G3 |
| Maximum Run Time (min) | 30 |
| Overall Dimensions | 9 × 13.25 × 8 in (229 × 337 × 203 mm) |
| Vent Valve Power | 48 W |
| Vent Valve Output Voltage (VDC) | 24 |
| Sensor Inputs | 1 Machine Count / 3 Pressure & Cycle Inputs |
| Pump Output | 0.25 / 0.18 / 0.12 cu in/min |
| Voltage | 24 VDC |
| Weight | 6 kg |
| Series | Pro |
Product Description
Extend machinery life, reduce operating costs and increase productivity with a Graco G3 today! The G3 Pro has a flexible design that works with injector-based and series progressive systems. A cost-effective pump designed to serve multiple markets and applications. Includes one adjustable pump element – standard, plus room for two more. The ultimate in flexibility – for a high value, custom fit on your application.
- Built-in controller with selectable pump on/pump off timer
- Low level indicator provides low warning and shut-down alarm
- Manual run initiates lube cycle on-demand (remote option also available)
- Password protection safeguards settings
- Pre-lube function can initiate lube cycle on start-up
