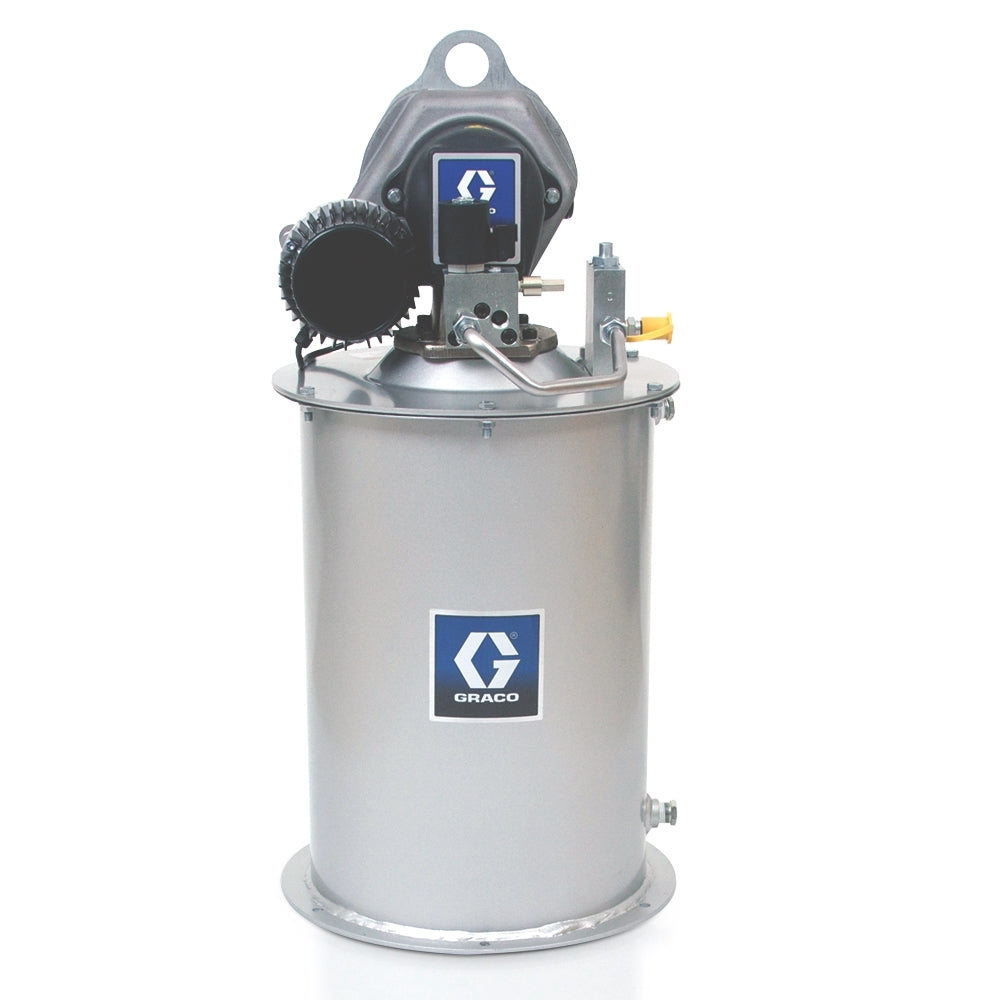

Graco Electric Dyna-Star® HP 24 VDC Injector Module with Pump, 77X102

Sold Out
SKU: 77X102
Rs. 741,750.00
+ 18% GST

BEST OFFERS FOR YOU!

Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.

Technical Specifications

Specification Details
Model Dyna-Star
Includes HP Pump 24 VDC, tube-in-tube, Vent Valve, cover, 27 kg (60 lb) reservoir
Air Inlet Size 1/4 in (6.35 mm)
Fluid Outlet Size 9.525 mm
Fluid Outlet Thread Gender Female
Maximum Working Pressure 3500 psi / 241 bar
Voltage 24 V DC
Overall Height 30.5 in (775 mm)
Overall Width 14.5 in (368 mm)

Product Description

The Dyna-Star HP and HF 24VDC Electric Lubrication Pumps complement our Dyna-Star 10:1 Hydraulic and Fire-Ball 300 50:1 Pneumatic pump offering. For heavy-duty construction and mining equipment, rely on the Electric Dyna-star to supply fresh lubricant and flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

For use in mining operations, milling and crushing, heavy-duty construction, well services and industrial.

  • High-quality helical hardened steel gears are lubricated for life and sealed to keep contaminants out for longer lasting performance.
  • Ability to adjust motor controls like power input, motor speed, current control and signal input to perfectly match the pump to your application and environmental changes.
  • Mechanical auto-fill shut-off and remote-mounted fill port ensures clean and efficient refills.
  • Vent valve mounts directly to pump with no special brackets or hoses for a compact design and less parts to break or wear out.
  • IP69K rated
  • Built-in pressure relief for safety and compact, efficient installations.
  • Cavitation-free fill and vent path provides simple and direct venting and filling to the foot of the pump.
  • Built-in lift ring is rated to 226 kg (500 lbs).
  • Strong 12 gauge steel reservoir, 27 kg (60 lb) size.
  • AC to DC Converter Box for fixed and in-plant applications.
