Home » All Products » Graco Dyna-Star® 200:1 Air-Powered Bare Grease Pump for 55 kg (120 lb) Keg, 25P784
GRACO

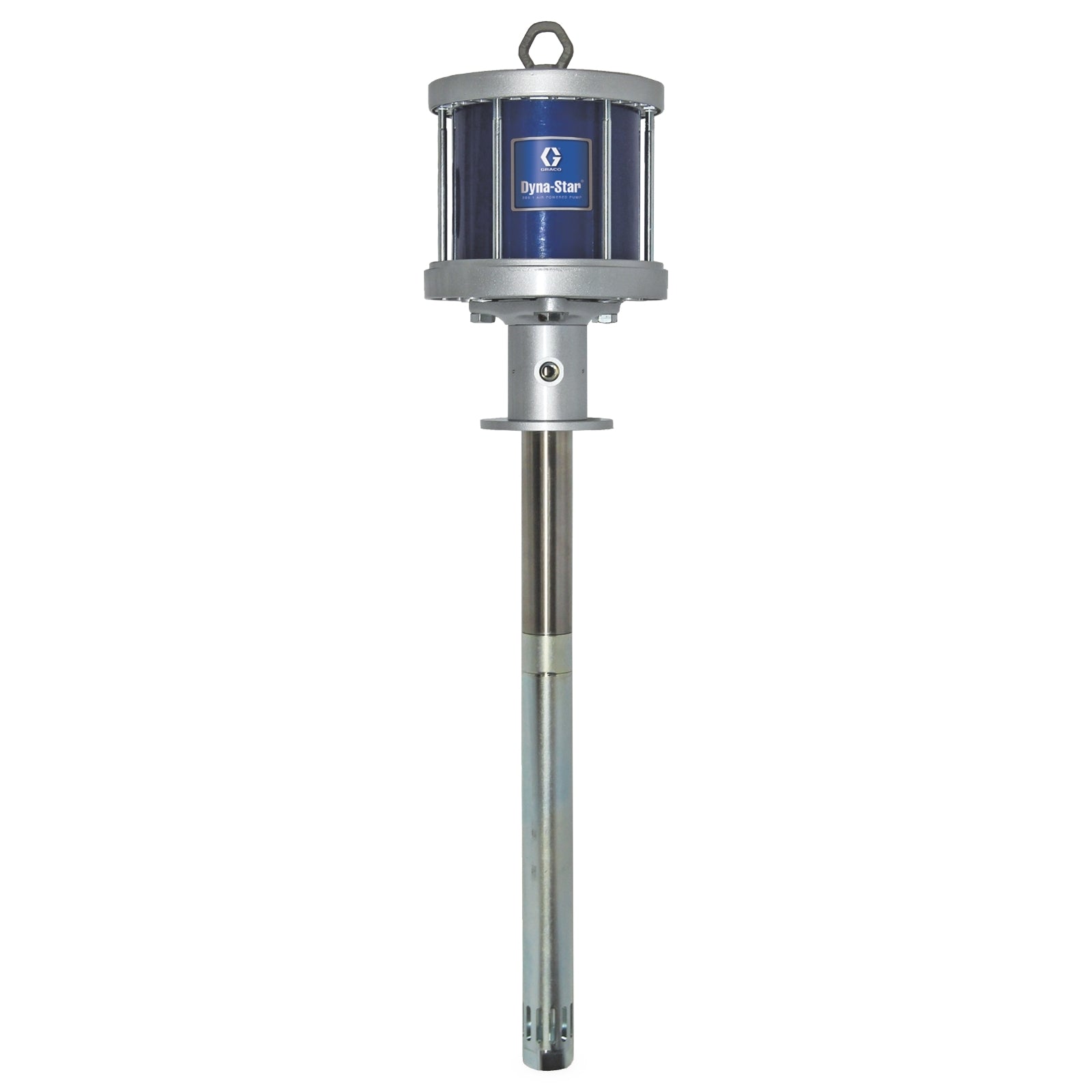

Graco Dyna-Star® 200:1 Air-Powered Bare Grease Pump for 55 kg (120 lb) Keg, 25P784

Sold Out
SKU: 25P784
Rs. 724,500.00
+ 18% GST

BEST OFFERS FOR YOU!

Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.

Technical Specifications

Specification Value
Air Inlet Size 0.5 in
Fluid Outlet Thread Gender Female
Component Technology Air Motor; Shovel-loading Pump Tube
Air Motor Size 7-1/2 in
Air Motor Effective Diameter 7.5 in
Air Inlet Thread Gender Female
Maximum Air Consumption 125 SCFM
Maximum Air Inlet Pressure 6.89 bar / 100 psi
Maximum Flow Rate 1.7 L/min
Maximum Fluid Output Pressure 20000 psi / 379 bar
Maximum Cycle Rate 60 CPM (Intermittent & Continuous)
Maximum NLGI Grade 2
Maximum Working Pressure 20000 psi / 1379 bar
Minimum Operating Temperature -30°C / -30°F
Model Dyna-Star
Maximum Operating Temperature 82°C / 180°F
Overall Height 43.5 in / 1104.9 mm
Piston Travel 4.75 in
Output Per Cycle 28 cm³
Weight 31.8 kg

Product Description

Graco Dyna-Star Air-Powered pumps offer reliably you can trust to provide fast grease delivery against high back pressure in an easy-to-service package.

For use in hydraulic fracturing wellhead service and maintenance, well service blow out preventer maintenance and well service valve maintenance.

  • Fast Flow at Higher Pressures – 1,379 bar (20,000 PSI) maximum operating pressure with 1.5 l/min flow at 10,000 psi back pressure.

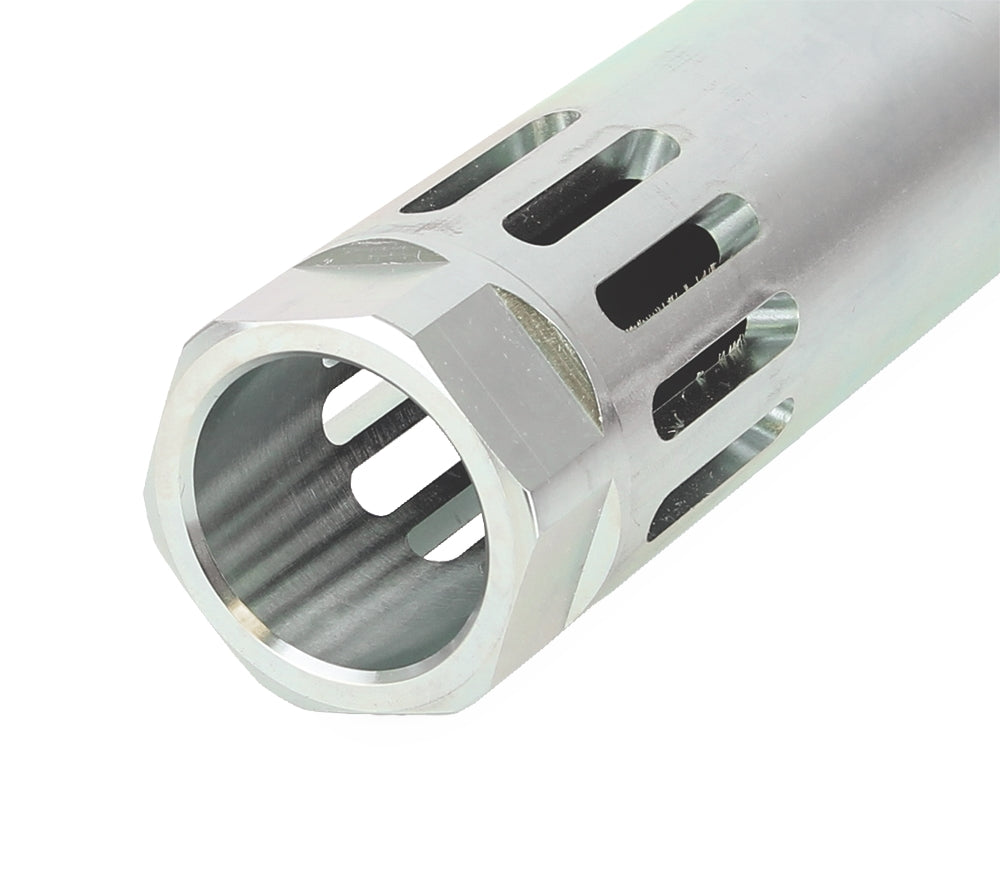

  • Fast and Easy Seal Repairs – Hex-style heavy-duty lower withstands harsh field conditions and aids intuitive seal replacements.
  • CE and Hazardous Location Certified – ATEX Ex II 2 G Ex h IIA T4 Gb.
  • Legendary Merkur Air Motor – Proven air valve is DataTrak®-ready.
  • 100% assembled and tested in the USA.
