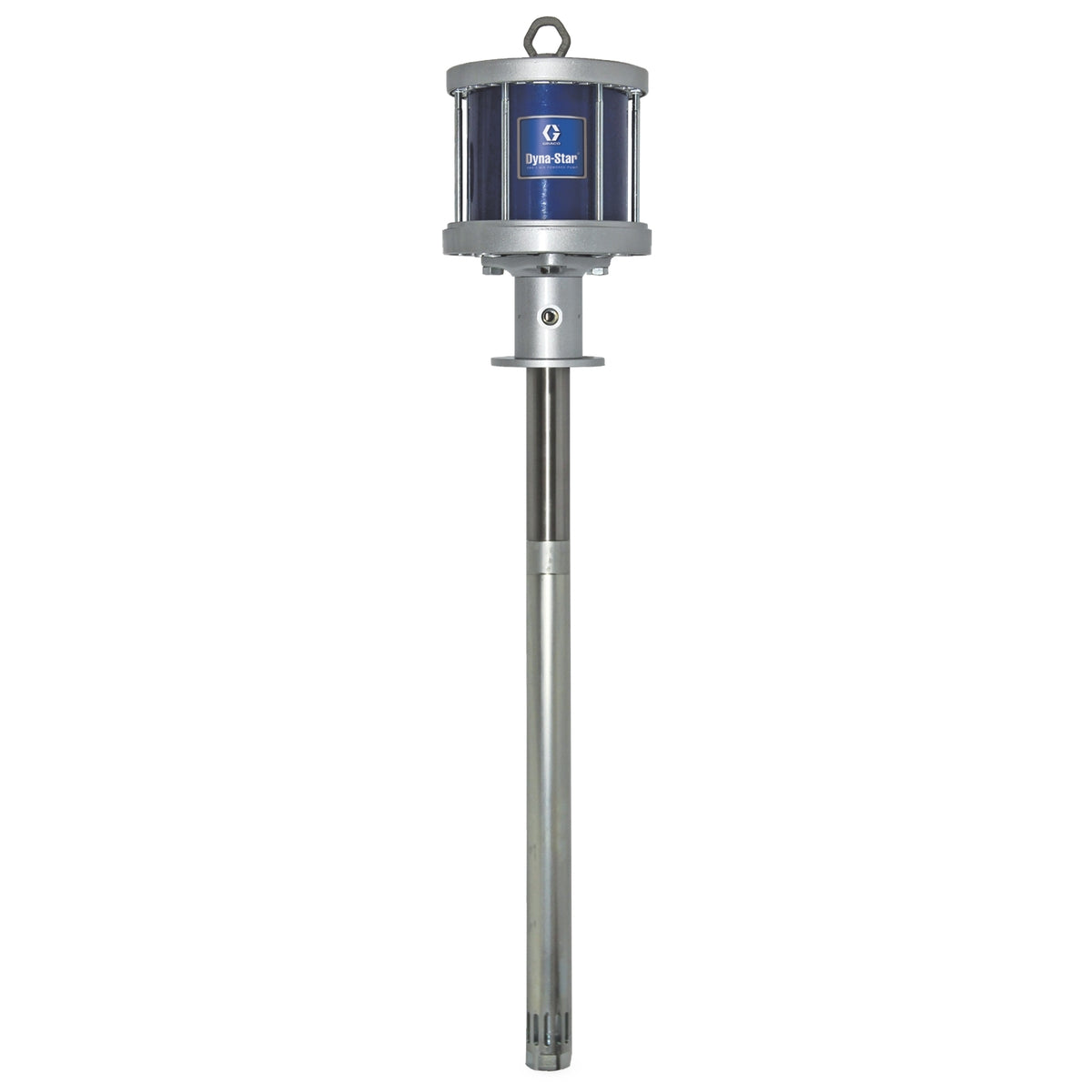

Graco Dyna-Star® 200:1 Air-Powered Bare Grease Pump for 180 kg (400 lb) Barrel, 25P785
Regular price
Rs. 756,000.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Technical Specifications
| Specification | Value |
|---|---|
| Air Inlet Size | 0.5 in |
| Fluid Outlet Thread Gender | Female |
| Component Technology | Air Motor; Shovel-loading Pump Tube |
| Air Motor Size | 7-1/2 in |
| Air Motor Effective Diameter | 7.5 in |
| Air Inlet Thread Gender | Female |
| Maximum Air Consumption | 125 SCFM |
| Maximum Air Inlet Pressure | 6.89 bar / 100 psi |
| Maximum Flow Rate | 1.7 L/min |
| Maximum Fluid Output Pressure | 379 bar / 20,000 psi |
| Maximum Intermittent Cycle Rate | 60 CPM |
| Maximum NLGI Grade | 2 |
| Maximum Continuous Cycle Rate | 60 CPM |
| Maximum Working Pressure | 1379 bar / 20,000 psi |
| Minimum Operating Temperature | -30°C / -30°F |
| Model | Dyna-Star |
| Maximum Operating Temperature | 82°C / 180°F |
| Overall Height | 50.3 in / 1277.62 mm |
| Piston Travel | 4.75 in |
| Output Per Cycle | 28 cm³ |
| Weight | 29.5 kg |
Product Description
Graco Dyna-Star Air-Powered pumps offer reliably you can trust to provide fast grease delivery against high back pressure in an easy-to-service package.
For use in hydraulic fracturing wellhead service and maintenance, well service blow out preventer maintenance and well service valve maintenance.
- Fast Flow at Higher Pressures – 1,379 bar (20,000 PSI) maximum operating pressure with 1.5 l/min flow at 10,000 psi back pressure.

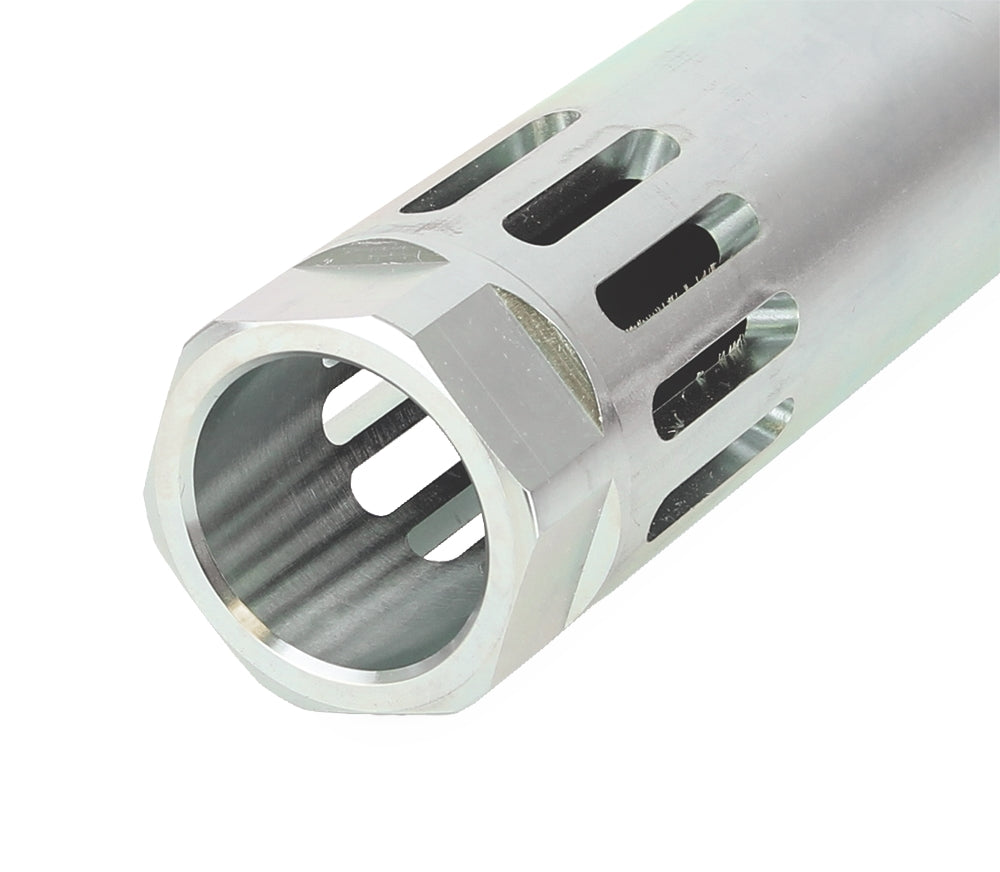

- Fast and Easy Seal Repairs – Hex-style heavy-duty lower withstands harsh field conditions and aids intuitive seal replacements.
- CE and Hazardous Location Certified – ATEX Ex II 2 G Ex h IIA T4 Gb.
- Legendary Merkur Air Motor – Proven air valve is DataTrak®-ready.
- 100% assembled and tested in the USA.
