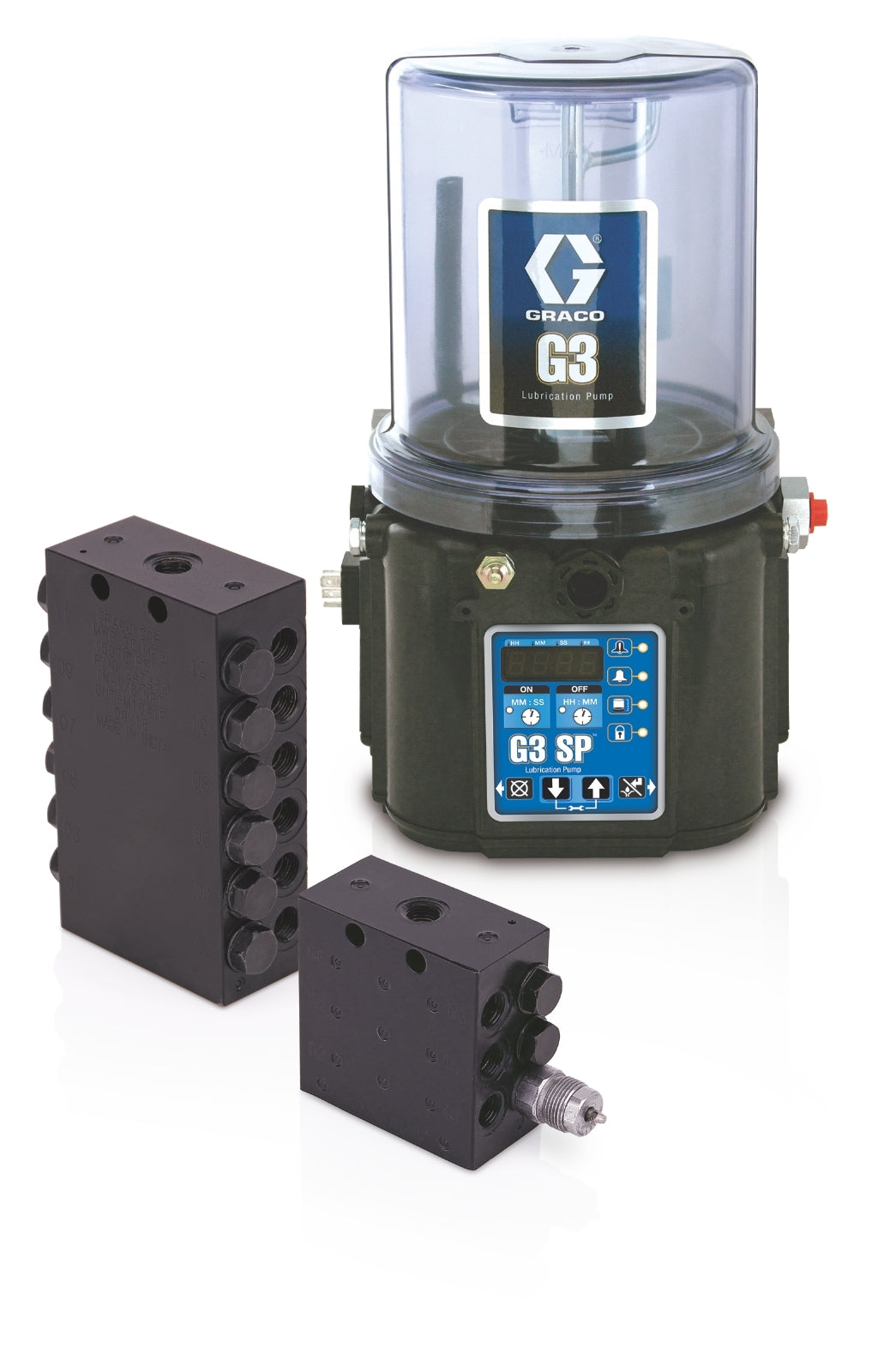

Compact Series Progressive (CSP) valve with broad market versatility. Combine with field-proven G-Series pumps for a complete system solution.

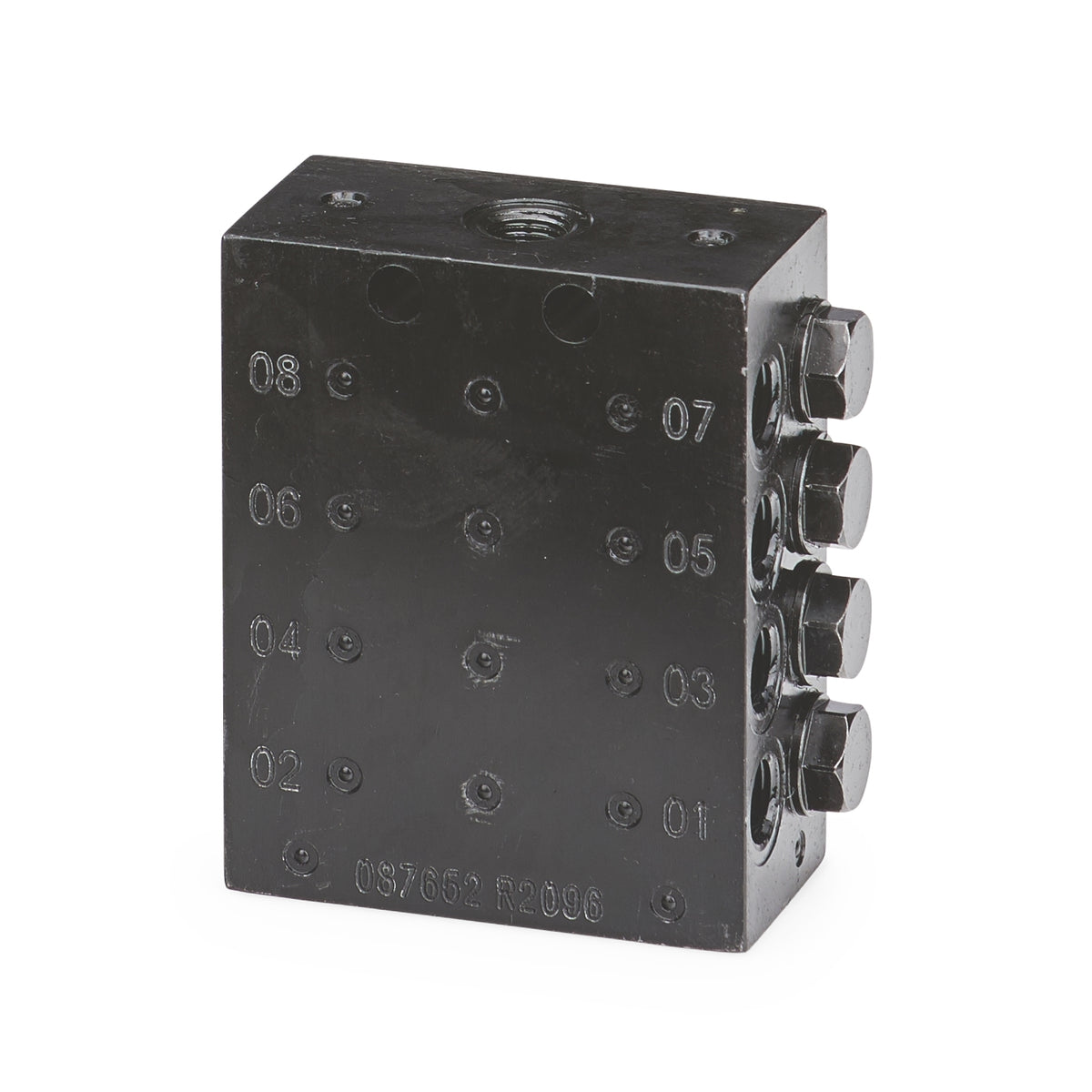

Graco CSP Divider Valve, 1/8 inch NPT, 8 Outlets, 24Z487
Regular price
Rs. 15,440.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Working Pressure | 5076 psi / 35,000 kPa / 350 bar |
| Maximum Operating Temperature | 212°F / 100°C |
| Maximum NLGI Grade | #2 |
| Inlet Size | 1/8 in / 3.175 mm / 0.3175 cm |
| Divider Valve Series | CSP |
| Discharge Per Piston Stroke | N/A |
| Minimum Working Pressure | 217.5 psi / 1,500 kPa / 15 bar |
| Model | Trabon |
| Number of Outlets | 8 |
| Outlet Thread Gender | Female |
Product Description
- 1/8 inch NPT inlet
- Space efficient design with 8 outlets, without indicator
- Outlets can be combined to meet larger bearing needs
- Built-in durability with zinc iron plating to stand up to harsh environments
- High output pressure - maximum working pressure of 350 bar (5,076 psi) for both oil and grease
