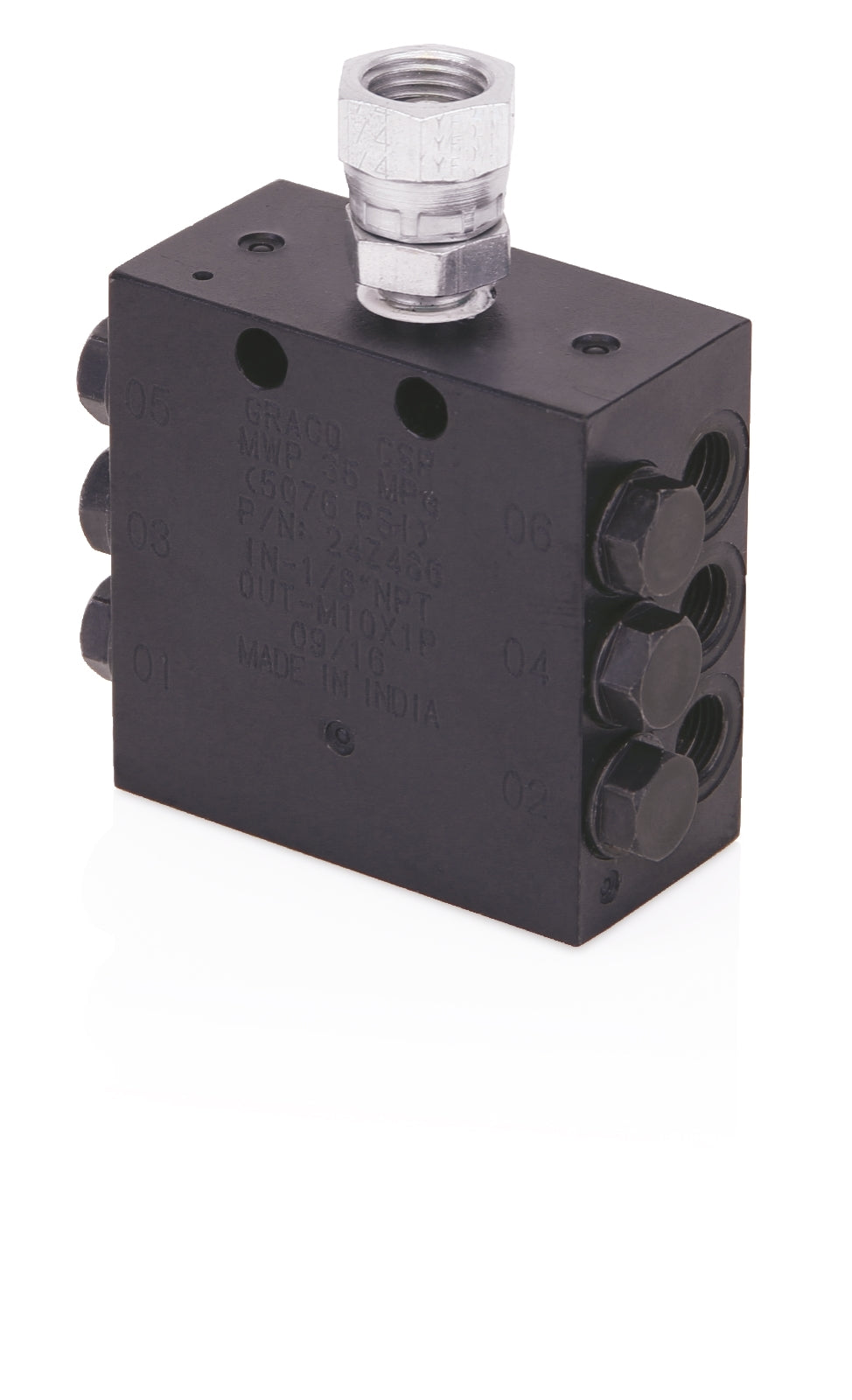

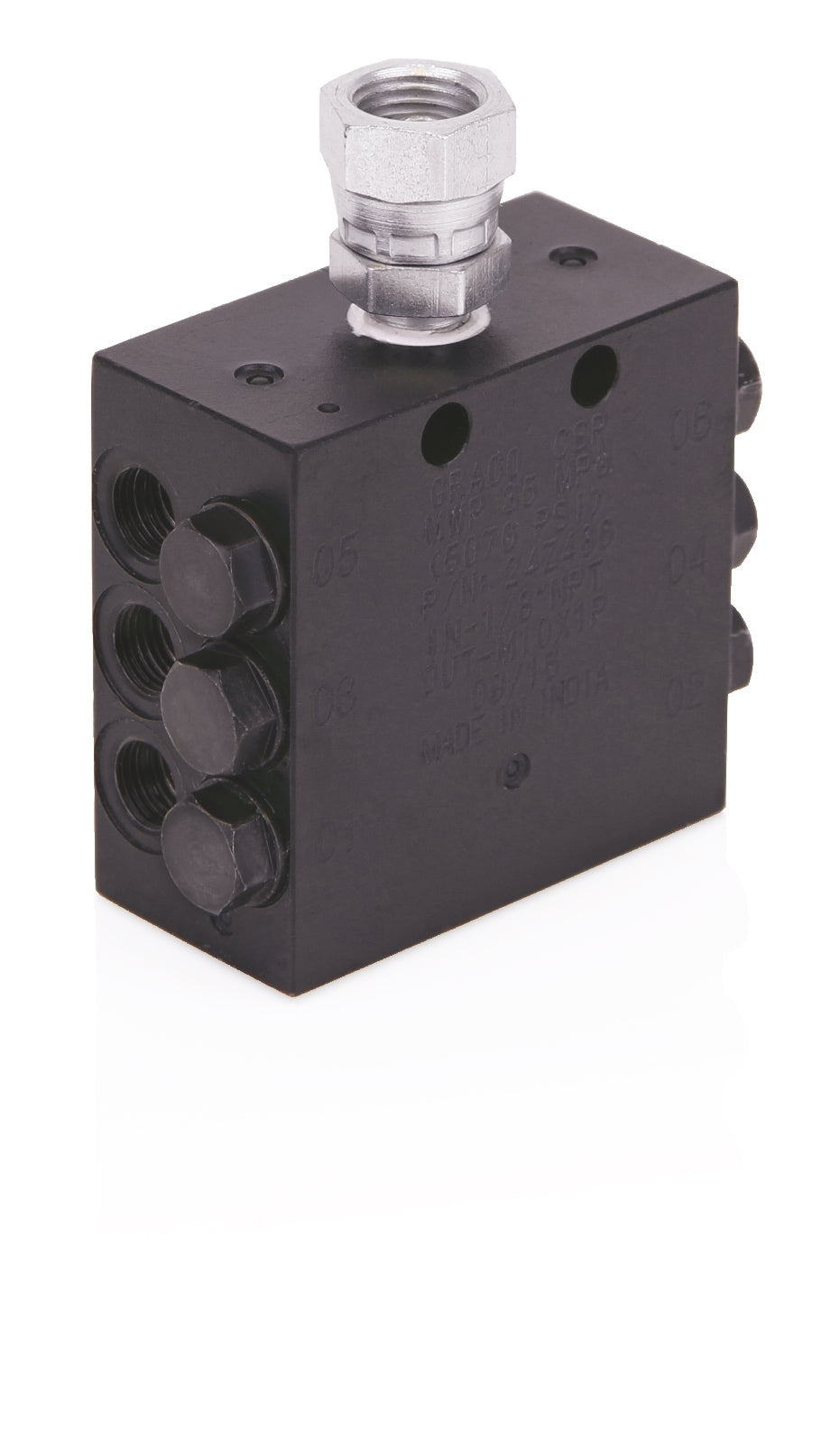

Graco CSP Divider Valve, 1/8 inch NPT, 6 Outlets, 24Z486

Enquiry Now
SKU: 24Z486
Rs. 12,180.00
+ 18% GST

BEST OFFERS FOR YOU!

Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.

Technical Specifications

Specification Details
Model Trabon
Divider Valve Series CSP
Number of Outlets 6
Inlet Size 1/8 in (3.175 mm / 0.3175 cm)
Outlet Thread Gender Female
Maximum NLGI Grade #2
Discharge Per Piston Stroke N/A
Minimum Working Pressure 217.5 psi / 15 bar / 1500 kPa
Maximum Working Pressure 5076 psi / 350 bar / 35000 kPa
Maximum Operating Temperature 100°C / 212°F

Product Description

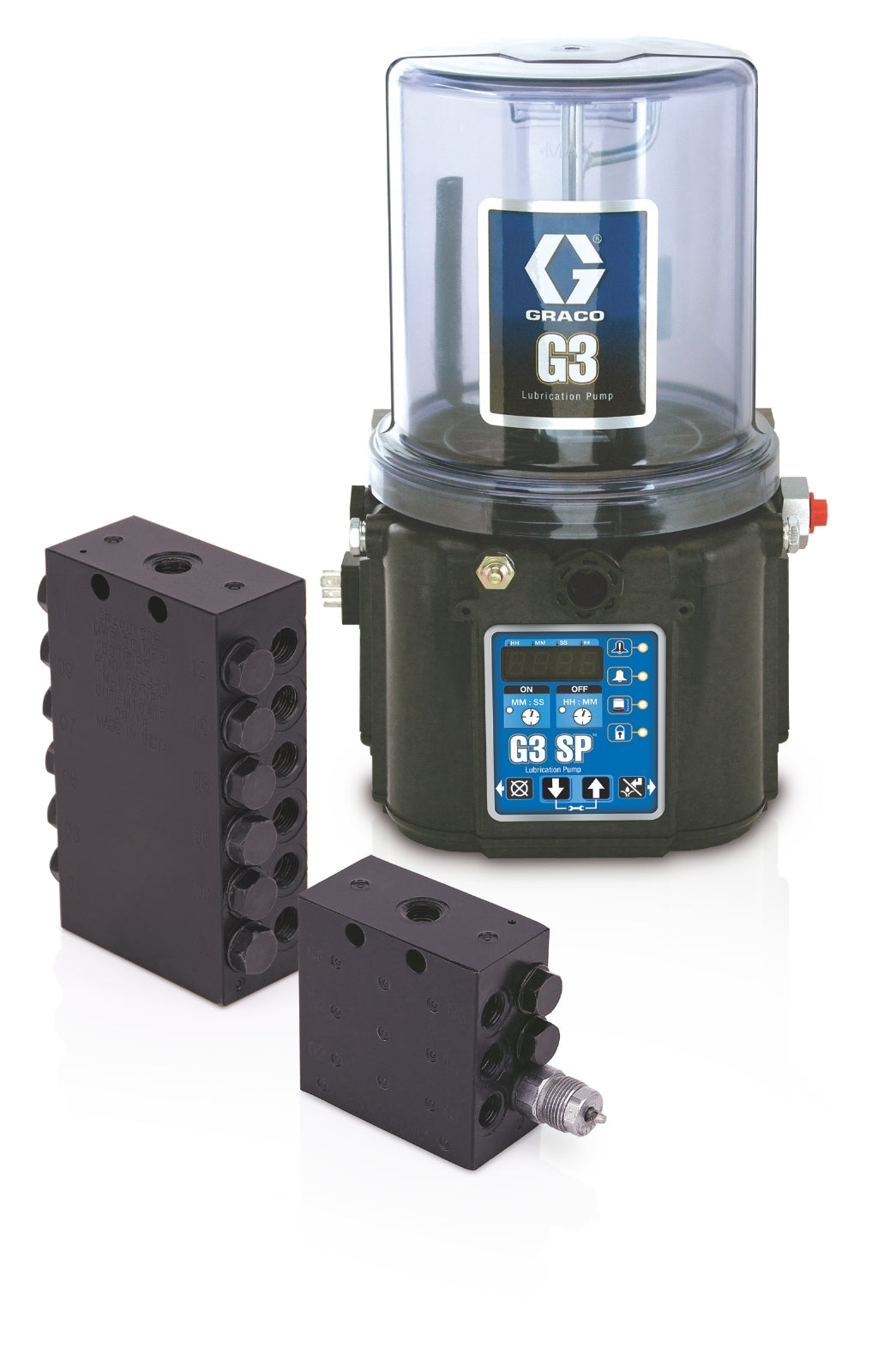

Compact Series Progressive (CSP) valve with broad market versatility. Combine with field-proven G-Series pumps for a complete system solution.

  • 1/8 inch NPT inlet
  • Space efficient design with 6 outlets, without indicator
  • Outlets can be combined to meet larger bearing needs
  • Built-in durability with zinc iron plating to stand up to harsh environments
  • High output pressure - maximum working pressure of 350 bar (5,076 psi) for both oil and grease
