Graco CSP Divider Valve, 1/8 inch BSPP, 8 Outlets, 24Z478
Regular price
Rs. 14,700.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Technical Specifications
| Specification | Details |
|---|---|
| Maximum Working Pressure (psi) | 5076 |
| Maximum Working Pressure (kPa) | 35000 |
| Maximum Working Pressure (bar) | #350 |
| Maximum Operating Temperature (°F) | 212 |
| Maximum Operating Temperature (°C) | 100 |
| Maximum NLGI Grade | #2 |
| Inlet Size (mm) | 3.175 |
| Inlet Size (in) | 1/8 |
| Inlet Size (cm) | 0.3175 |
| Divider Valve Series | CSP |
| Discharge Per Piston Stroke (in³) | N/A |
| Minimum Working Pressure (bar) | 15 |
| Minimum Working Pressure (kPa) | 1500 |
| Minimum Working Pressure (psi) | 217.5 |
| Model | Trabon |
| Number of Outlets | 8 |
| Outlet Thread Gender | Female |
Product Description

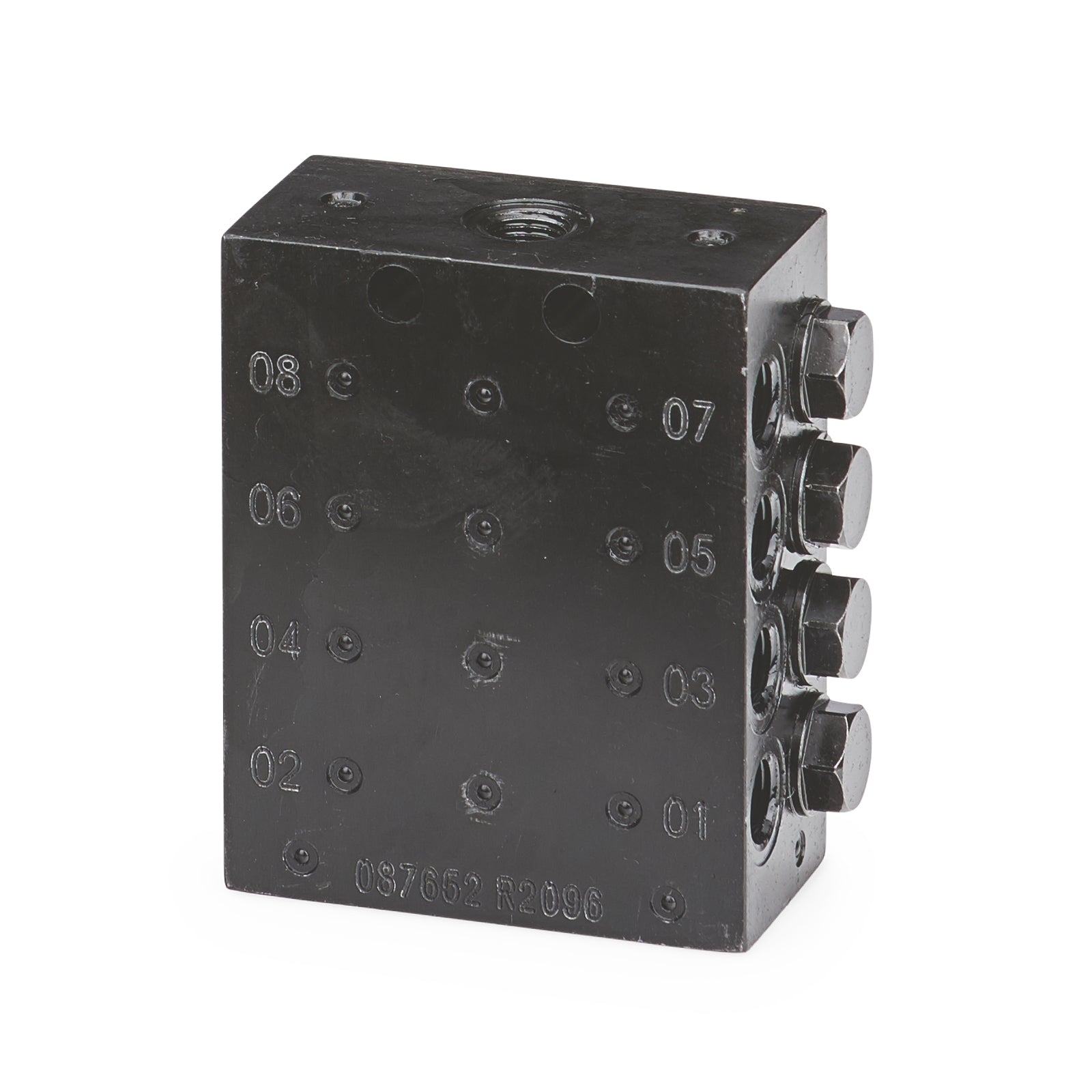

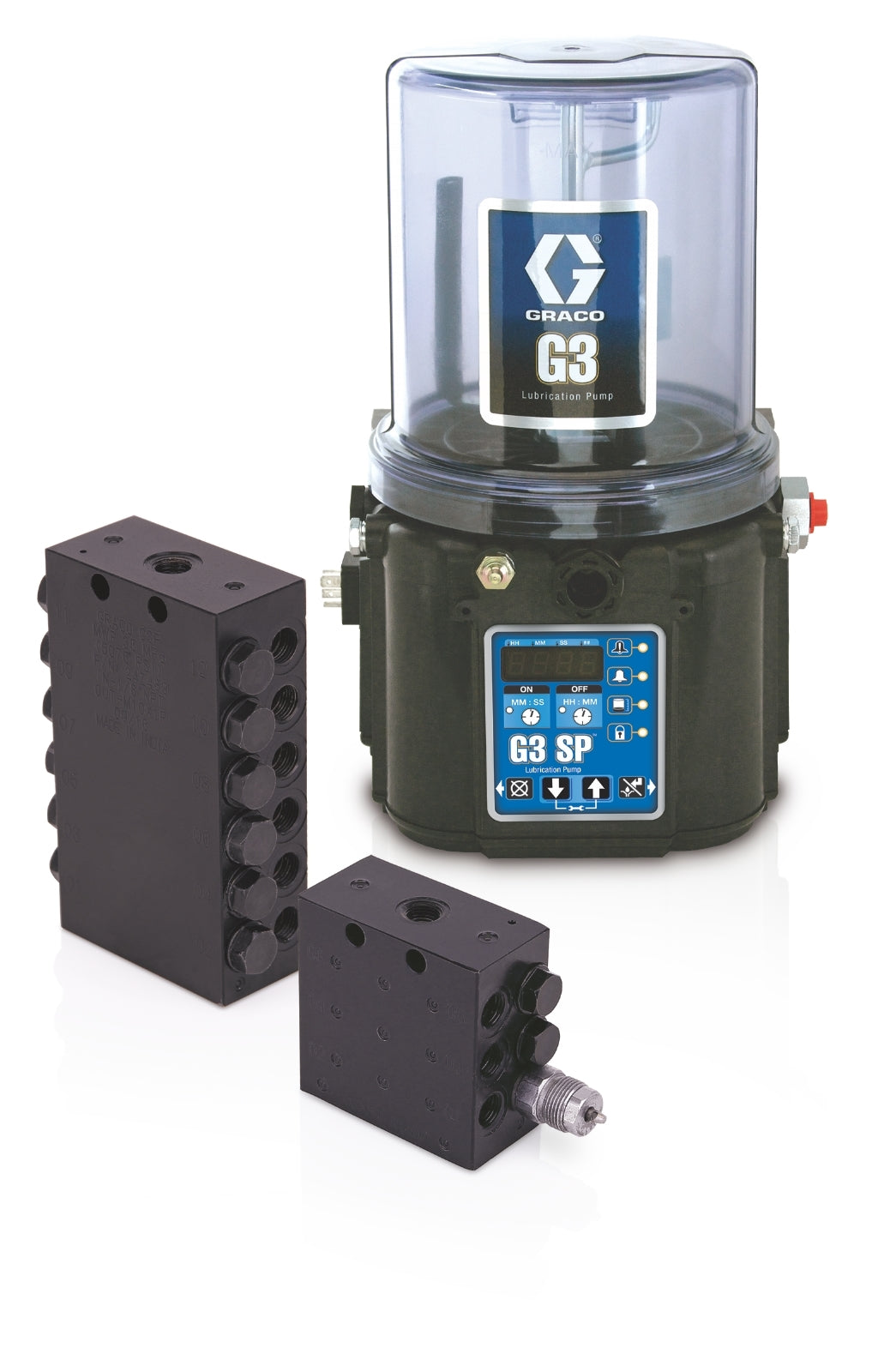

Compact Series Progressive (CSP) valve with broad market versatility. Combine with field-proven G-Series pumps for a complete system solution.
- 1/8 inch BSPP inlet
- Space efficient design with 8 outlets, without indicator
- Outlets can be combined to meet larger bearing needs
- Built-in durability with zinc iron plating to stand up to harsh environments
- High output pressure - maximum working pressure of 350 bar (5,076 psi) for both oil and grease
