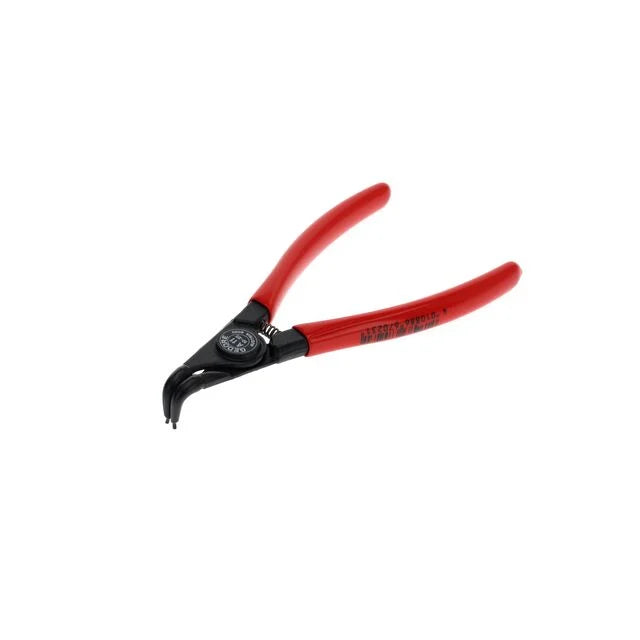

Gadore Assembly pliers for external circlips angled 4-9 mm 8000 A 11G
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Technical Specifications
| Brand Name | Gedore |
| Design non-sparking | No |
| Joint types | applied joint |
| Handle design | dip-insulated |
| Hardening process | oil-hardened and tempered |
| Length of head | 33 mm |
| Material | Chrome‑vanadium steel |
| Standard | DIN 5254 - Form B |
| Opening spring present | Yes |
| Compliance | compliant |
| Tip diameter | 1,1 mm |
| Shaft diameter for Benzing clamping rings | 3,0-11,0 |
| Shaft diameter for Seeger grip rings | 4,0-9,0 |
| Total width [mm] | 70 mm |
| Total height [mm] | 12 mm |
| Total length [mm] | 135 mm |
| Weight [kg] | 0,099 kg |
| Contents (Qty of pieces) | 1 |
Product Description
- For shafts without groove
- For self-locking Seeger grip rings and for self-locking Benzing clamping rings
- Similar to DIN 5254 Form B
- 90° angled jaws
- With opening spring and adjusting screw to limit opening
- High degree of assembly reliability, the limit opening rules out any over-tensioning of the smallest of retaining rings
- Forged GEDORE chrome-vanadium special hardened and tempered steel
- Precision machined, oil hardened and annealed
- Black, with blue dipped handles
