STECH DSHT M III Micro Hardness Tester with Stand
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
TECHNICAL DESCRIPTION
| Applied Load | 78 gf |
| Indenter Angle | 30° |
| Indenter Diameter | 0.79 mm |
| Indenter Extension | 1.25 mm |
| Indication Scale | 0 – 100 Shore M |
| Sweep | 180° |
| Resolution | 1 point |
| Force on Indenter | 78 gm |
Available Models: Analog / Digital Scale: Shore M
Key Features
- Conforms to ASTM D2240 (Type M) and ISO 7619 (Type M)
- Available in Analog and Digital models
- Suitable for micro or thin rubber components
- High precision and repeatable readings
- Ergonomic stand-mounted design for stable operation
- Quick measurement with full scale reading
- Reduced test force for fine or finished products
- Ideal for laboratory and R&D testing

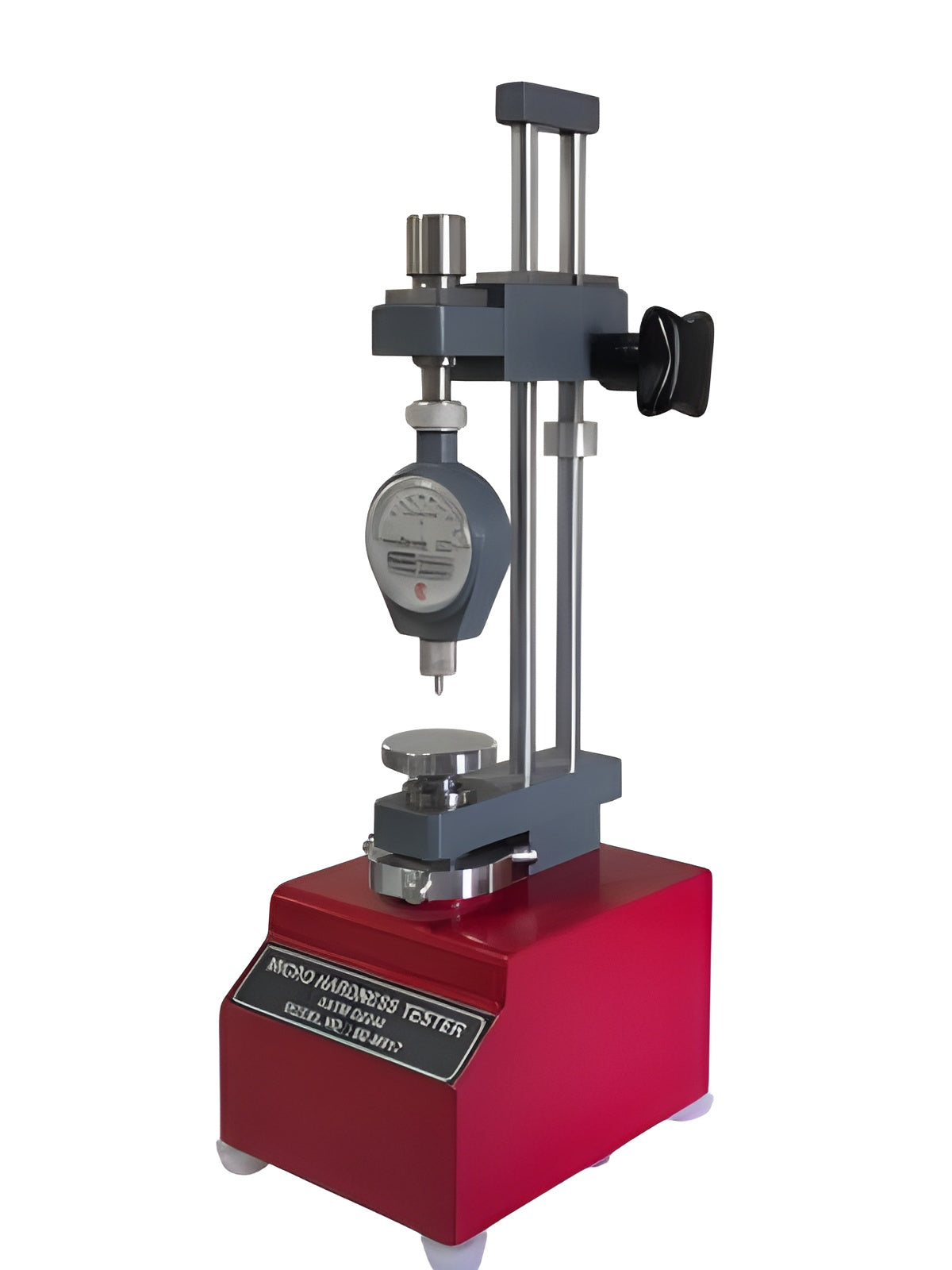

Technical Overview
The STECH DSHT M III Micro Hardness Tester is developed to meet the need for precise hardness testing on thin, irregularly shaped specimens that cannot be tested using standard durometers. The instrument uses a lighter mainspring and smaller indenter for enhanced sensitivity and accuracy. Its high-quality stand minimizes operator error and ensures stable, repeatable measurements. The total force required to achieve a full-scale reading is approximately 10% of a standard Type A durometer, making it ideal for testing finished products rather than specially prepared samples.
