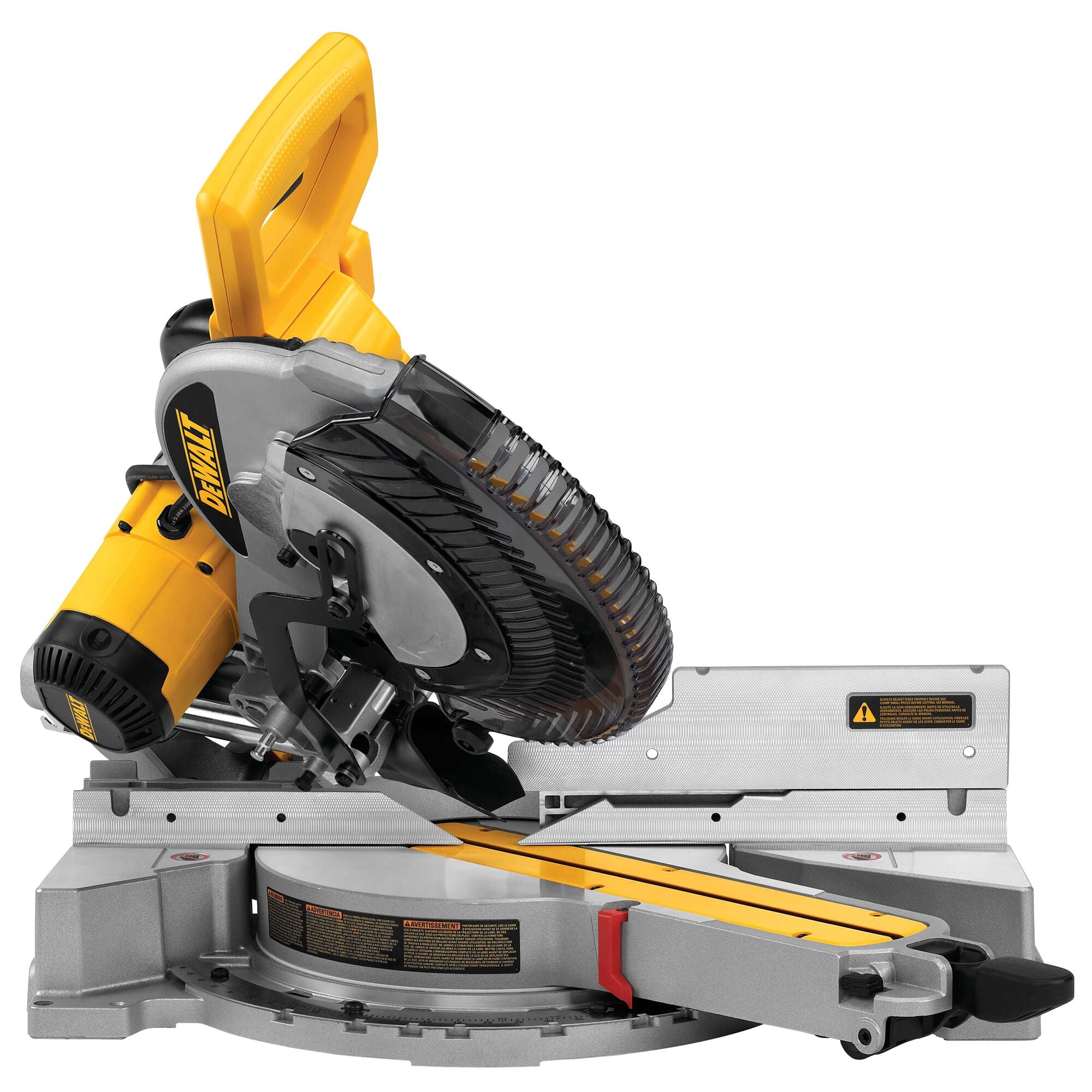

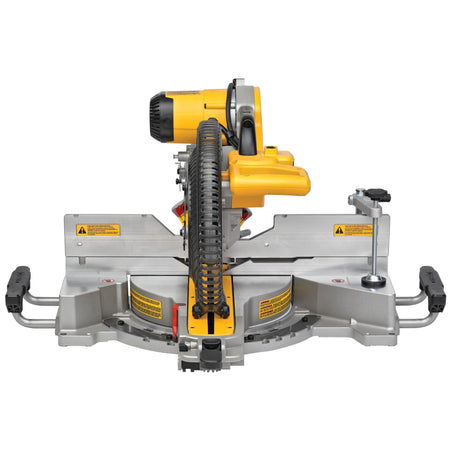

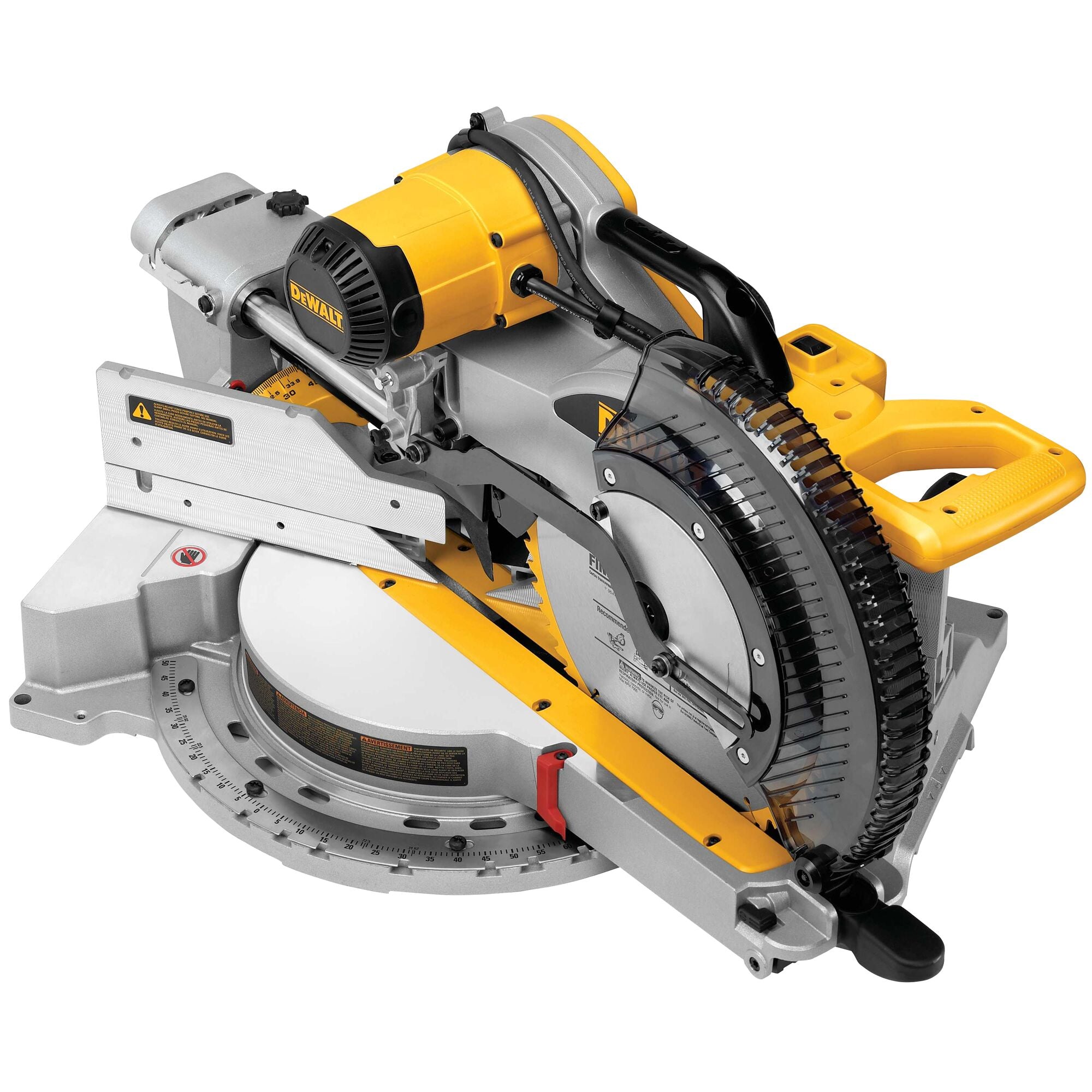

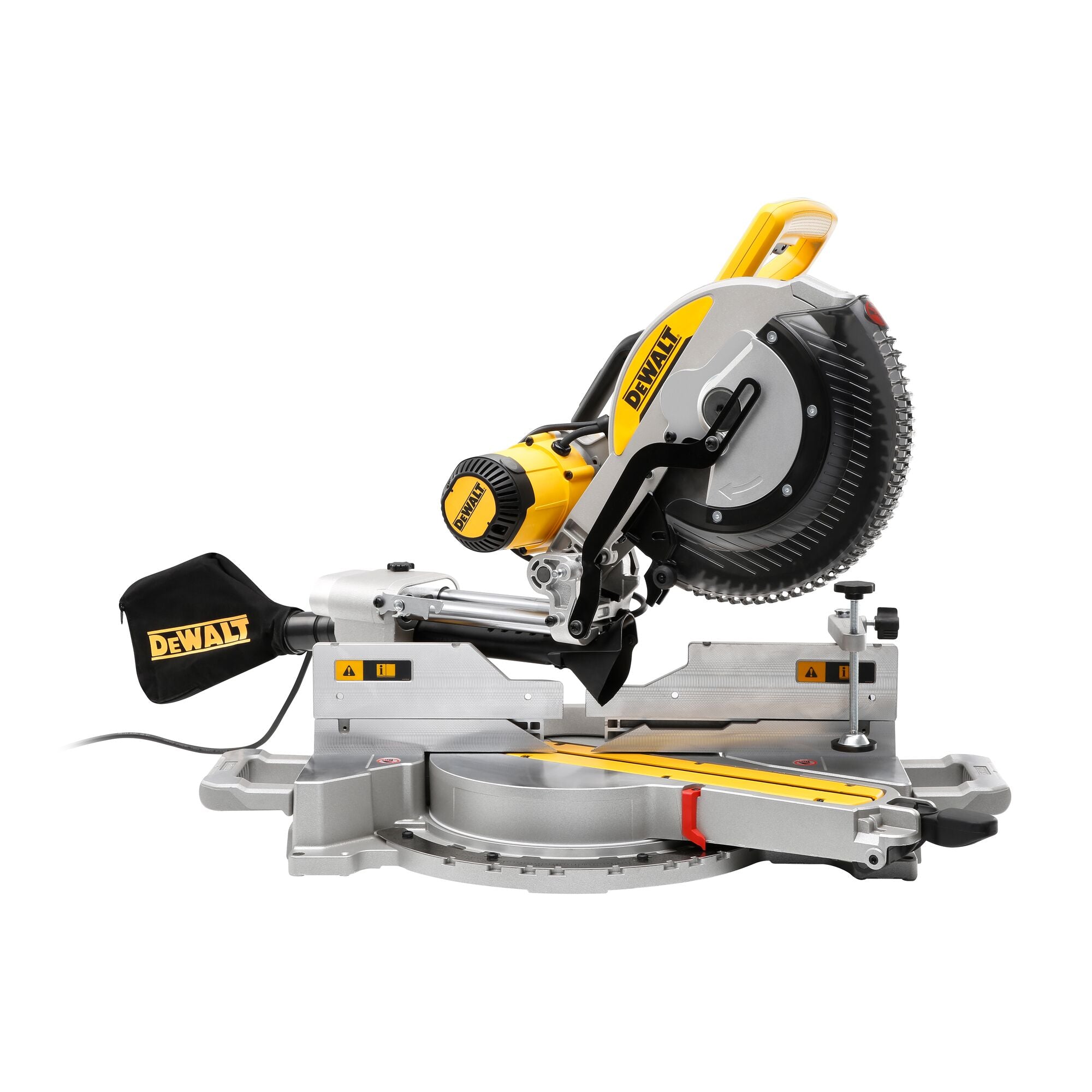

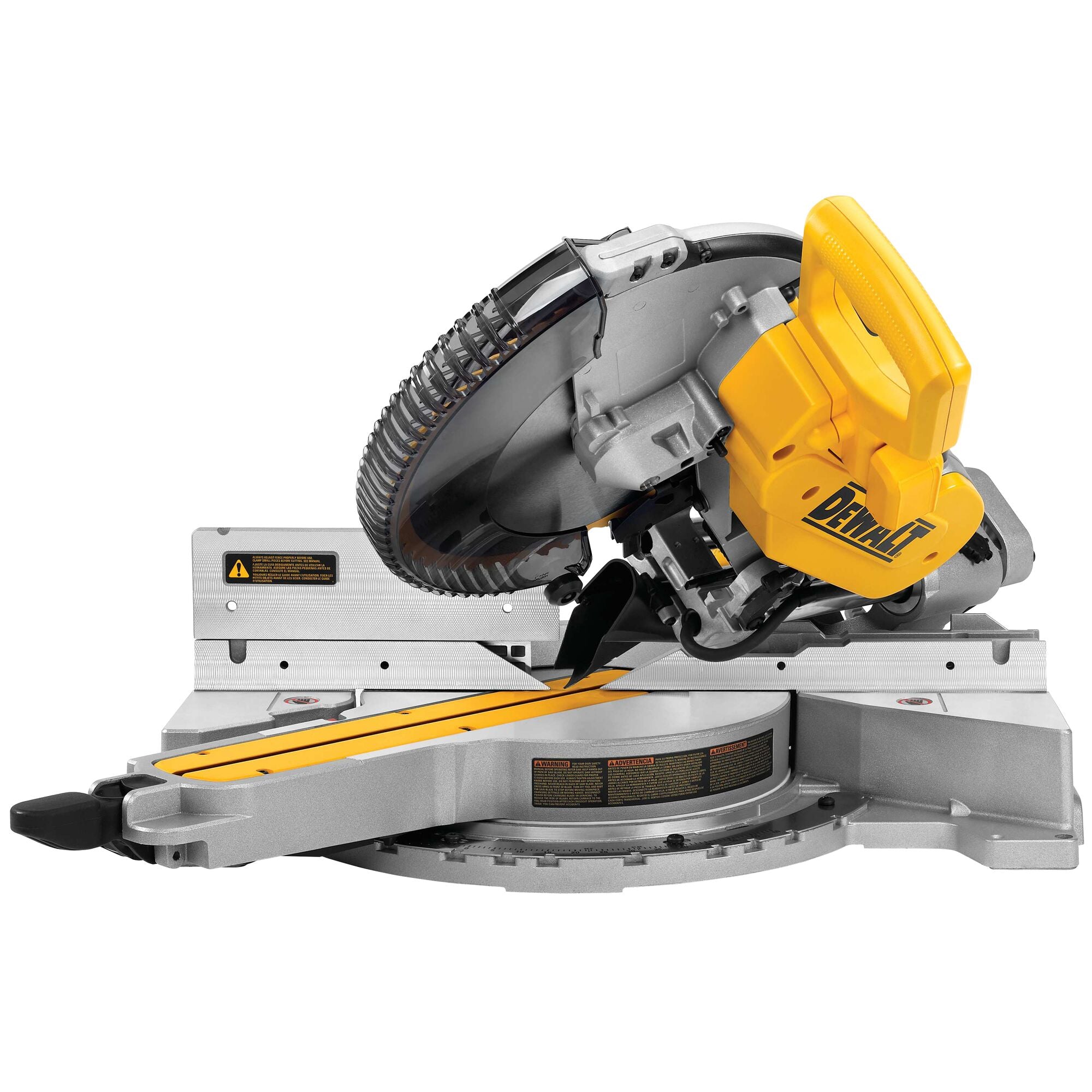

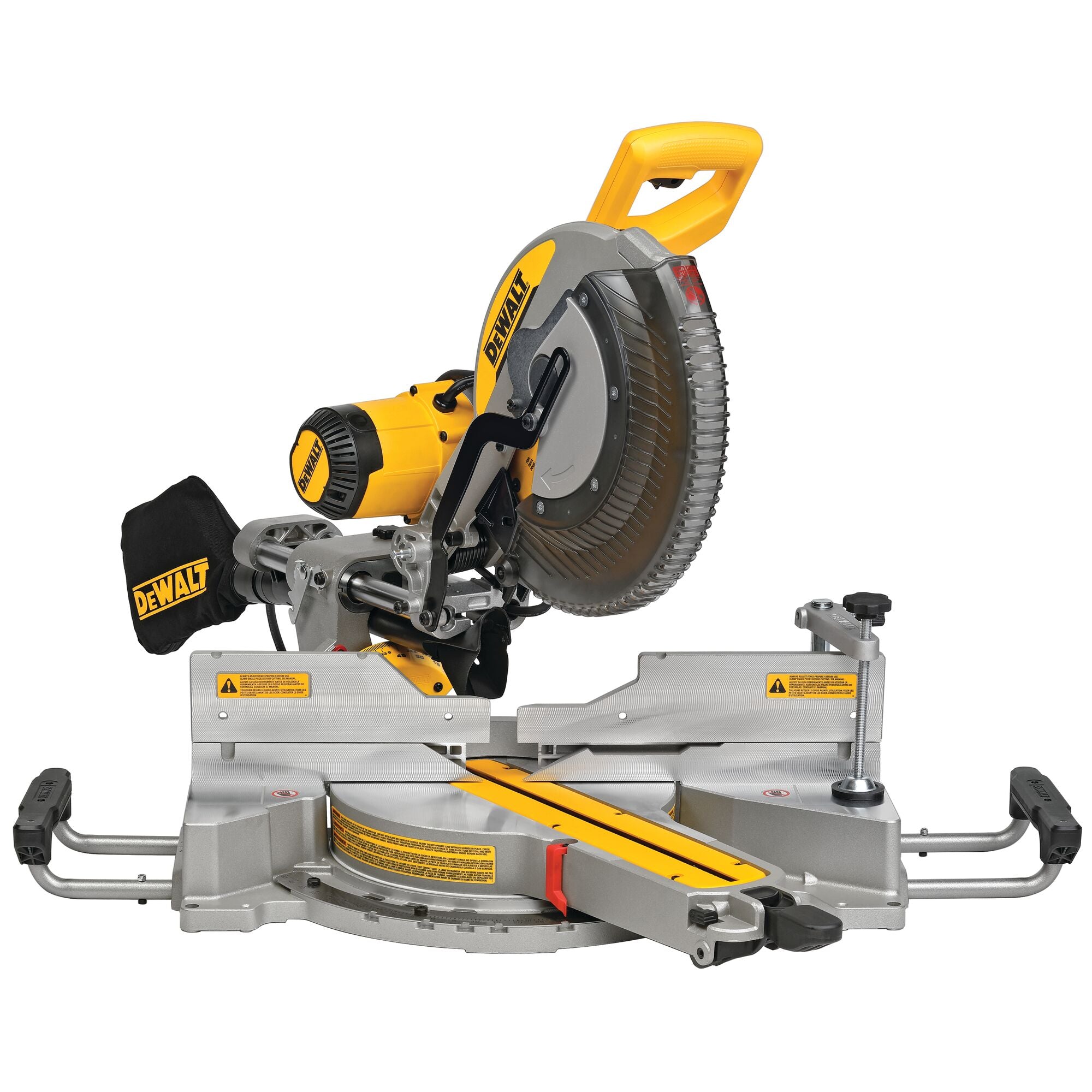

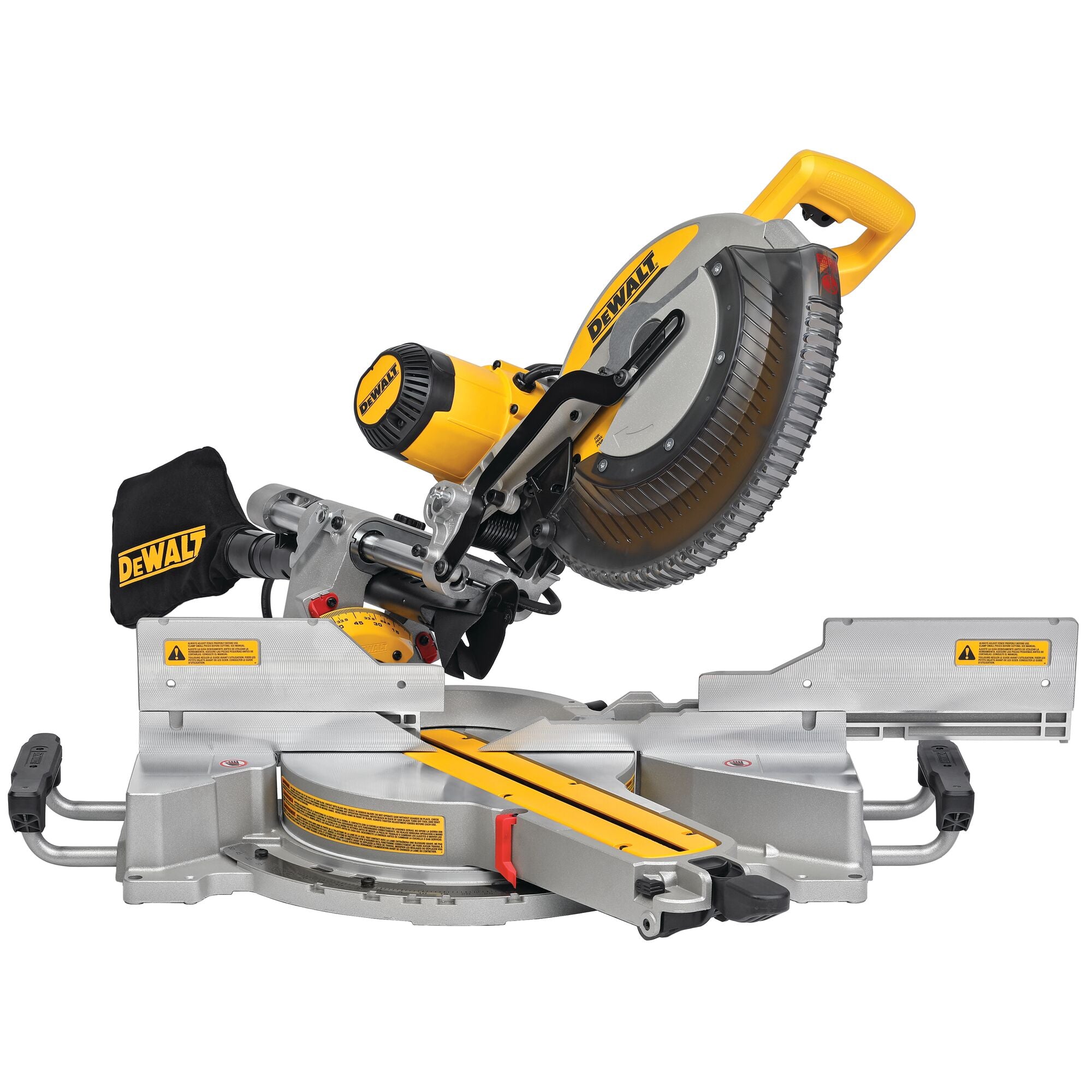

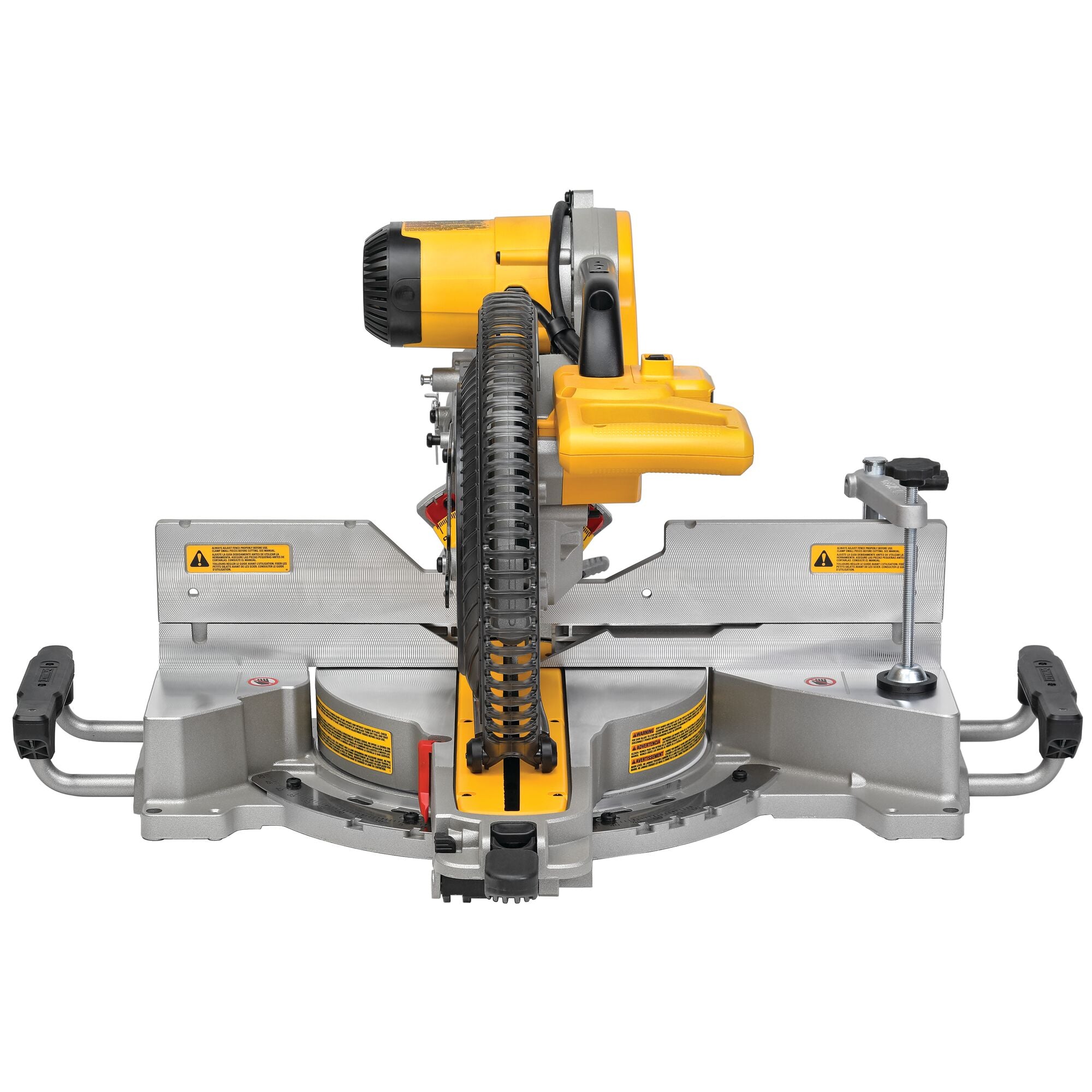

Dewalt 305mm Compound Slide Mitre Saw with variable speed DWS780-QS
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
TECHNICAL DETAILS
| Blade Bore [Metric] | 30 mm |
| Blade Speed | 1900-3800 rpm |
| Max. Cutting Capacity (45°/45°) [Metric] | 211 x 63 mm |
| Max. Depth of Cut [Metric] | 170 mm |
| Saw Blade Thickness [Metric] | 2.6 mm |
| Bevel Capacity | 49°/49° |
| Max. Cutting Capacity (90°/90°) [Metric] | 303 x 110 mm |
| Product Width [Metric] | 470 mm |
| Possible Mitre Angles | 50°/60° |
| No Load Speed (RPM) | 1900-3800 |
| Max. Cutting Capacity (45°/90°) [Metric] | 211 x 112 mm |
| Product Height [Metric] | 396 mm |
| Product Weight [Metric] | 25.5 Kg |
| Blade Diameter [Metric] | 305 mm |
| Supplied in Storage Case Indicator | No |
| Uncertainty K1 (Vibration) | 1.5 m/s2 |
| Max. Cutting Capacity (90°/45°) [Metric] | 268 x 63 mm |
| Power Source | Corded |
| Packaging | Carton |
| Power Input | 1675 W |
| Product Length [Metric] | 770 mm |
PRODUCT DESCRIPTION

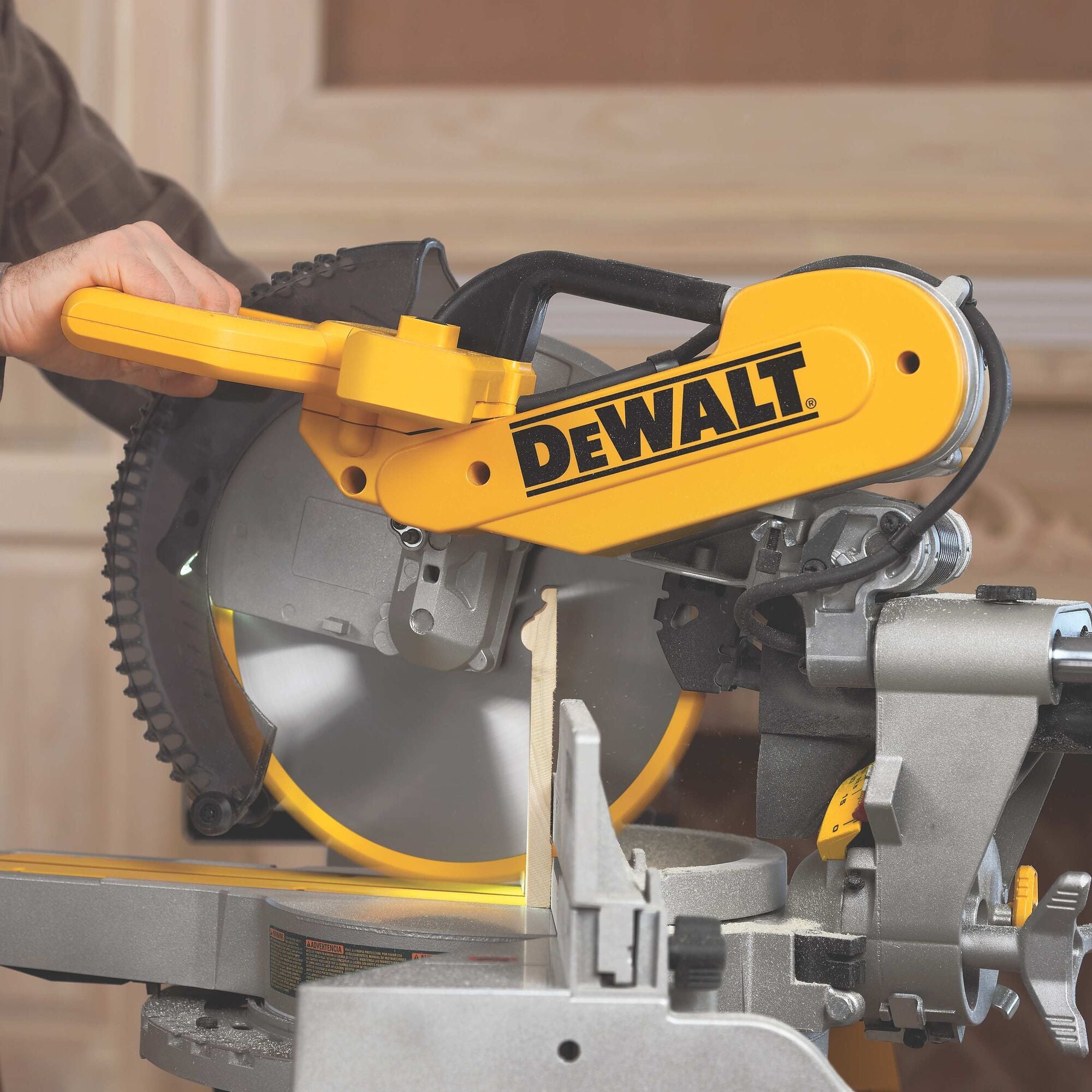

The 12 in. Double Bevel Sliding Compound Miter Saw has a 15 Amp motor and integrated XPS crosscut positioning system for adjustment-free, accurate cut line indication. Tall sliding fences support 7-1/2 in. of nested crown and 6-3/4 in. of base molding vertically. Exclusive Back Fence Design cuts up to 2x14 dimensional lumber at 90 lb increased miter capacity of 60 lb (R) and 50 lb; (L) features durable stainless-steel miter detent plate with cam lock for repeatable accuracy with easy adjustments.
Additional Features

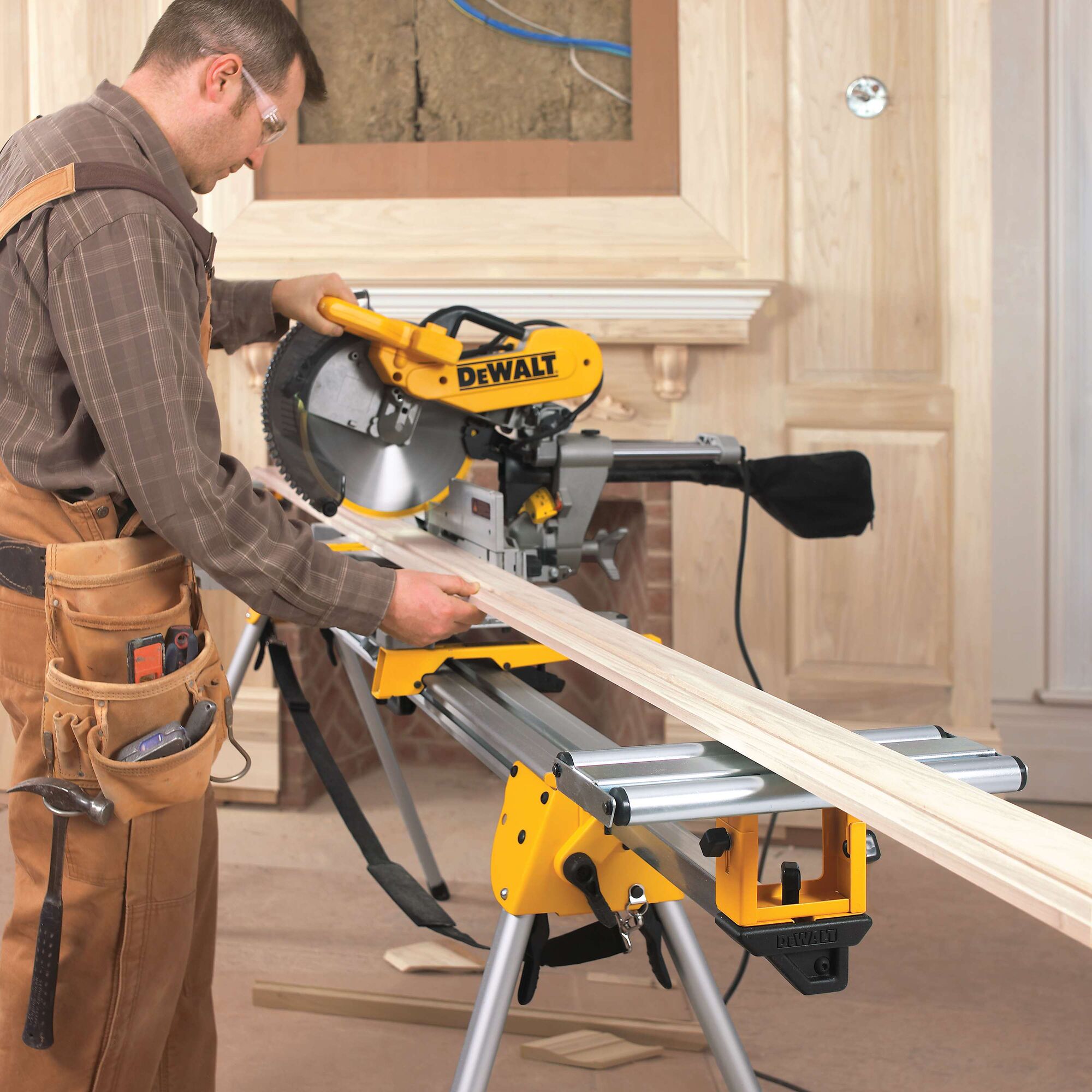

1. LARGE DUAL SLIDING FENCE: Provides maximum support in large material cuts at any angle or combination of angles

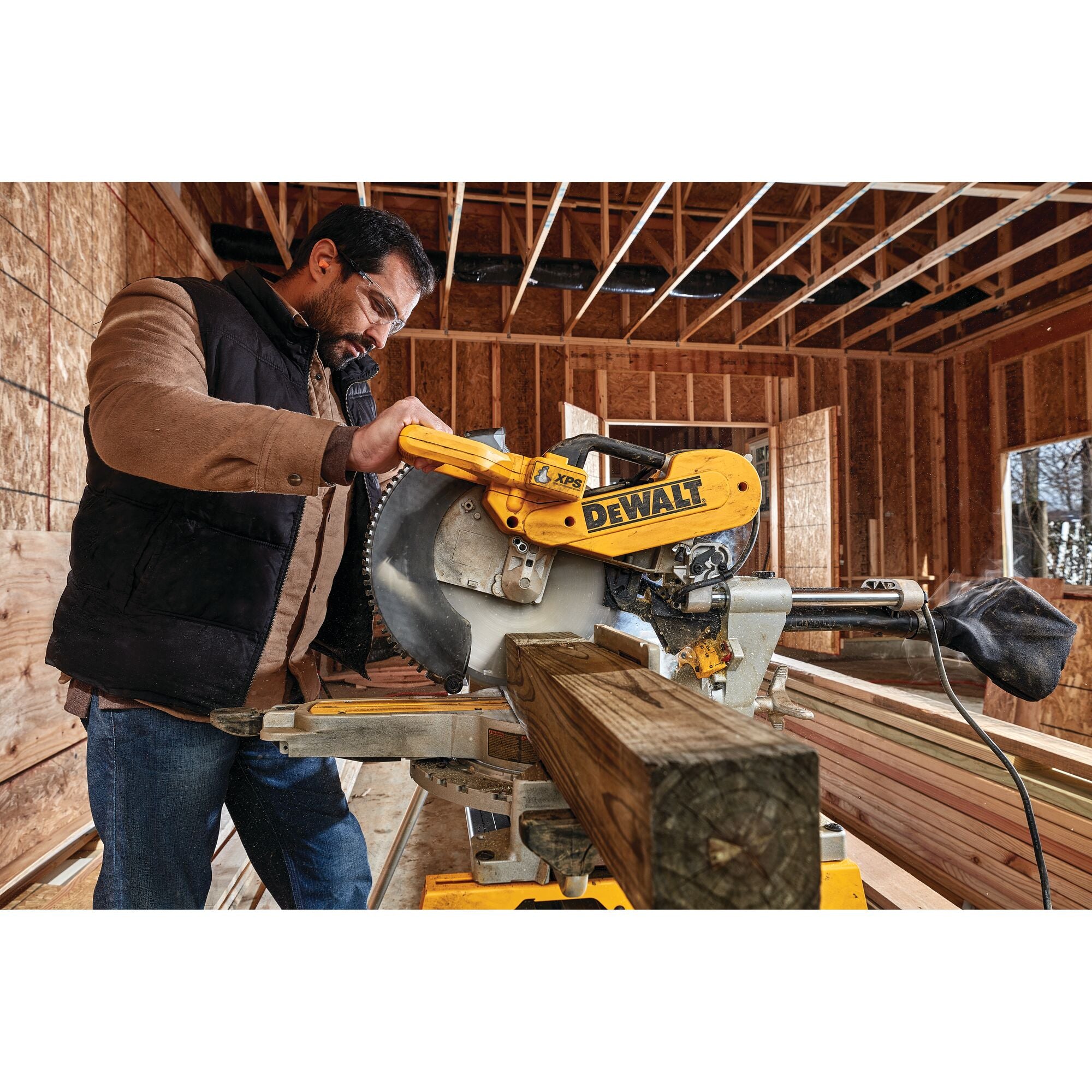

2. COMPACT & LIGHTWEIGHT: Huge cut capacities, with a lightweight compact design for easy transport around the jobsite

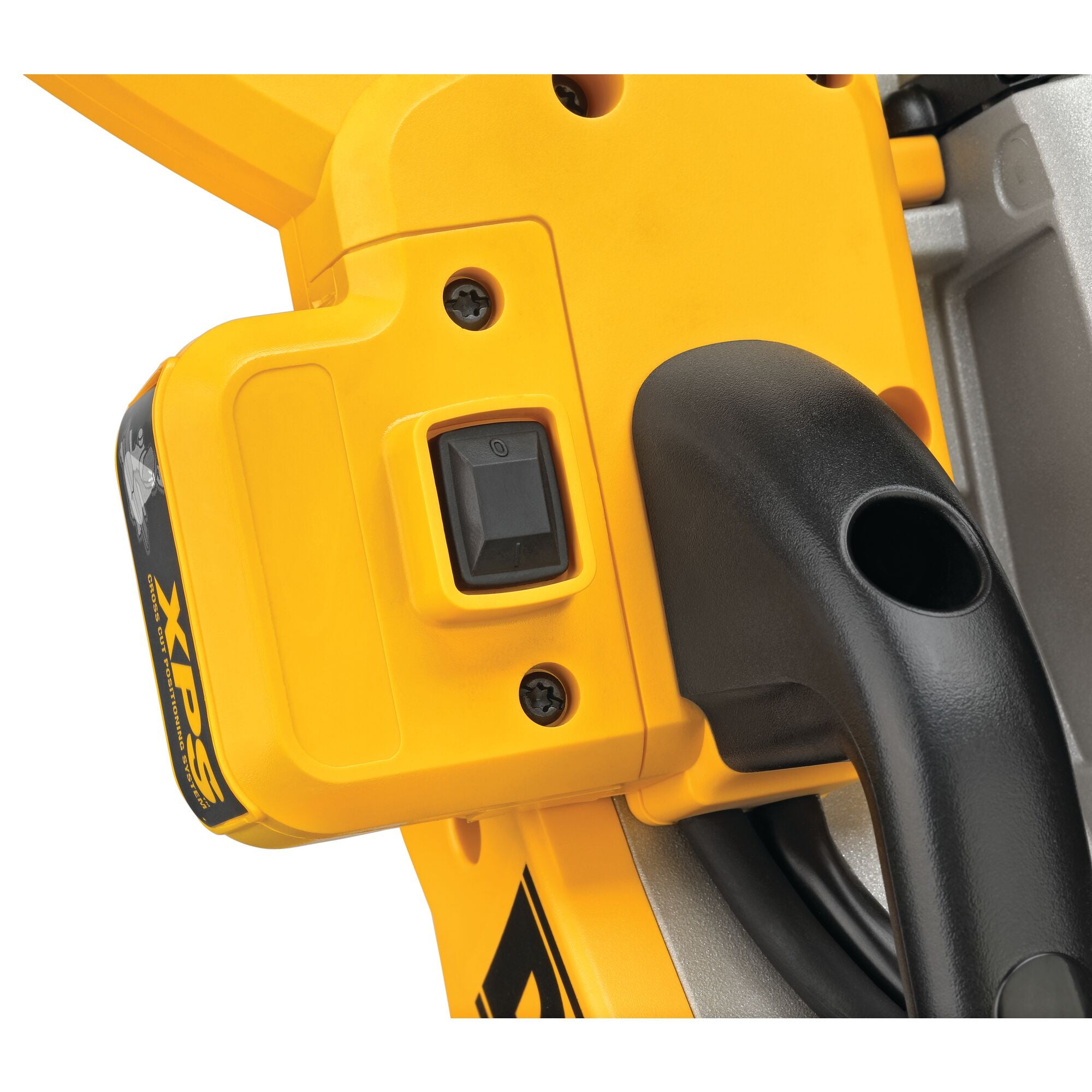

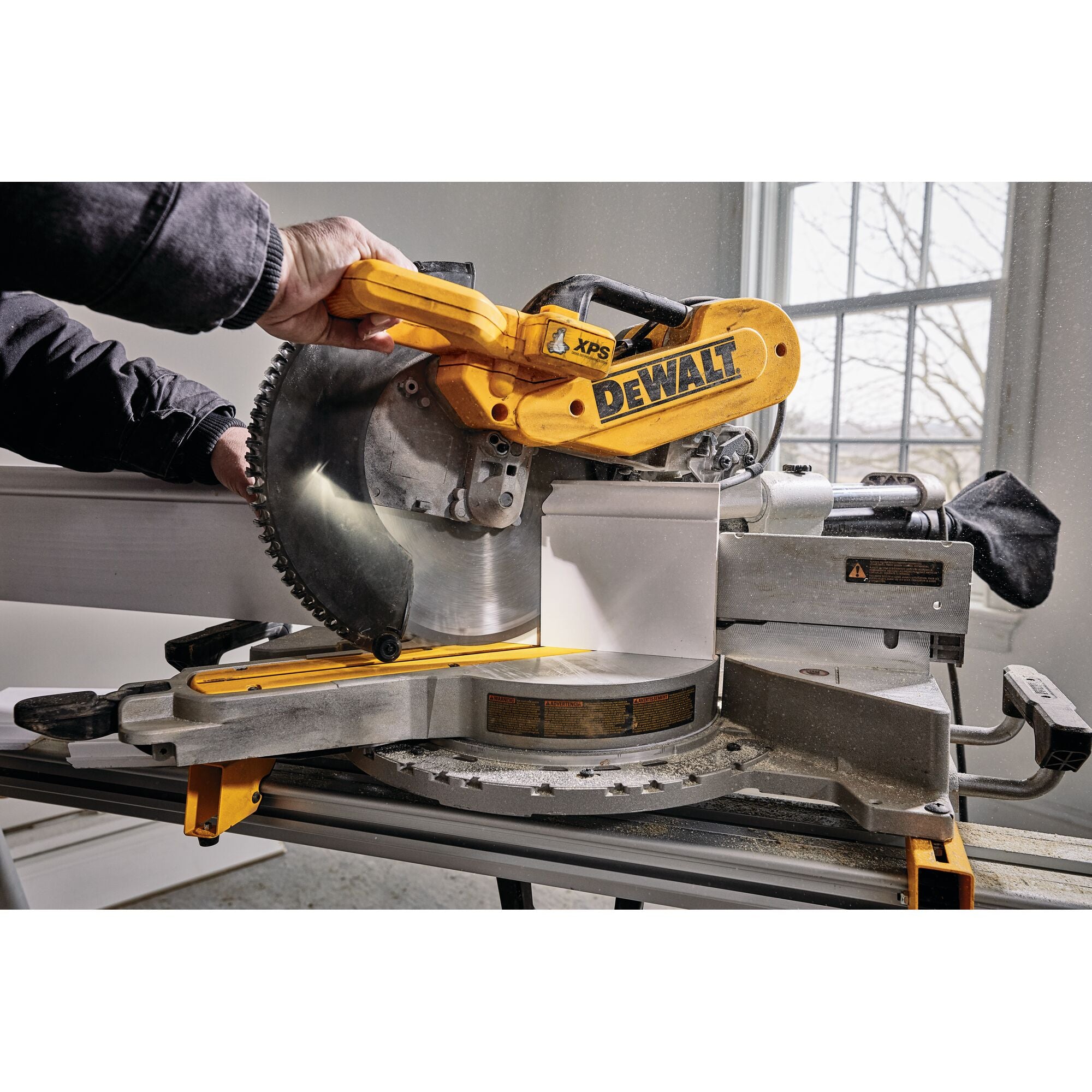

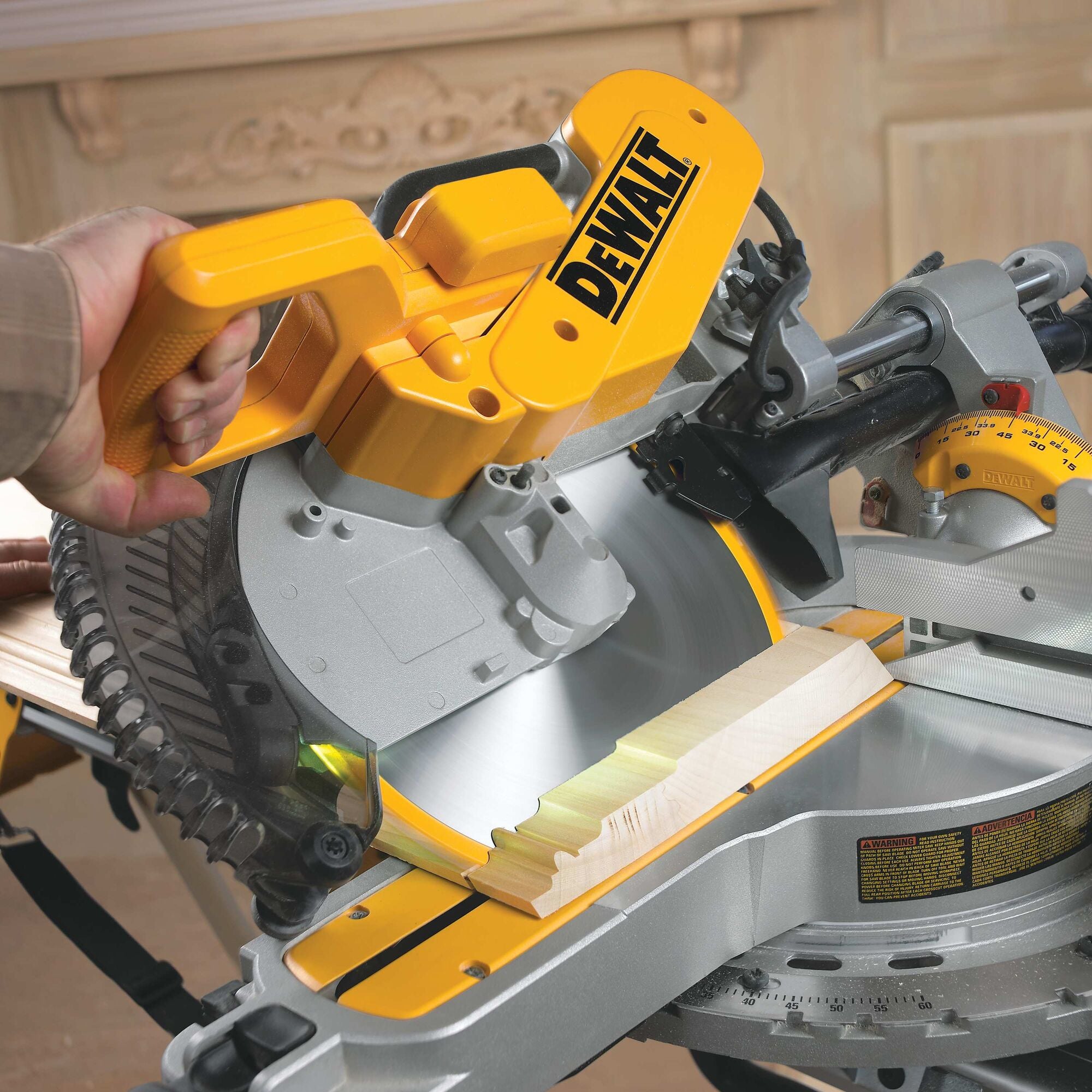

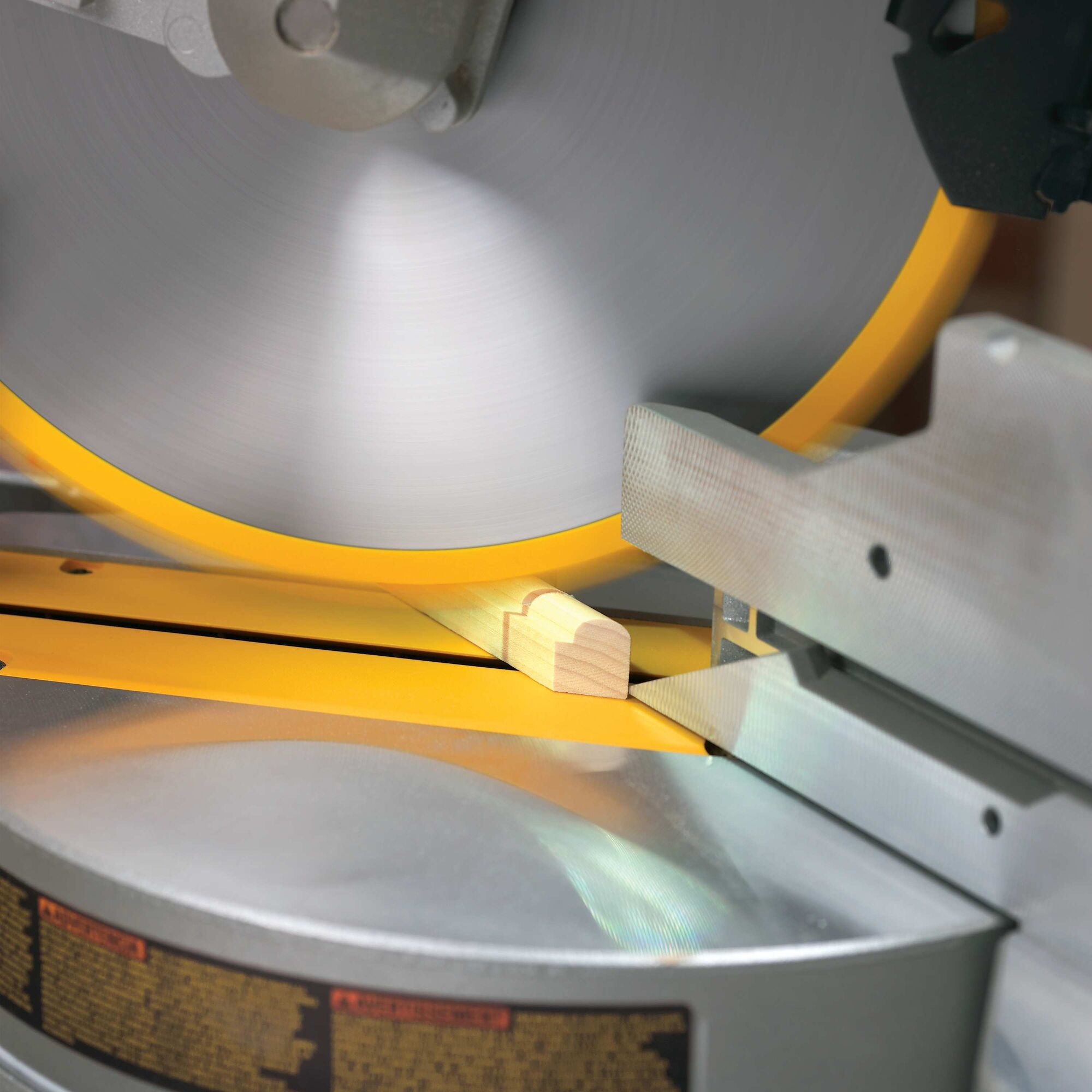

3. XPS SHADOWLINE: Provides fast accurate alignment of the blade with no adjustment required

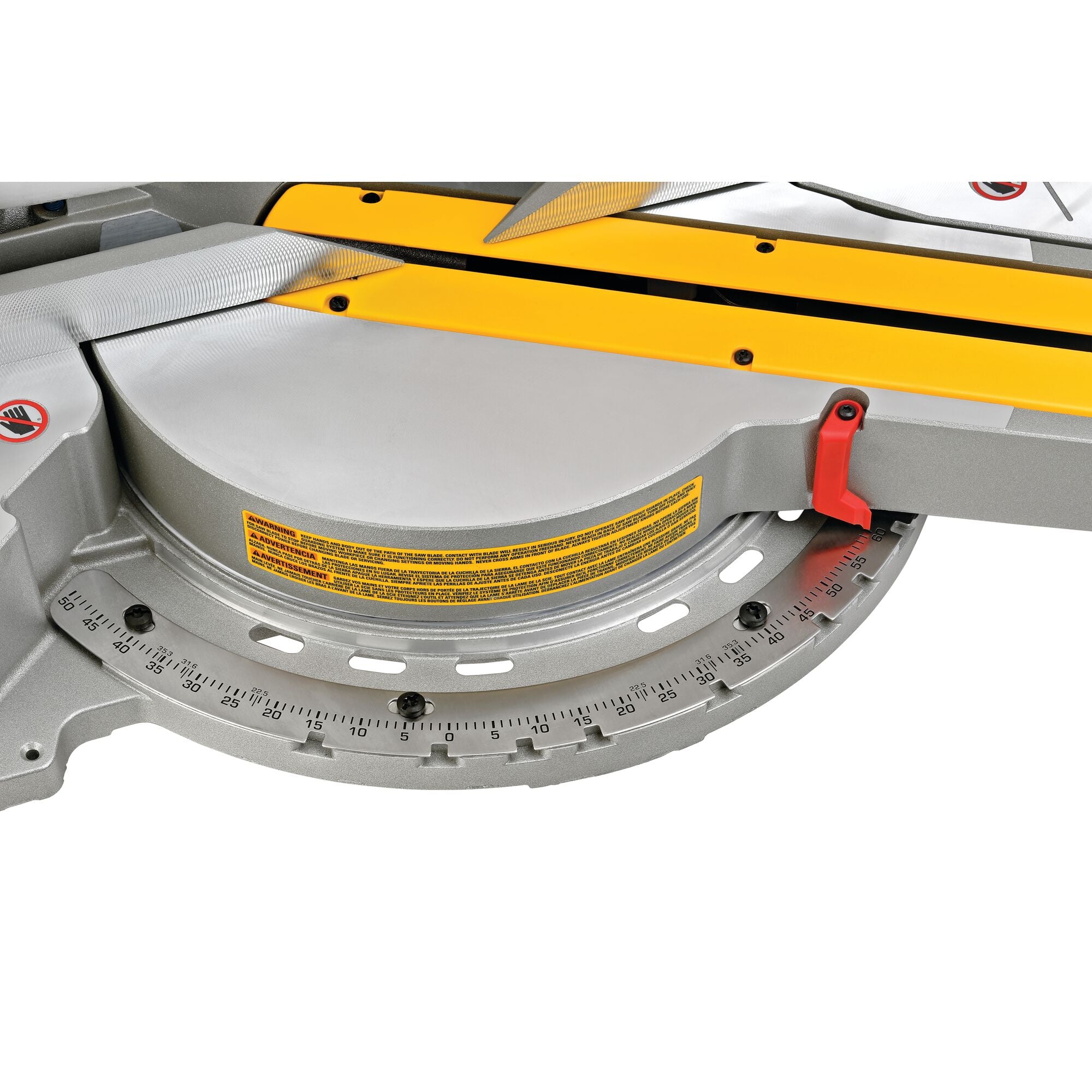

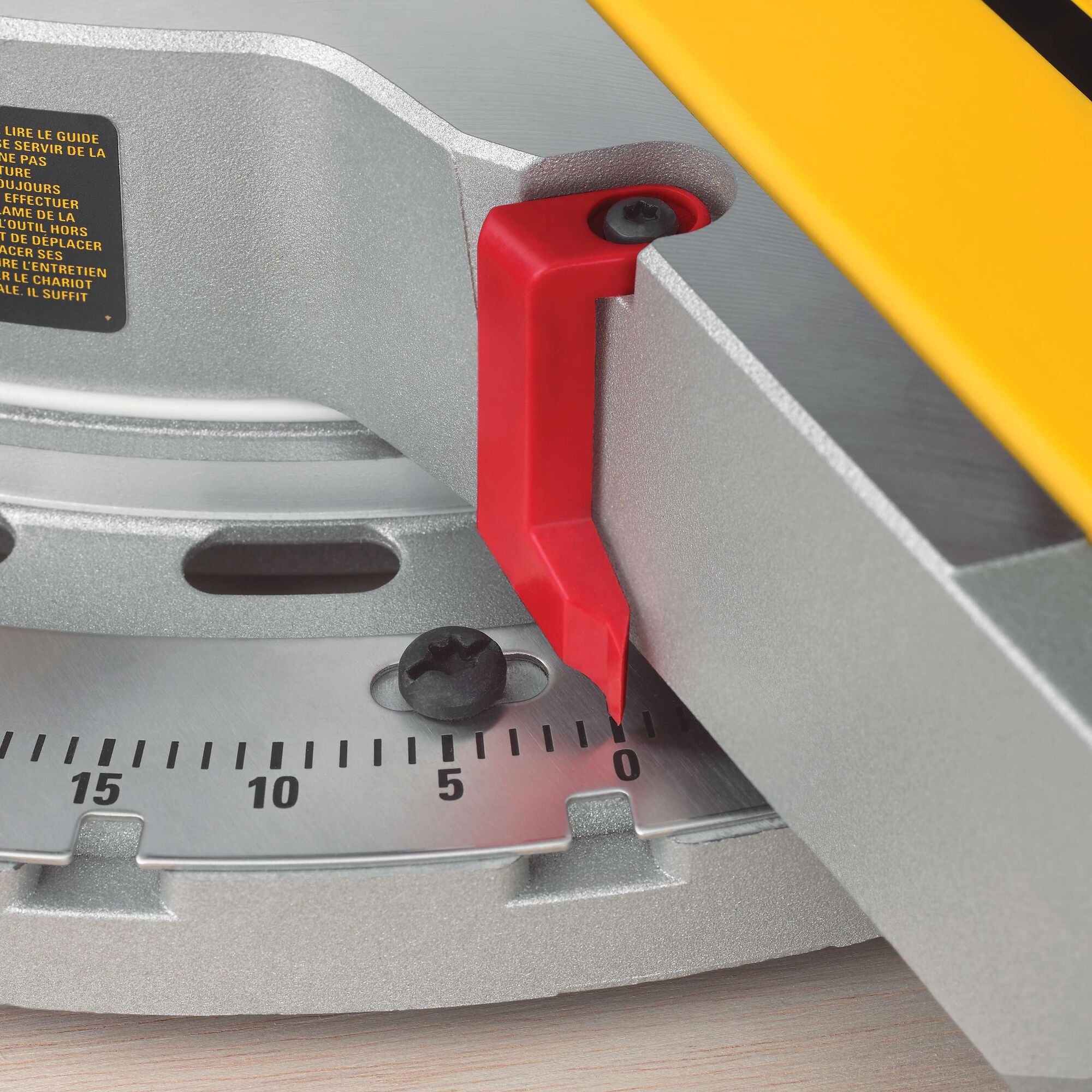

4. STAINLESS STEEL DETENT PLATE: Robust and easy to recalibrate, with common angles at 0, 12.25, 15, 22.5, 31.6 and 45 degrees

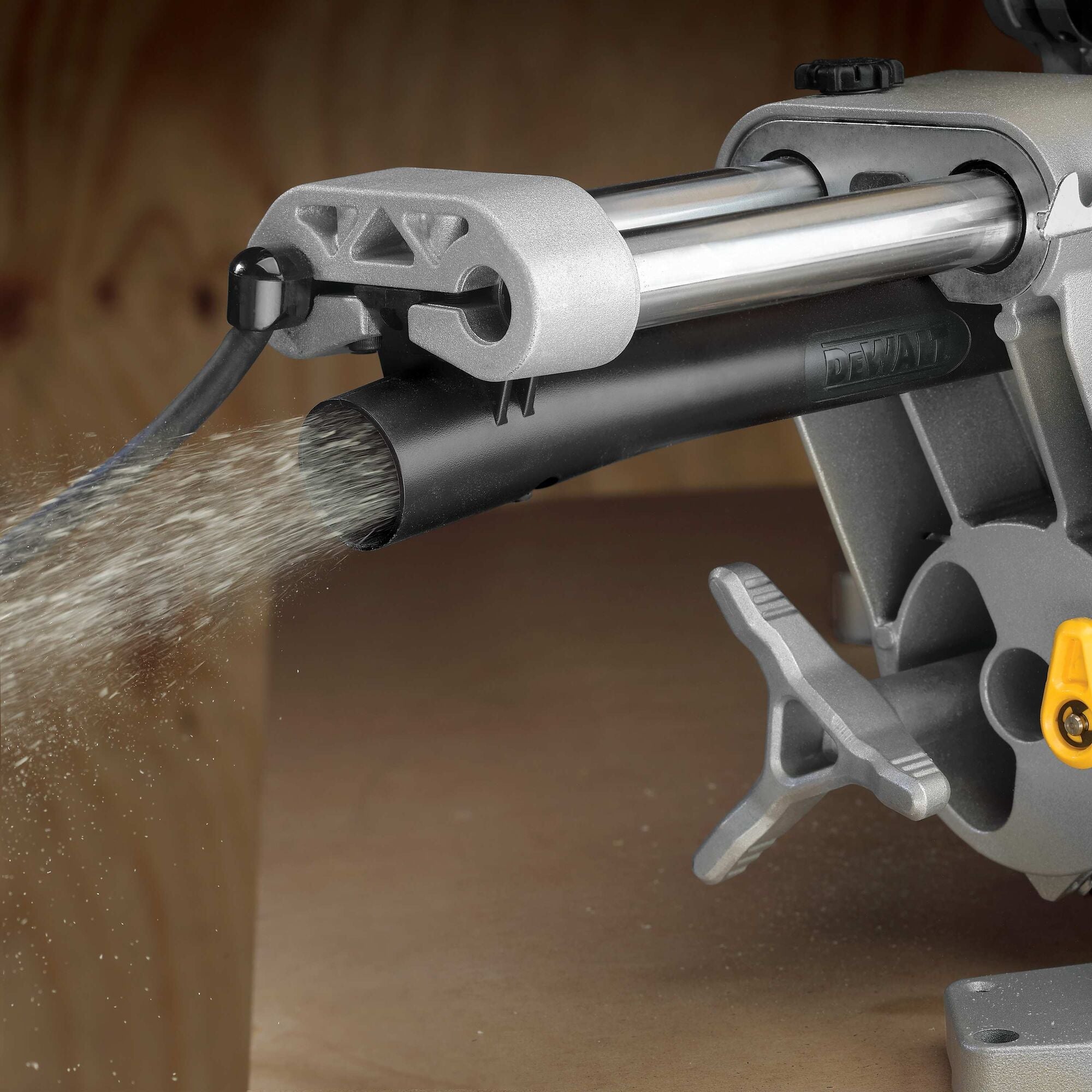

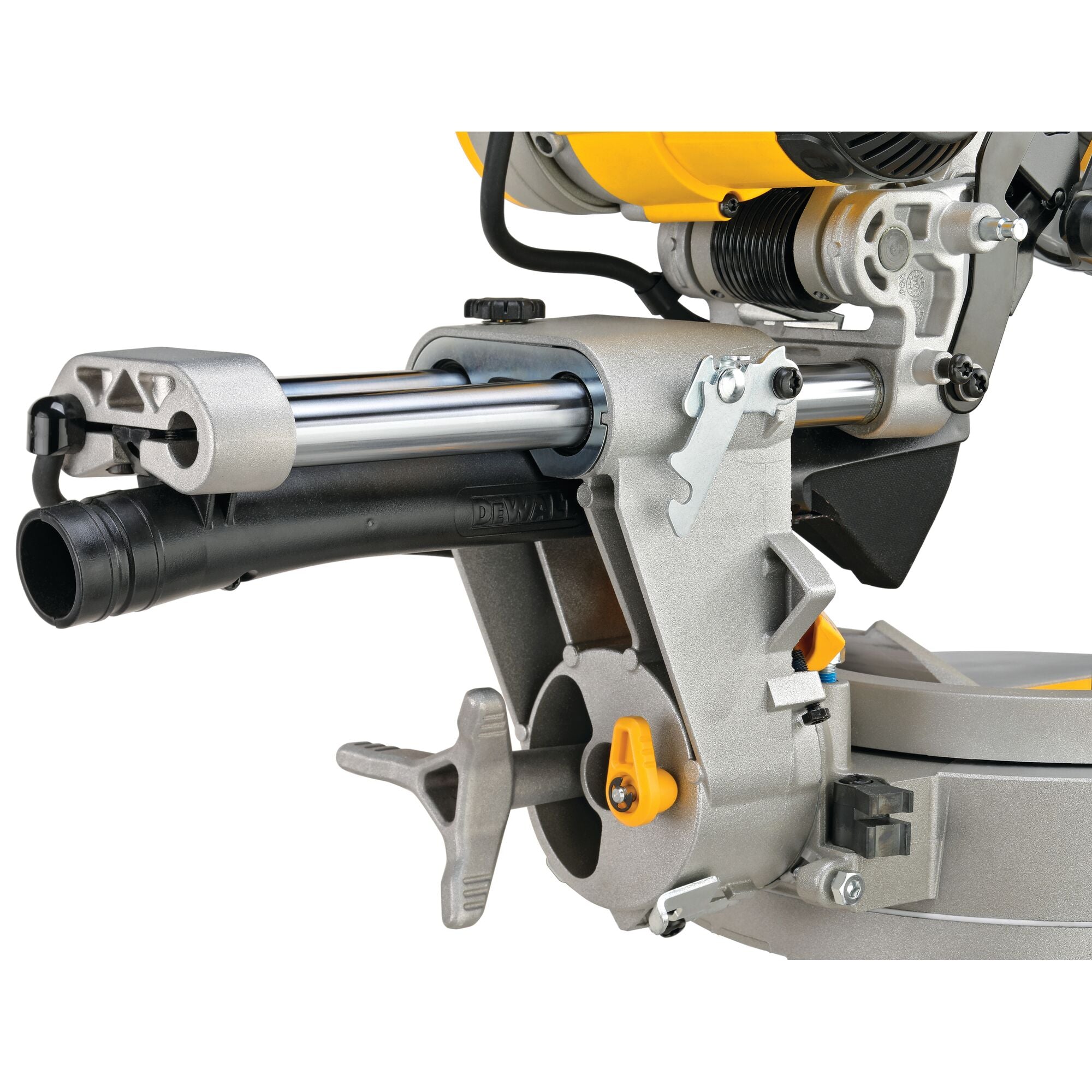

5. AIRLOCK DUST PORT: AirLock compatible dust extraction for simple connection

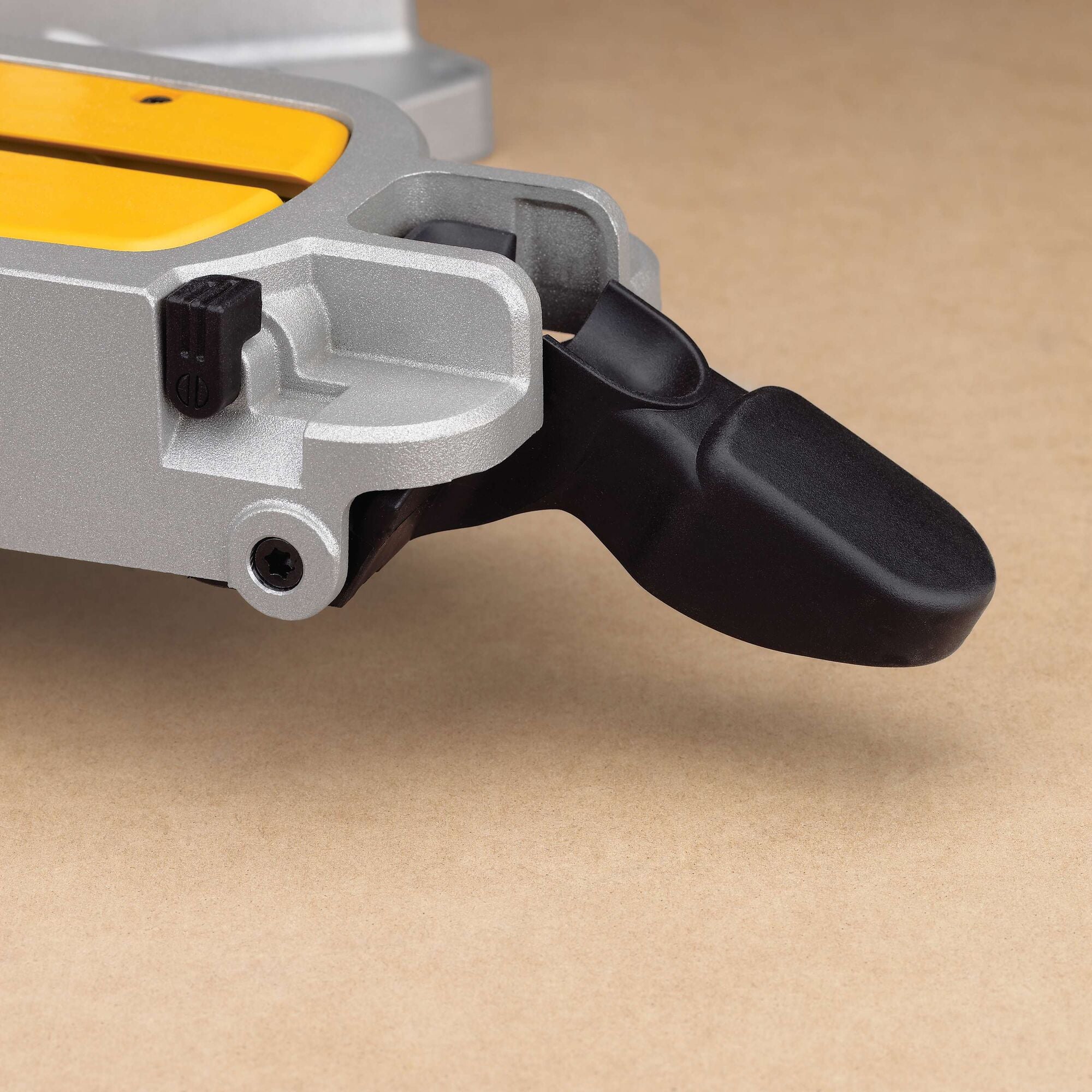

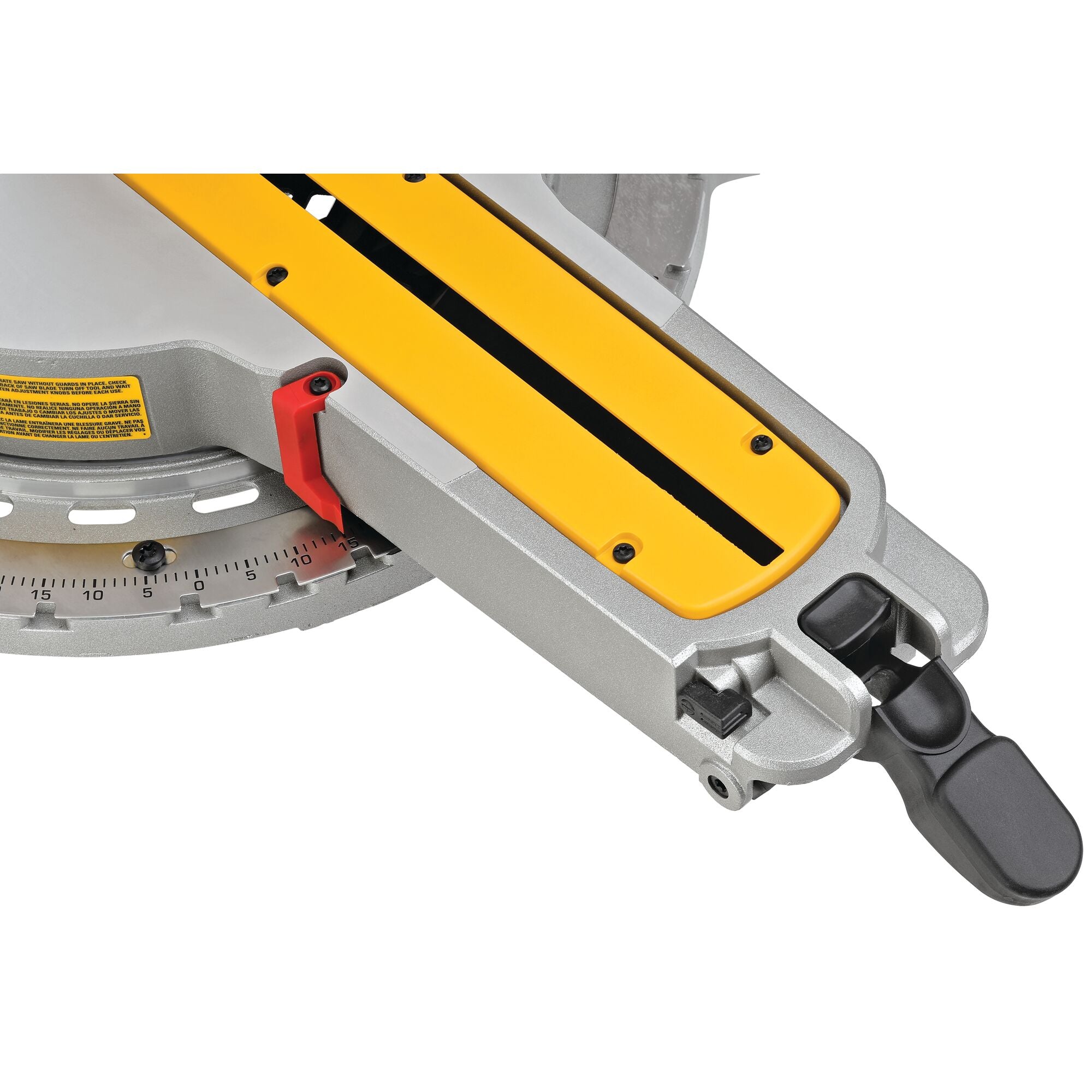

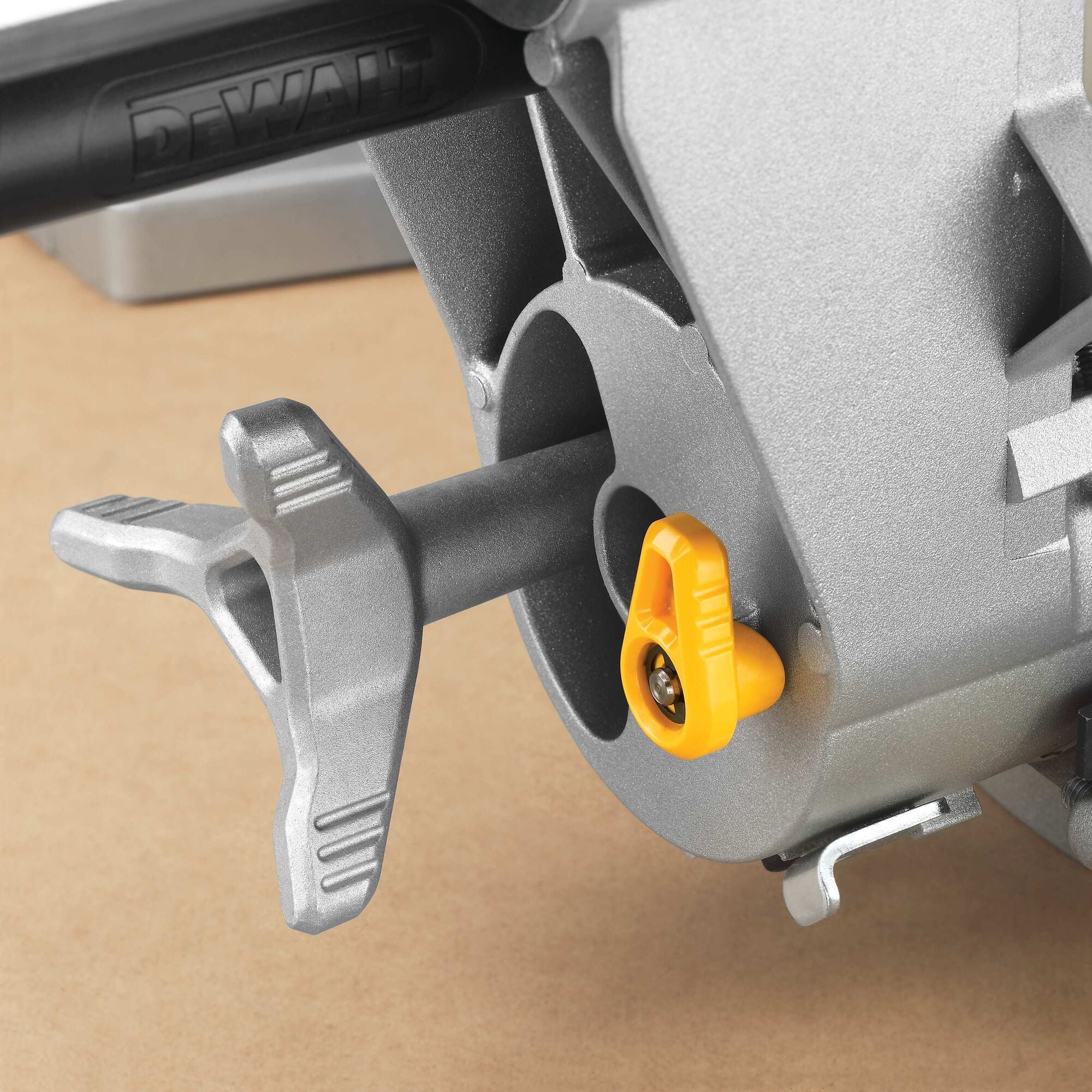

6. CAM LOCK MITRE CONTROL: Makes mitre setting faster and easier, allowing to quickly adjust angles between 0° - 50° left and 0° - 60° right

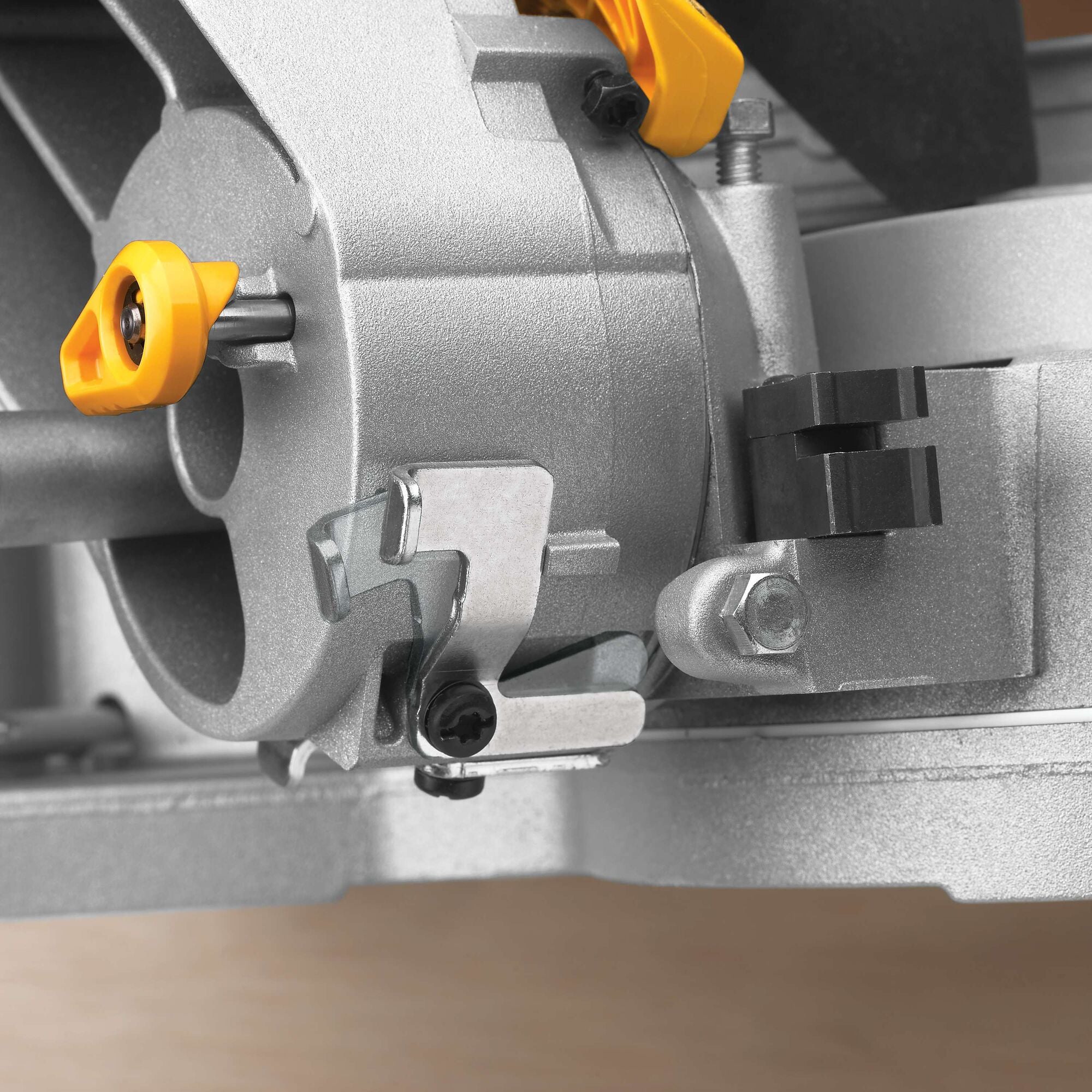

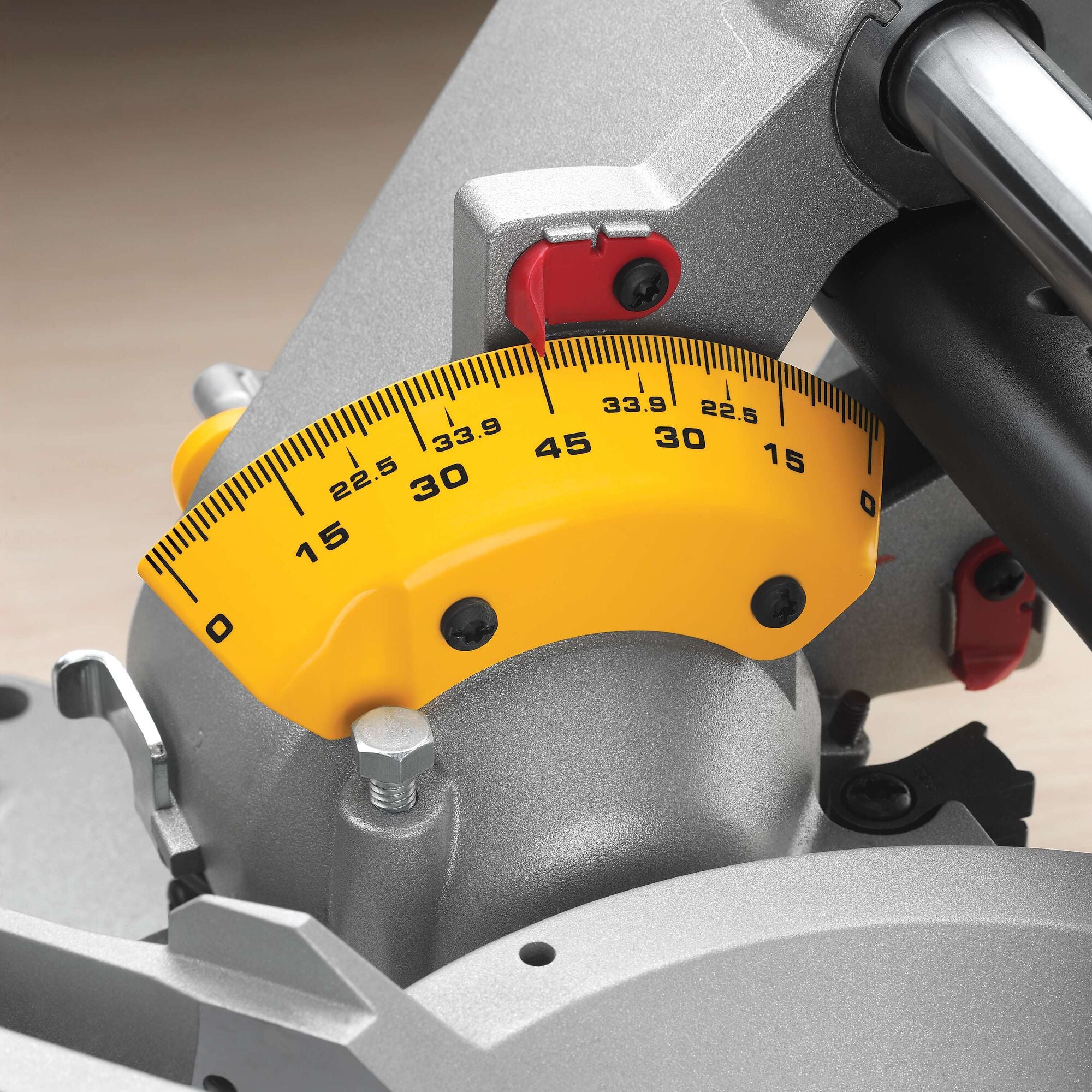

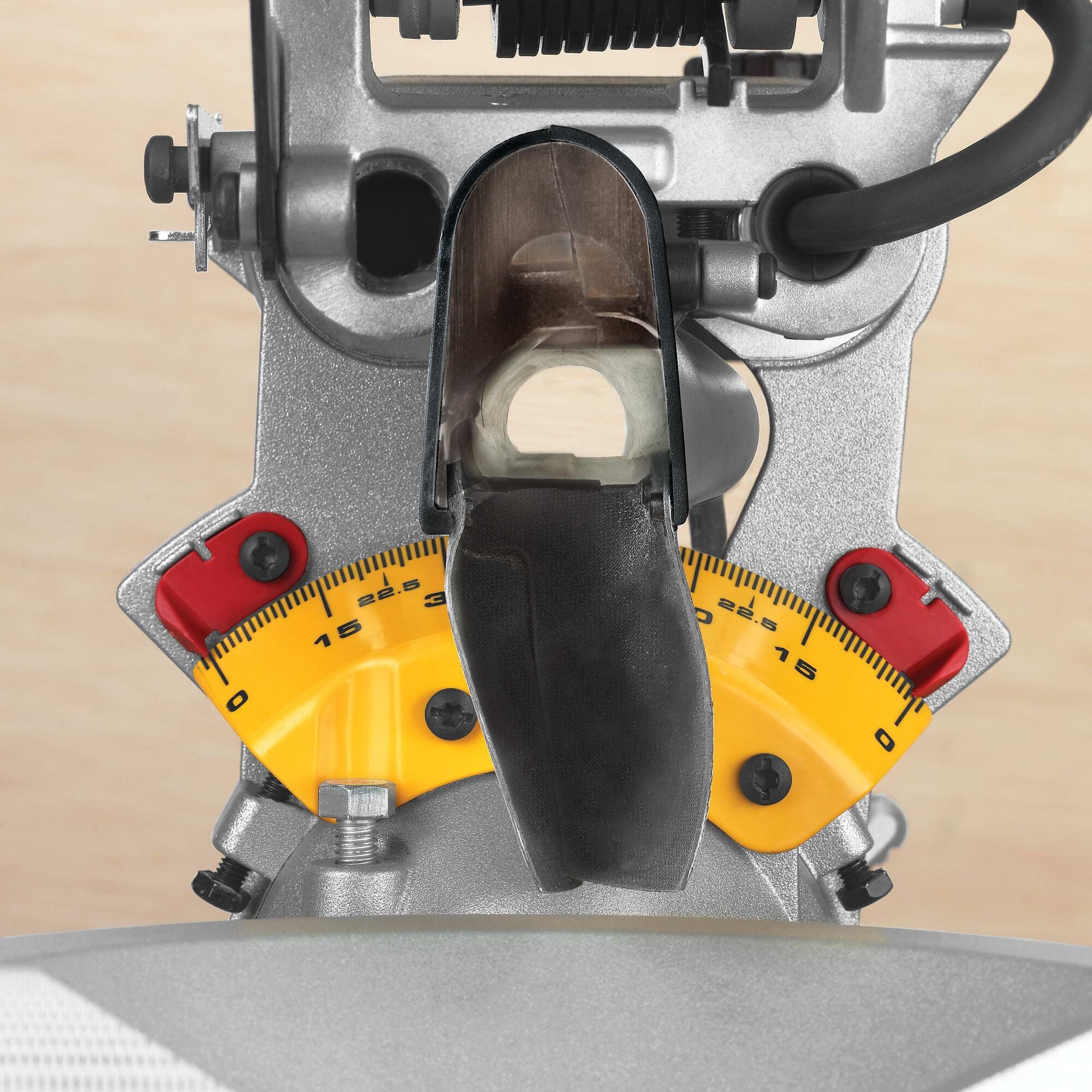

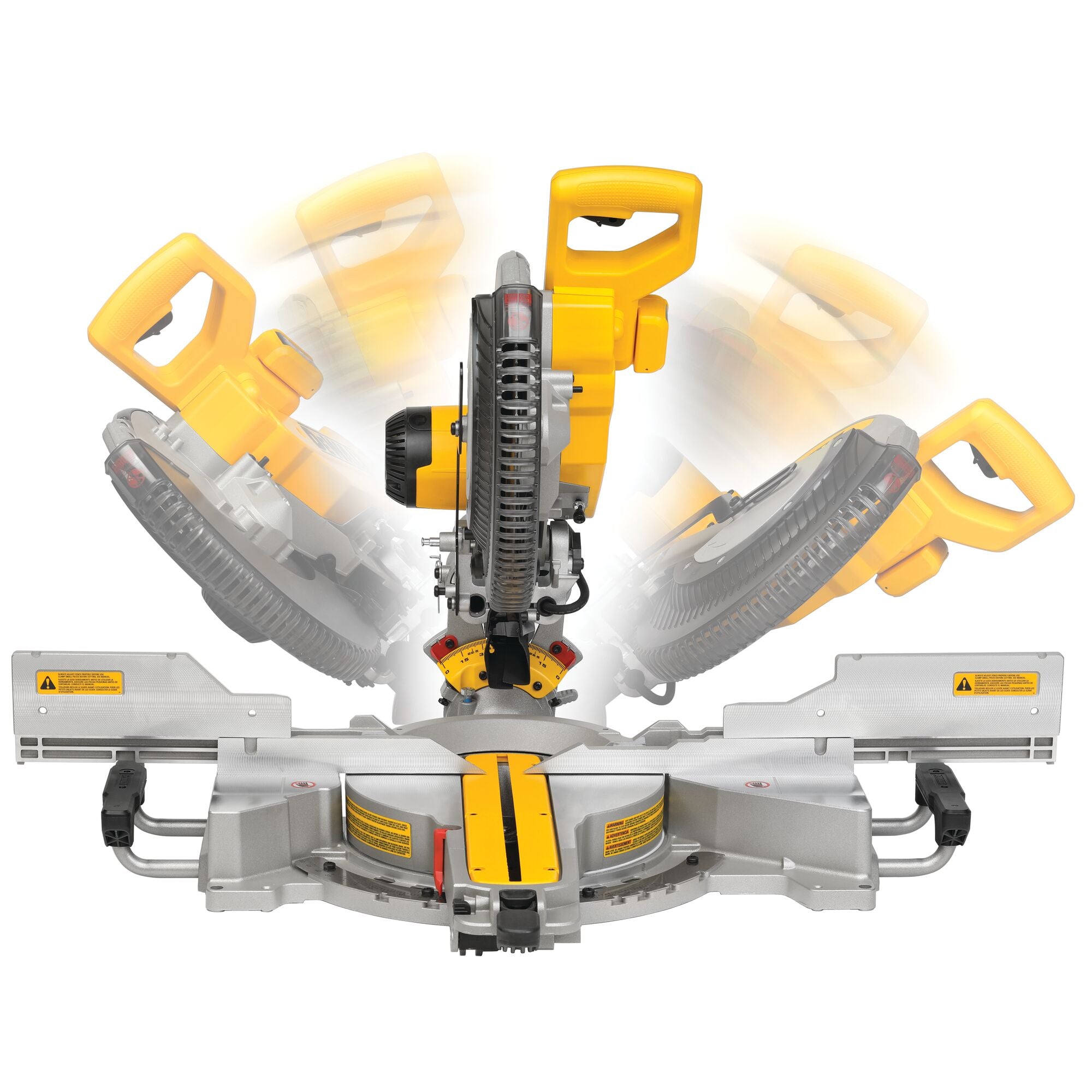

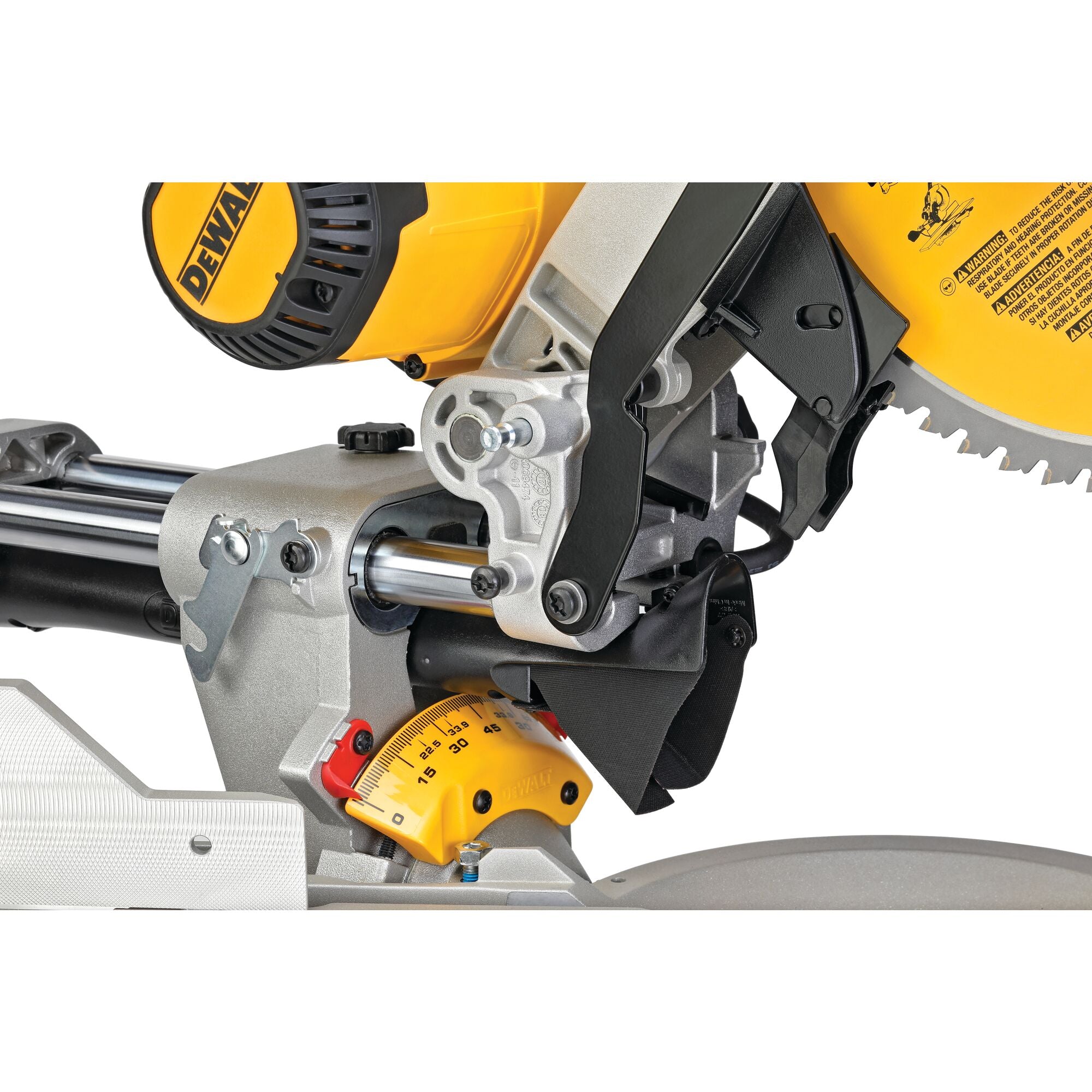

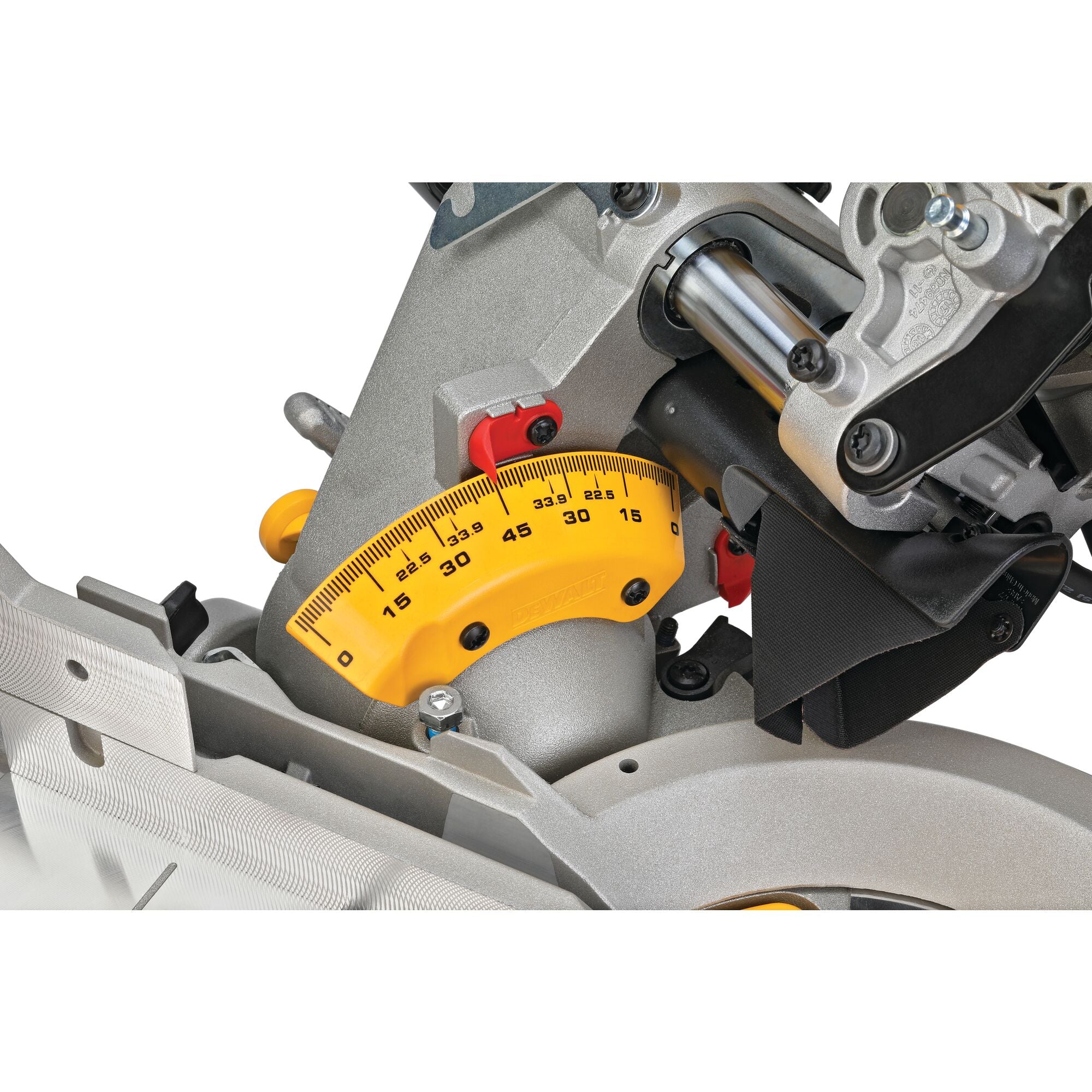

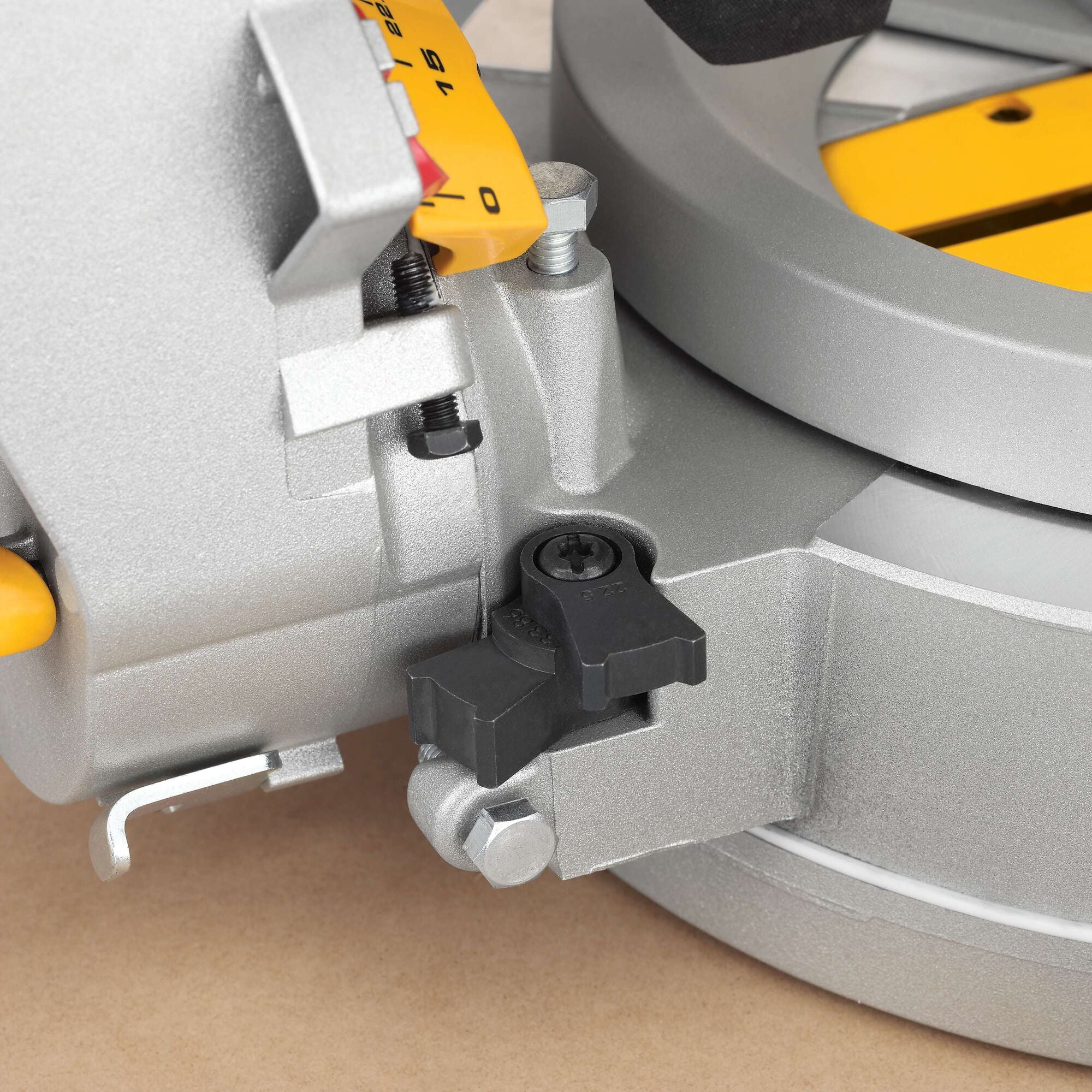

7. DOUBLE BEVEL: Intuitive bevel lock with machined stops provides accurate and simple setting of bevel angles up to 49° left and right

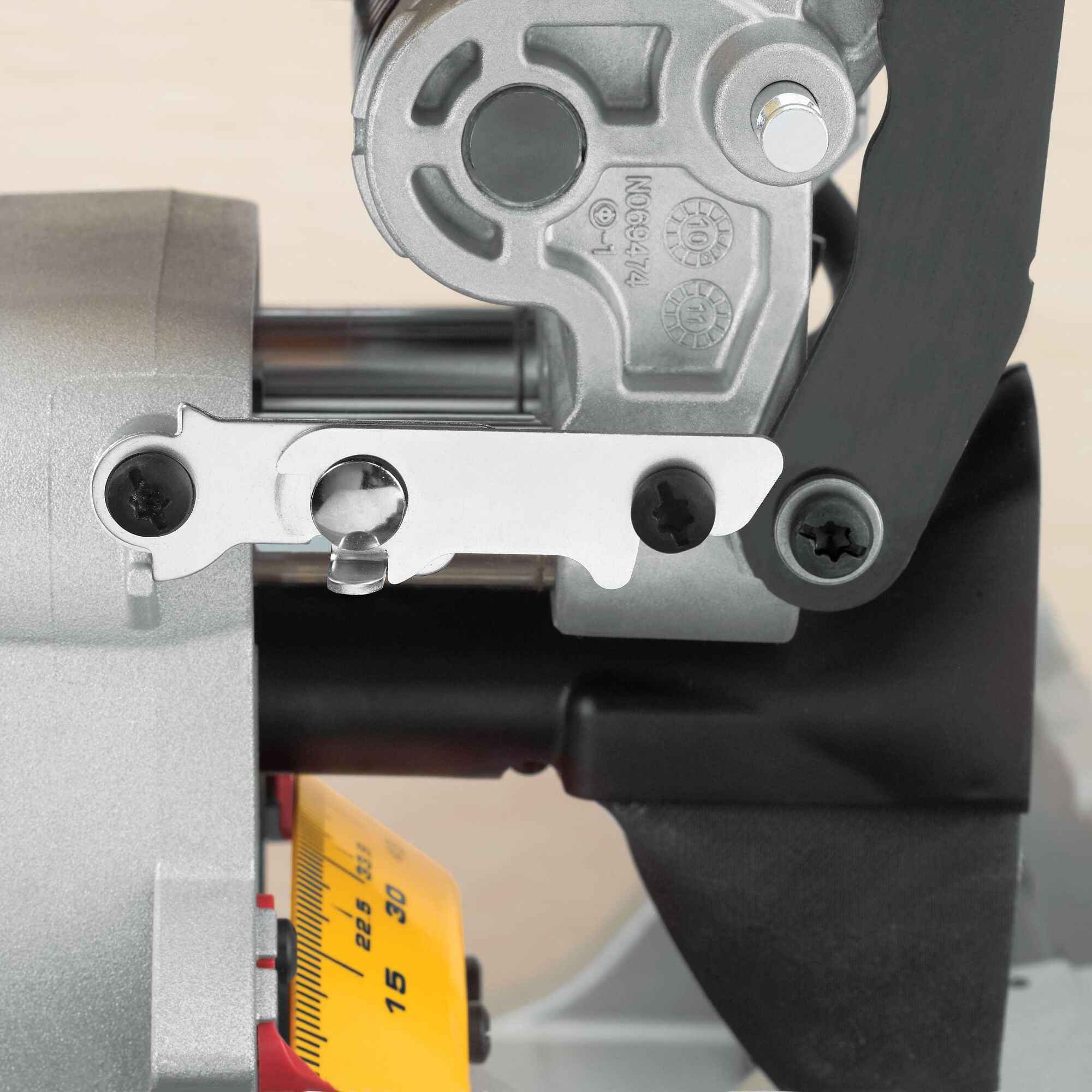

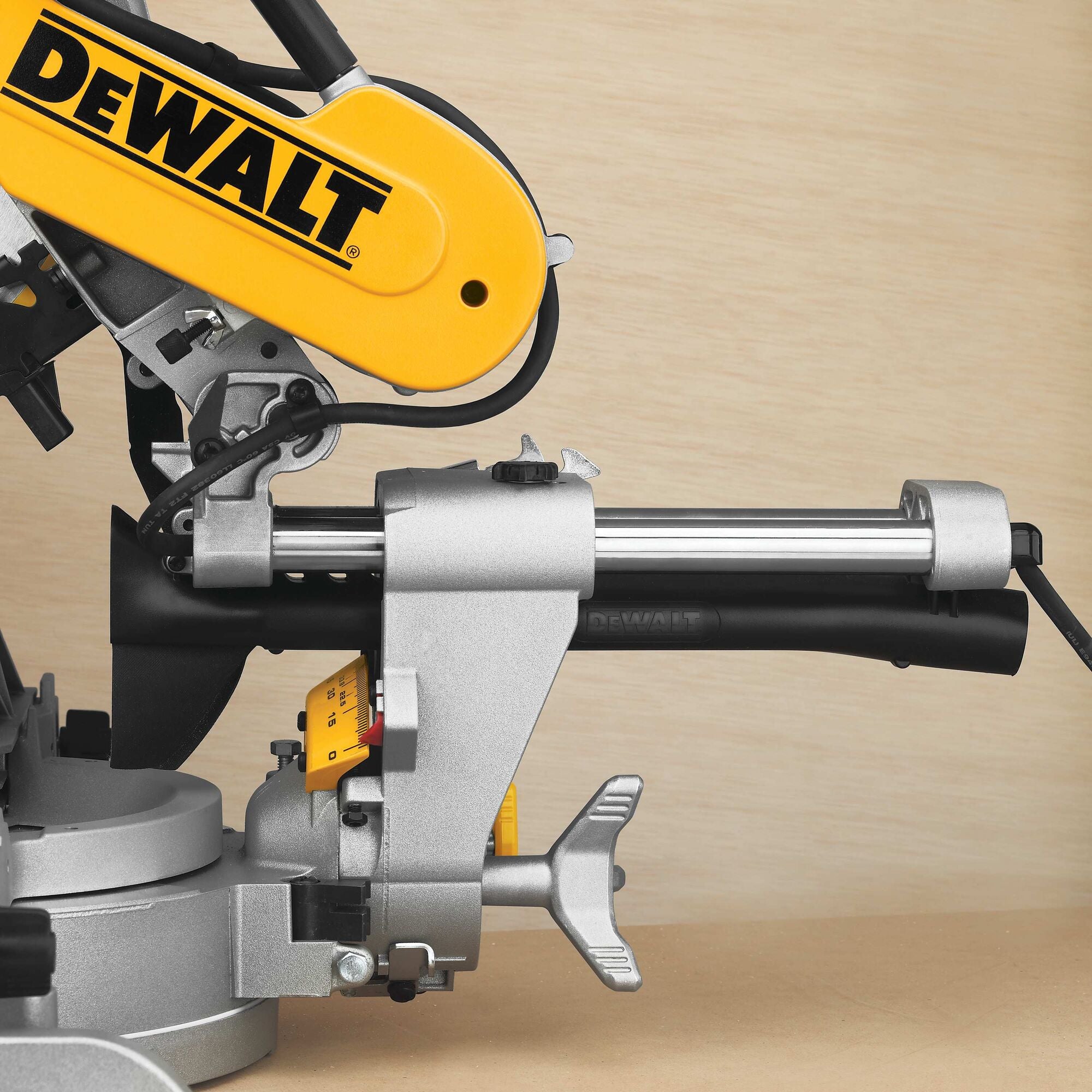

8. DEPTH STOP: Allows the adjustment of the cutting depth for grooving and rebating applications

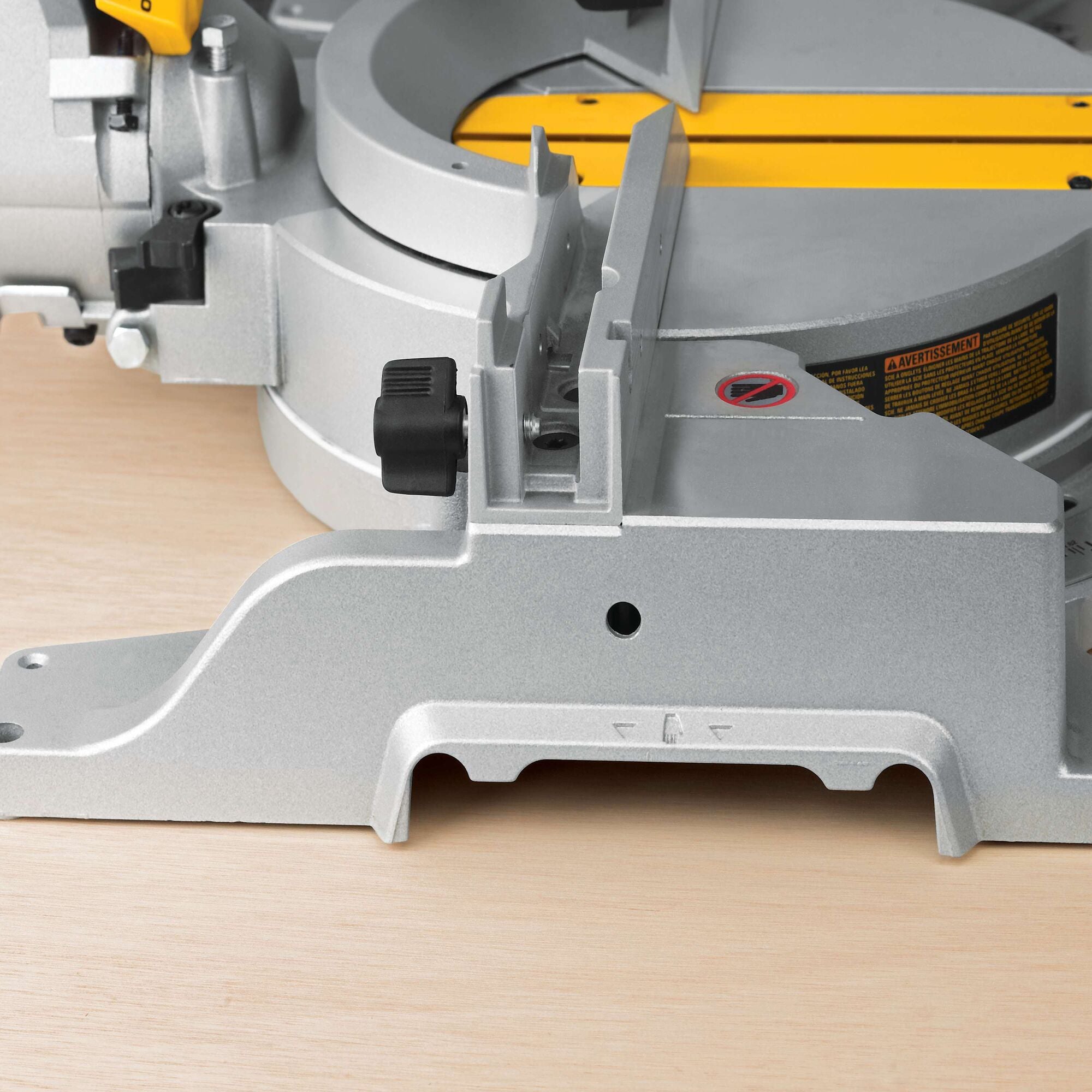

9. MACHINED BASE & FENCE: Designed, machined and checked to the highest standards of accuracy to deliver 0.1° accuracy
10. 3 YEAR GUARANTEE: Tool covered by extended warranty, subject to registration
Applications
Wood Cutting
Tile Cutting
Includes
(1) 305mm Mitre Saw
(2) Base Extensions

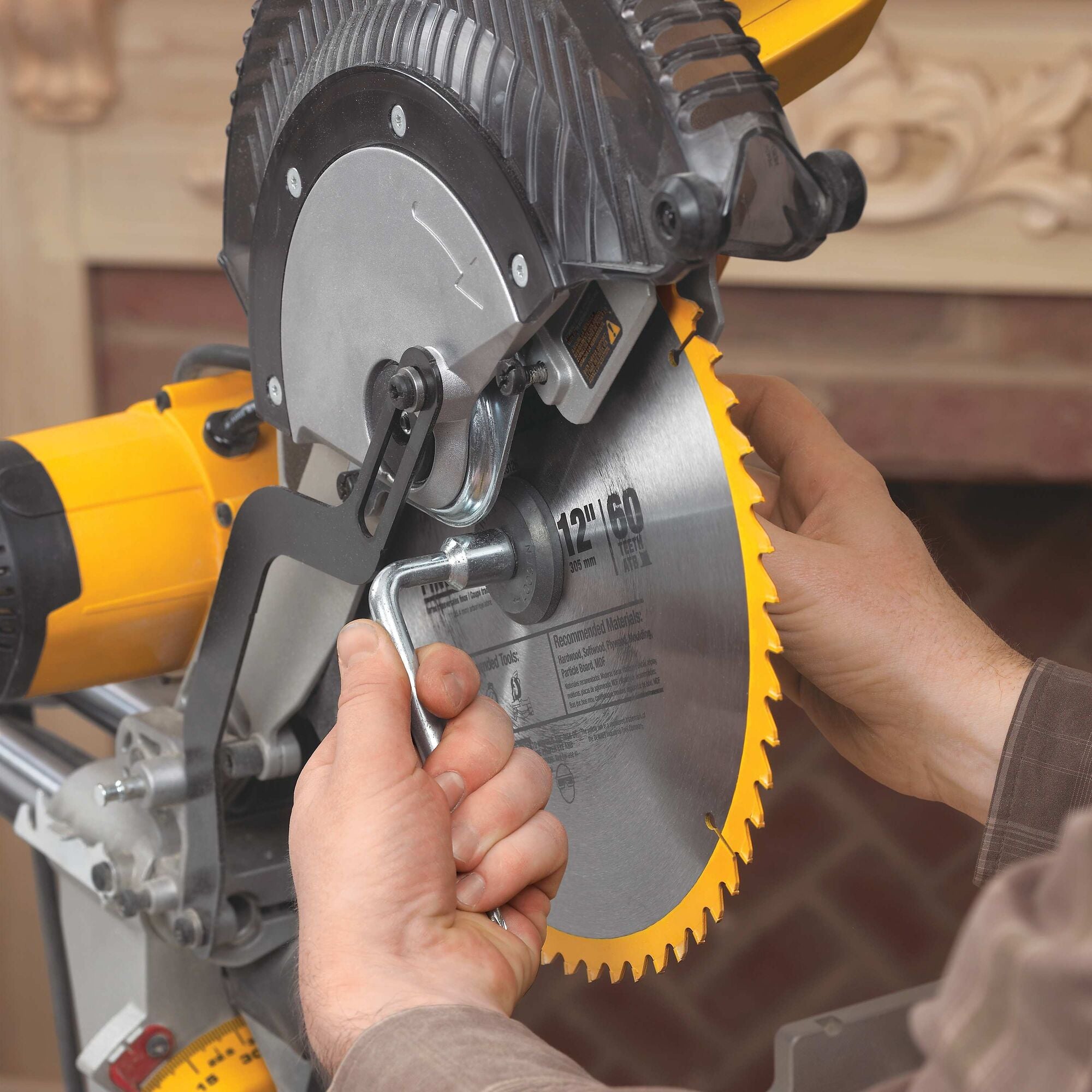

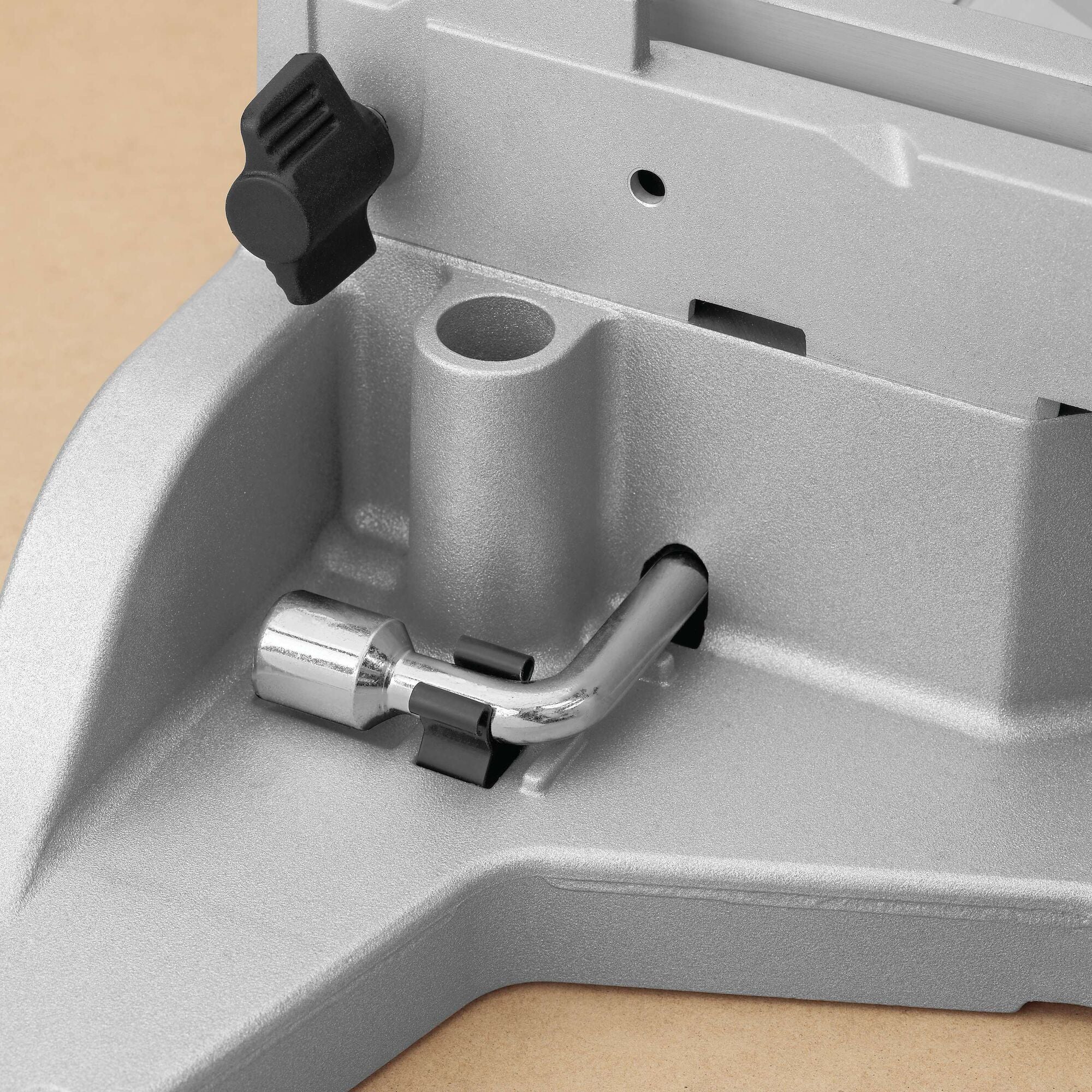

(1) Blade Wrench
(1) 60 Tooth Blade
(1) Dustbag
(1) Material Clamp
