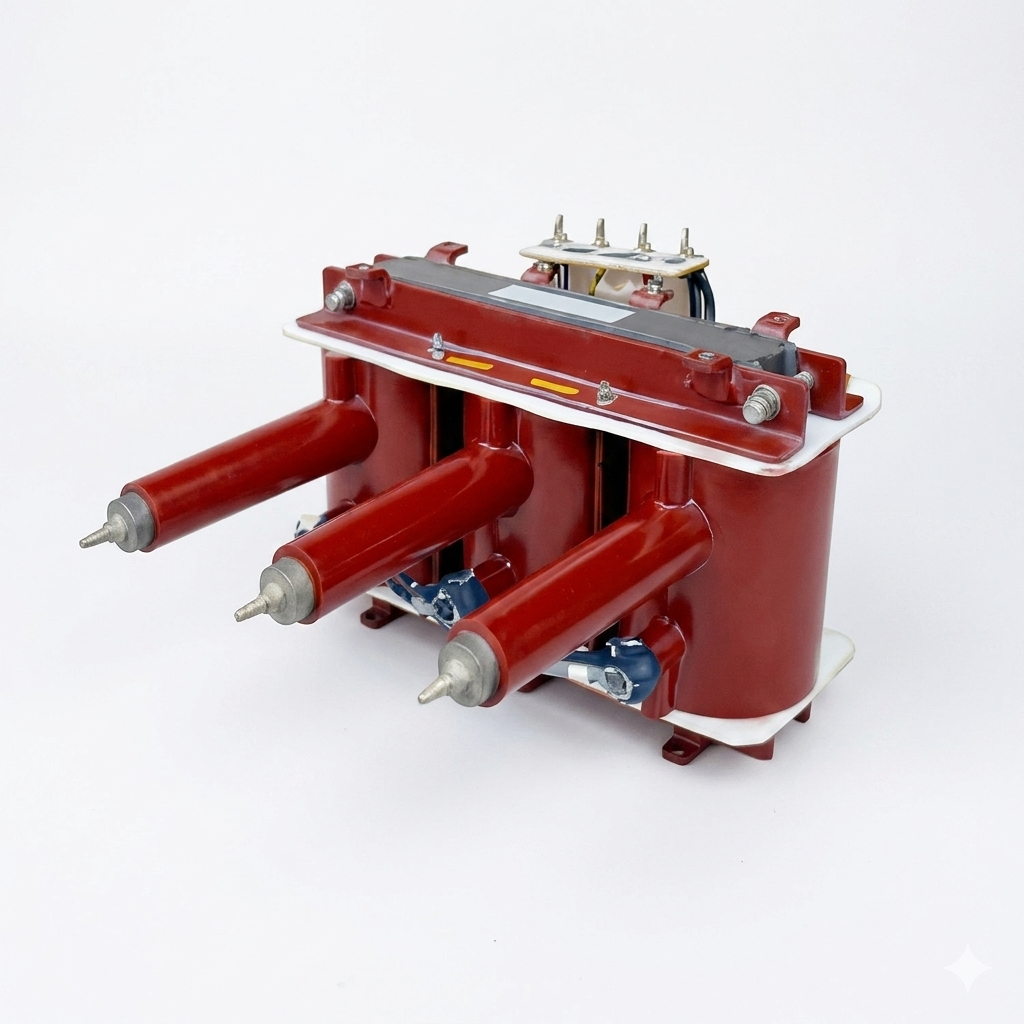

BMC THREE PHASE RESINCAST PT UP TO 12 kV TRANSFORMERS
Regular price
Rs. 100,000.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Technical Descriptions
| Highest System Voltage (HSV) | 12 kV (r.m.s.) |
| Nominal System Voltage | 11 kV |
| Rated Frequency | 50 Hz / 60 Hz |
| Number of Phases | 3-Phase |
| Primary Voltage (VT) | 11 kV or $11/\sqrt{3}$ kV (depending on connection scheme) |
| Secondary Voltage (VT) | 110 V Line-to-Line or $110/\sqrt{3}$ V Line-to-Neutral |
| Connection Type | Star-Star (Wye-Wye) connection standard, secondary neutral brought out |
| Voltage Factor | 1.2 continuous / 1.5 or 1.9 for 30 seconds |
| Insulation Class | Class E or Class F |
| Power Frequency Withstand Voltage (Primary) | 28 kV (r.m.s.) for 1 minute |
| Lightning Impulse Withstand Voltage | 75 kVp (1.2 × 50 µs) |
Product Descriptions
-
Type / Design: Cast Resin, completely encapsulated in Epoxy Resin under vacuum. Non-hygroscopic and flame-retardant formulation.
-
Cooling: Air Natural (AN) / Dry Type.
-
Installation Environment: Indoor base-mounted application.
-
Primary Terminals: Three prominent horizontal primary plug-in/bushing style connections or extended spouts designed to receive high-voltage connections securely while maintaining electrical creepage clearances.
