Baker

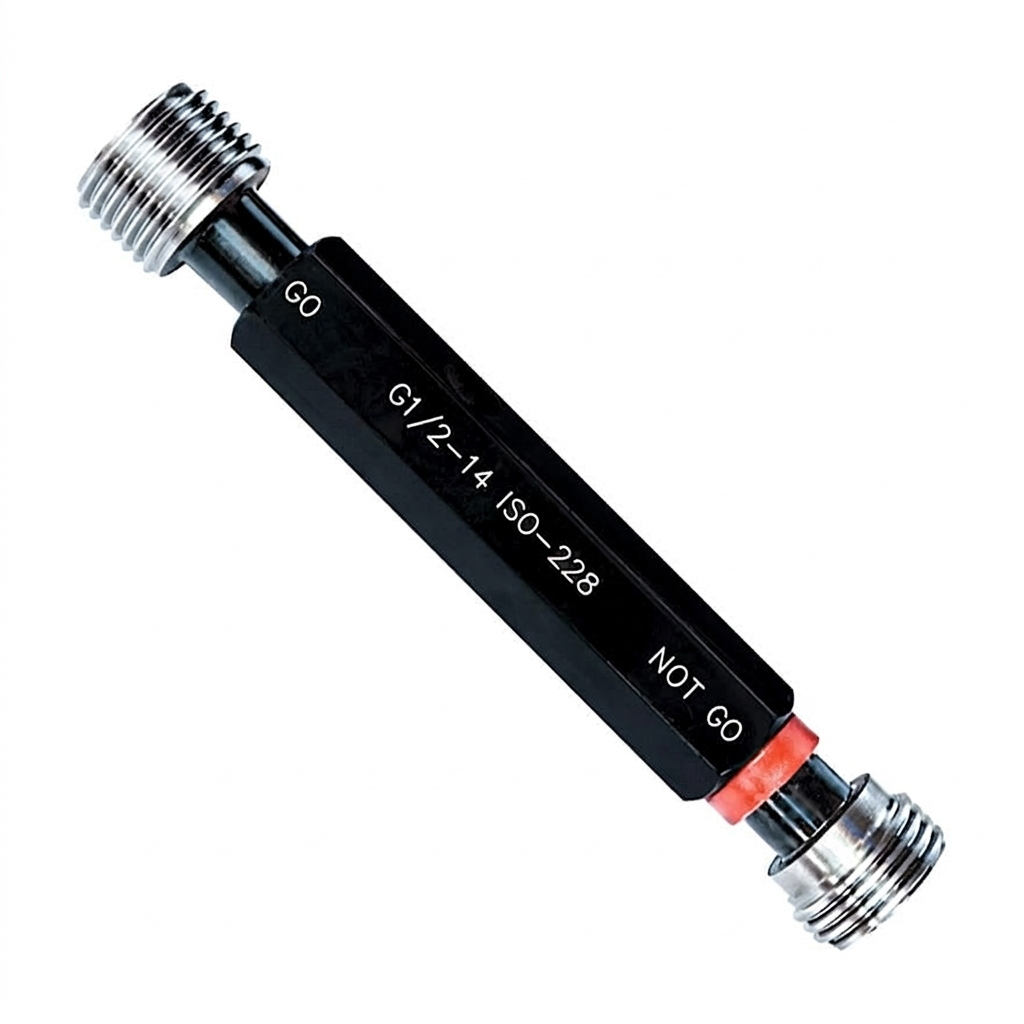

Baker 1/2" BSP TPI 14 ISO Parallel Go and No-Go Thread Plug Gauge

In stock
SKU: Thread Plug Gauge 1/2" BSW
Rs. 2,239.00
Sale Rs. 2,900.00 Rs. 2,239.00
+ 18% GST

BEST OFFERS FOR YOU!

Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.

Technical Details

Brand BAKER
Product Type  BSP Thread Plug Gauge
Hand Type Right Hand
Thread per Inch 14
Diameter 1/2 inch
Standard ISO 228-2:1987
Return Policy Non-Returnable

Product Description

  • These are pipe threads where pressure-tight joints are not made on threads. Gauge dimensions are as per ISO 228-2.
  • The GO gauge when screwed by hand without using excessive force, should enter and pass the whole length of the workpiece thread.
  • The NOT GO gauge when screwed by hand without using excessive force, should not enter the component by more than two turns of the thread from both ends.
