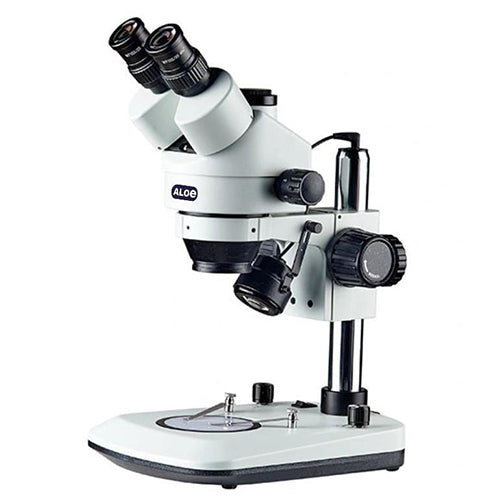

Aloe Tech Trinoculor Stereo Zoon Microscope, ASZ-45T
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
TECHNICAL DESCRIPTION
| Feature | Specification |
|---|---|
| Model Name | ASZ-45T |
| Type | Stereo Zoom Microscope |
| Total Magnification | Standard: 7X-45X, |
| Working Distance | 100mm (Standard), |
| Field of view | 28.6 mm – 4.4 mm |
| Eyepiece | Standard: 10X/20mm, high eyepoint, wide angle, wide field eyepiece, provides convenience for the observer who wearing glasses |
| Optional: 10X/20mm, 15X/15mm, 20X/10mm, 25X/9mm, 30X/8mm | |
| Objective | Zoom Range 0.7X-4.5X (Standard), Zoom Ratio: 6.4:1, ensure parfocality of the image plane |
| Viewing Head | Binocular Tube: with an inclination of 45° for greater ease of observation |
| Binocular Body: can be rotated a full 360° and locked in any position desired | |
| Dioptre Adjustment: +/-5 dioptres | |
| Interpupillary Distance: 54-76mm | |
| Camera Tube for Camera View | |
| Focusing Arm | A1 focusing bracket, handwheel’s tightness is adjustable, lifting range 50mm |
| Illumination | Optional: Fluorescent Ring Light, LED Ring Light, Halogen Lamp is available |
| Trinocular Interface | Fit with three-eye pole and CTV, it can be connected with ordinary camera, digital camera, industrial camera and CCD |
ASZ Series Zoom Stereo Microscope can provide crystal clear sharp images with high resolution and good depth within a broad field of view. Once brought in focus, the image remains clear and sharp throughout the whole zoom range.
Features:
- It comes with standard super wide-field high-eyepoint WF10X/20mm Eyepiece, convenient for operators who wear glasses.
- It is widely used in the electronic industry, educational demonstration, and agricultural research for micro-object observation, inspection, and measurement.
