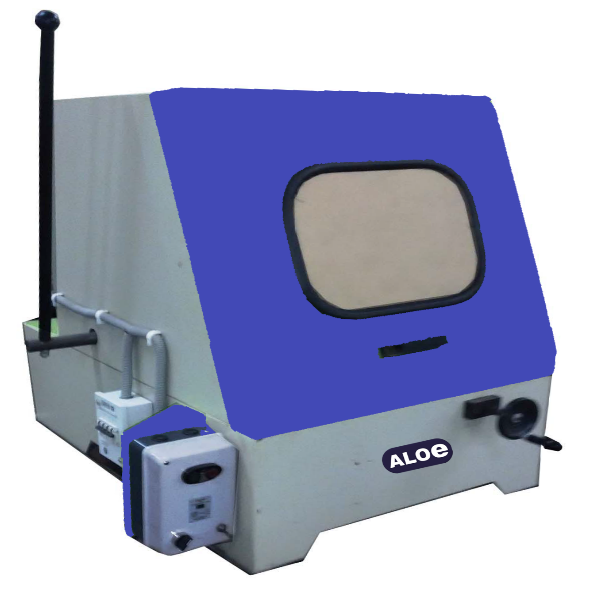

Aloe Tech Metallographic Specimen Manual Cutting Machine, ACM-50
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
TECHNICAL DESCRIPTION
| Feature | Specification |
|---|---|
| Model No. | ACM-50 |
| Cutting Action | By manual Cut-Off wheel Arcs down |
| Cutting Capacity | Up to 50mm |
| Cut-Off Wheel Size | 8” (200mm) ID: 31.5mm, Thickness: 1.5mm |
| Cutting motor Power | 2 HP, 3Phase 420 Volts, 50Hz |
| Abrasive Wheel RPM | 2800 RPM |
| Coolant Motor Power | 0.1 HP 3 Phase |
| Coolant Tank | 25 Ltr. Recirculating Coolant tank inbuilt |
| Cooling | By High flow water jets to provide optimum cooling |
| Table movements | X axis - 100mm Y axis - 120mm |
| Vice | Self-Centring 360 rotation, Jaw Opening 2” |
| Safety Feature | Emergency Stop Switch with Door limit Switch |
| Light in the working area | Fluorescent light in the working area provides safe and clear illumination. |
| Dimensions | 590mm X 950mm X 900mm (approx.) |
| Weight | 110 Kg. (approx.) |
ACM-50 Abrasive Cutting Machine is rugged, sturdy and designed to cut metallurgical samples to optimal quality consistently and safely. Cutting wheel mounted on the spindle to get the optimum output of the motor. The movement of cutting wheel towards the specimen is applied by handle fixed with motor base pivot spindle and the cutter unit is balanced by springs for smooth downward movement. It has cooling system so as to clear up the heat produced during cutting and avoid to burn the metallographic or lithofacies structure of specimen because of heat. This machine features easy operation and reliable safety. It is the necessary specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
