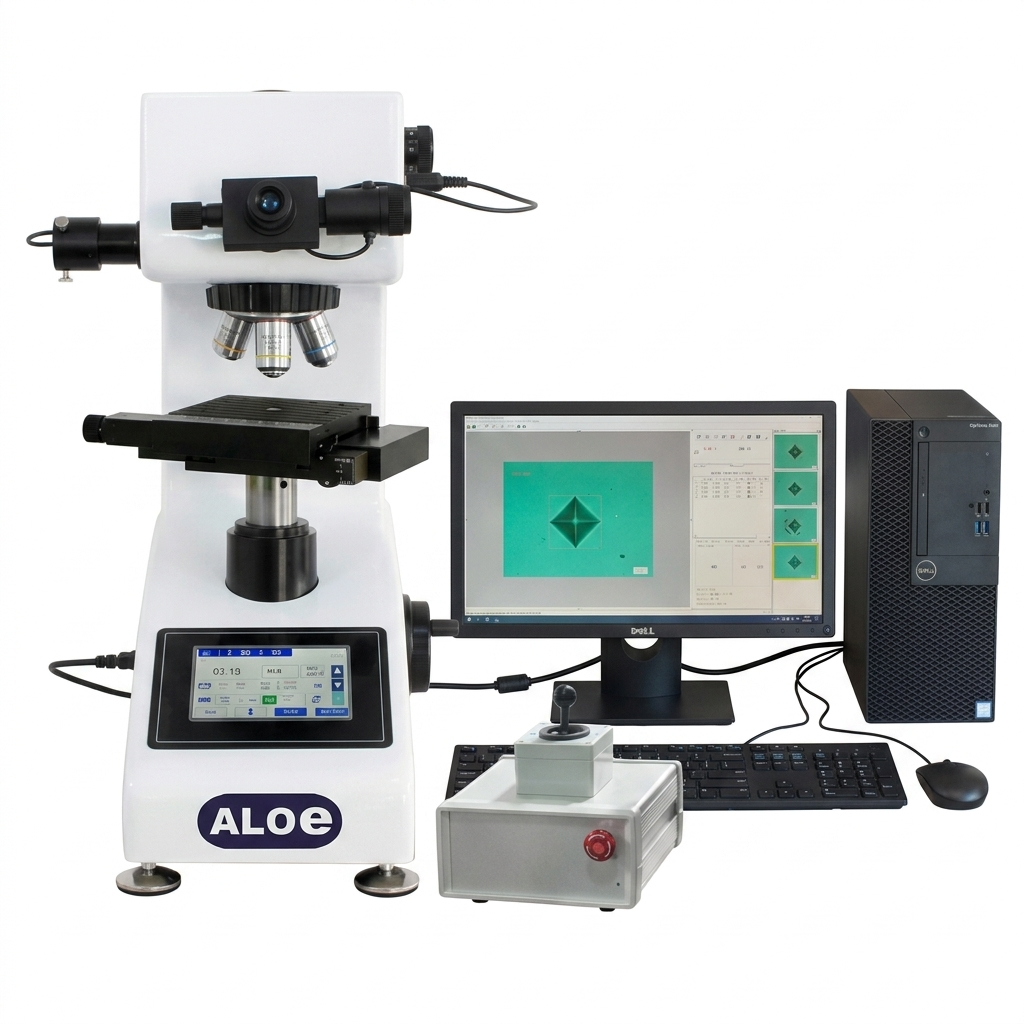

Aloe Tech Fully Automatic Micro-Vickers Hardness Tester, AMVH-1000A-XY
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
TECHNICAL DESCRIPTION
| Model | AMVH-1000A-XY | ||||
| Test Force | gf | 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf, 2000gf | |||
| N | 0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N, 19.61N | ||||
| Test Range | 1HV-2967HV | ||||
| Test Mode | HV/HK | ||||
| Loading Method | Automatic (Loading/Dwell/Unloading) | ||||
| Turret | Automatic Shifting | ||||
| Conversion Scale | HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, | ||||
| HR30N, HR45N, HR15T, HR30T, HR45T, HS, HB | |||||
| Data Output | Built-in Printer; Computer screen (software window) | ||||
| WORD or EXCEL Report with Curve Chart | |||||
| Hardness Reading | Indentation Displaying and Automatic Measuring on PC | ||||
| Focus | By manual | ||||
| Objective | 10X | (Observe), | 40X | (Measure) | |
| Eyepiece | Digital 10X eyepiece with built-in encoder, auto calculate | ||||
| Total Magnification | 100X | , 400X | |||
| Resolution | 0.0625μm, measuring range 200um | ||||
| Dwell Time | 5-99s, each step 1 second | ||||
| Machine display | Touch screen | ||||
| Light Source | LED cold light source (can be continuous use for 24 hours, no heat generated ensures stable working, servicing life can reach 100,000 hours) | ||||
| Max. Height of Specimen | 80mm | ||||
| Throat | 110mm | ||||
| Power Supply | AC220V，50Hz | ||||
| Execute Standard | ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2 | ||||
| Dimension | 215×450×468mm, Packing Dimension: 560×390×810mm | ||||
| Weight | Net Weight: 45kg, Gross Weight: 60kg | ||||
Automatic Digital Micro Vickers Hardness Tester AMVH-1000A-XY
Auto XY control – Auto test – Auto measurement
Key Features:
- Semi-Automation: Manual focus work, focusing done then click of a button, the system starts automatic test and measurement process in indentation, measuring, and hardness curve plotting.
- Motorized XY Sample Stage: System provides a motorized XY sample stage, with XY stage table dimensions 110mmX110mm, travel lengths 50mmX50mm, and position precision 2 µm as standard. It can be controlled by a joystick and by software. Table dimensions and travel lengths can be customized.
- Test Pattern and Path Setup: Sets up test paths with various patterns such as line, line set, arc, gear top parallel, gear center, and matrices, etc;
- Automatic Sample Boundary Scan: Automatically scans along the sample boundary to obtain the sample overview image which is necessary in many test cases to set up test load paths;
- Hardness curve, Statistics, Auto-alarm: Automatically detects and plots multiple hardness curves and calculates the hardness case depths. Automatically updates the statistics such as average, min and max, standard deviation, Cp, and Cpk; Automatically marks data that are out of specification limits; May load the depth template file for
- Conversion, compensation, and validation: Converts HV to other hardness scales, simultaneously; Validates the test results with sample dimensions; Compensates the test results with respect to sample cylindrical/spherical
