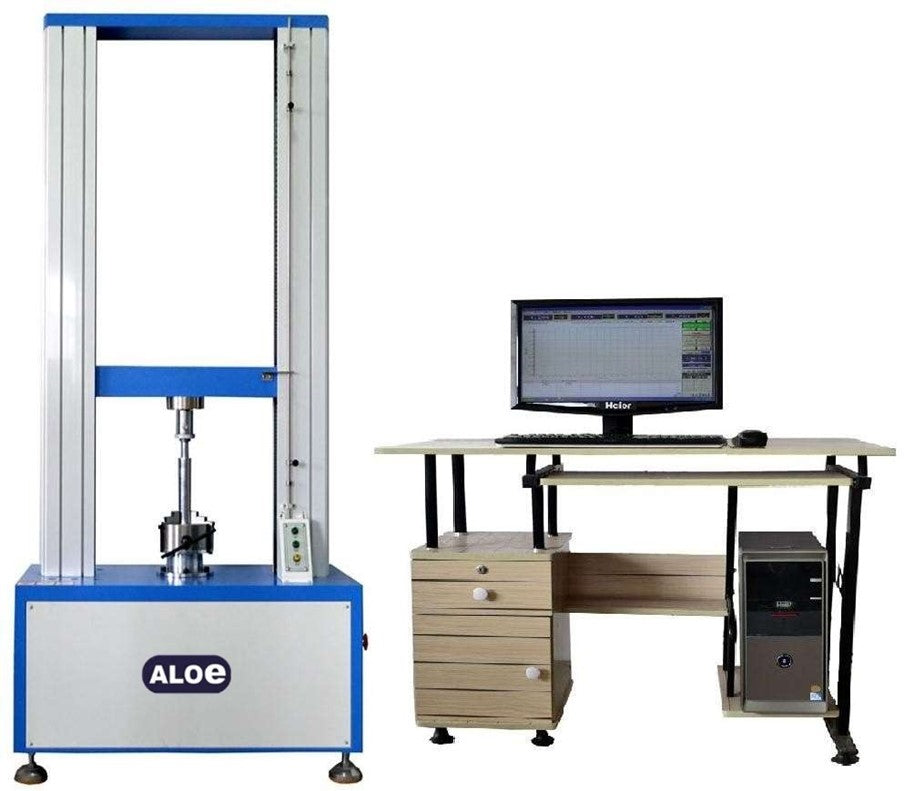

Aloe Tech Digital Tensile Testing Machine
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
TECHNICAL DESCRIPTION
| Feature | Specification |
|---|---|
| Maximum load | 200kg |
| Accuracy class | Level 0.5 |
| Effective force range | 0.4%～100% (level 0.5) |
| Force measurement accuracy | Within ±0.5% of indicated value |
| Testing machine resolution | The maximum load is 1/200000, there is no division between inside
and outside, and the resolution remains unchanged throughout the process |
|
Load cell |
2kN Load Cell
Extended configuration: multiple sensors can be added |
| Effective test width | 400mm (can be widened according to customer requirements) |
| Effective Stretching Space | 800mm (can be increased according to customer requirements) |
| Test speed range | 0.01～500mm/min |
| Displacement measurement accuracy | Within ±0.5% of indicated value |
| Deformation measurement accuracy | Within ±0.5% of the indicated value (large or small deformation can be selected according to customer requirements) |
| Test bench safety device | Electronic limit protection |
| Test bench lifting device | Fast/slow two speed automatic control, jogging possible |
| Bench return function | Manual or automatic two options, automatic or manual return to the initial position of the test at the highest speed after the test |
| Overload protection | 10% more than the maximum load, the machine automatically protects |
| Fixture configuration | A set of tensile fixtures, M5 bar tensile specimen fixtures, three-point bending fixtures |
| Host size | 800*600*2000mm(L*W*H) |
| Power system | Servo motor + high precision ball screw |
| Power supply | 220V/50HZ |
| Power | 1.5KW (according to different force value requirements, different power motors are standard) |
| Host weight | (Approximately) 400 kg |
Feature:
Imported photoelectric encoder is used for displacement measurement, the controller adopts embedded single-chip microcomputer structure, built-in powerful measurement and control software, which integrates measurement, control, calculation and storage functions. It has the function of automatically calculating stress, elongation (extensometer needs to be added), tensile strength and elastic modulus, and automatically counts the results; automatically records the force value or elongation of the maximum point, breaking point, and designated point; uses a computer for testing Dynamic display of the process and test curves, and data processing. After the test, the graph processing module can be used to enlarge the curve for data re-analysis and editing and can print reports. The product performance has reached the internationally advanced level.
