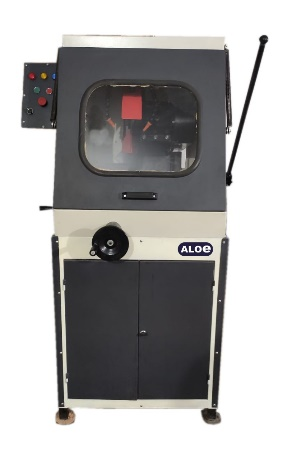

Aloe Tech Floor Typr Specimen Manual Cutting Machine, ACM-100
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
TECHNICAL DESCRIPTION
| Feature | Specification |
|---|---|
| Model No. | ACM-100 |
| Operation | Manual operation by moving motor to the sample. Sample can be moved by lead screw. |
| Cutting Action | By manual Cut-Off wheel Arcs down |
| Cutting Capacity | Up to 100mm |
| Cut-Off Wheel Size | 12” (300mm) |
| Cutting motor Power | 3HP, 3Phase 415 Volts, 50Hz |
| Abrasive Wheel RPM | 2800 RPM |
| Coolant Motor Power | 0.1 HP 3 Phase 2800 RPM |
| Coolant Tank | 50 Litre. Recirculating Coolant tank inbuilt |
| Cooling | By High flow water jets to provide optimum cooling |
| Vice | Self-Centring 360 rotation, Jaw Opening 4” |
| Safety Feature | Emergency Stop Switch with Door limit Switch |
| Light in the working area | Fluorescent light in the working area provides safe and clear illumination. |
| Dimensions | 1400mm X 1050mm X 1700mm (approx.) |
| Weight | 400 Kg. (approx.) |
Our ACM-100 Metallographic specimen cutting machine can be used to cut various metal and non-metal materials to get specimen and observe the metallographic or lithofacies structure. It has cooling system to clear up the heat produced during cutting and avoid burning the metallographic or lithofacies structure of specimen because of heat. This machine features easy operation and reliable safety. It is the necessary specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
